Machine vision has depended for decades on cameras that capture complete images at fixed intervals. Event-based vision sensors follow a different rule. Each pixel reports the moment when brightness changes at its location, producing a stream of timestamped signals that describe motion in a scene as it occurs.

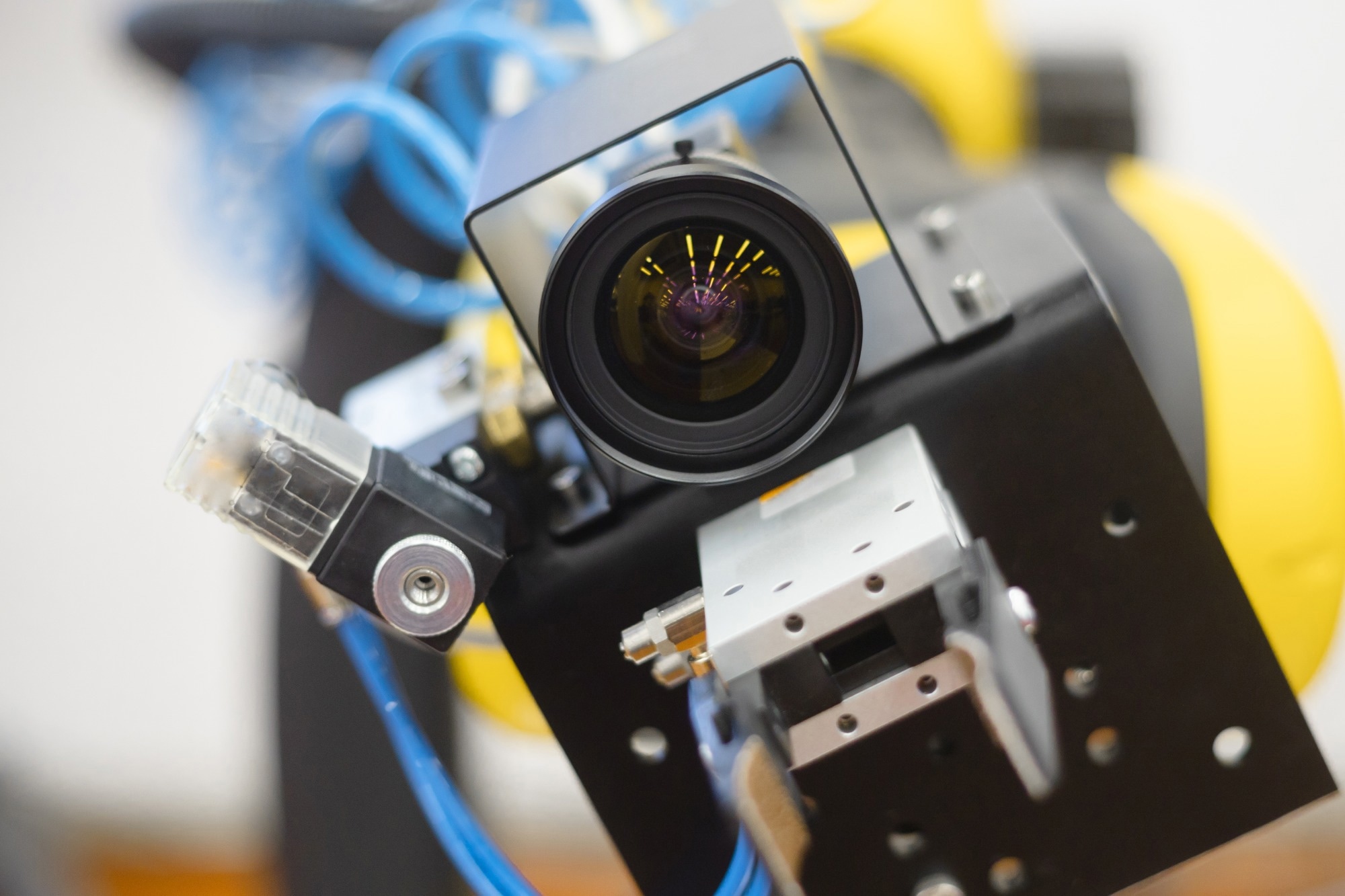

Image Credit: ya_create/Shutterstock
The design borrows from biology, since retinal cells fire when light shifts rather than on a clock. Engineers built that behavior into silicon devices known as dynamic vision sensors. The approach suits inspection lines, drones, and vehicles where rapid movement and awkward lighting defeat conventional frame cameras.1,2
How does the sensor record a scene?
Every pixel converts incoming photons into a voltage and compares that voltage against a stored reference value. Once the logarithmic difference crosses a preset threshold, the pixel emits a small record holding its coordinates, the time of the change, and the direction of the change.1
That record is an event, and its polarity marks whether light grew stronger or weaker at that spot. Pixels act independently without waiting for a shared exposure window, so output arrives as a continuous asynchronous stream instead of an ordered sequence of pictures.2
Motionless parts of a view stay silent. A wall, a conveyor rail, or an empty background produces nothing until something crosses it, keeping event data sparse and tying the volume of output to the amount of activity in front of the lens.3
Sensor formats have grown considerably since the early research devices. A 128X128-pixel array with 120 dB of range and 15 μs latency marked the field in its first phase, and current commercial units, such as the Prophesee EVK4-HD, supply 1280X720 pixels for demanding applications.2
Timing that reshapes control loops
Commercial event cameras report changes with typical latency near 220 μs, and some published models list figures below 100 μs. Temporal resolution on certain devices reaches 1 μs, providing an effective sampling rate above 10,000 fps.1
Faster reporting widens what a machine can attempt. Quadrotors equipped with event cameras have dodged moving obstacles with a 3.5 ms reaction, and a flapping-wing aircraft responded in under 1 ms, well within the tens of ms typical of frame-based drone perception.2
Sharp timestamps also suppress motion blur, because no pixel integrates light over a long exposure while an object travels across the frame. Vibration measurement, particle tracking, and high-speed counting of parts gain accuracy from that clean temporal record.1
Working in light that defeats frame cameras
The dynamic range clearly distinguishes between the two sensor families. Event devices exceed 120 dB, with some models reported to reach up to 140 dB in various literature. In contrast, high-quality frame cameras typically have a dynamic range that caps around 95 dB, while many industrial units are closer to 60 dB.1,2
The logarithmic pixel response clarifies this gap. Each pixel adjusts to the local illumination it detects, allowing a bright window and a shadowed aisle to be captured in a single recording without experiencing saturation or loss of detail. The published low-light cutoff of 0.08 lux enables operation in near darkness.1
Driving shows the practical value of that behavior. A vehicle leaving a tunnel floods a conventional sensor with light and washes out surrounding detail, while event pixels follow the transition because they measure relative change at each position.3
Measured gains in navigation and tracking
Quantified results support the shift toward this sensing method. Event-based visual odometry has produced roughly 0.8 degrees of rotation error and a translation error of close to 2%, while one event-driven pipeline lowered position error by as much as 80% in high-speed scenes.2
Tracking under difficult illumination improves similarly. Trials with high-speed drones recorded up to 39.3% higher tracking accuracy when event data supported the estimator, and a spiking detection model steered a platform clear of obstacles closing in at 8 m/s within 0.2 seconds.2
Dedicated silicon is being developed to handle these workloads. A mixed-signal neuromorphic mapping accelerator has reported between 7.25 and 8.79 tera-operations per watt, an efficiency level suitable for machines with limited batteries and minimal space for cooling hardware.2
Sparse output and modest power budgets
Bandwidth savings follow directly from the sensing rule. Unchanged pixels do not transmit information, eliminating redundancy from conventional video. This reduction allows downstream processors to receive a smaller data payload while tracking the same movement.2
Saving this for later? Download a PDF here.
Fieldwork demonstrates the payoff. An insect monitoring trap built around a dynamic vision sensor detected presence at more than forty times real time, correctly classified 73% of images, reached 76% with parameters tuned per scene, and reduced storage, energy, and manual labor compared with color-based sensing.4
System-level power figures look favorable as well. A fully neuromorphic drone ran perception and control together at 200 Hz while drawing roughly 0.94 W for inference and between 7-12 mW for learning performed onboard during flight.2
Software written for streams
Established vision algorithms expect a grid of pixel values, so event data usually passes through a representation step first. Researchers group events into short histograms, and one optical flow study found 9 ms windows to be more accurate than either 4.5 ms or 18 ms alternatives.3
Spiking neural networks fit the data more naturally. Their computation scales with spike activity, which remains sparse, and on Intel Loihi hardware, such networks proved 65 to 135 times more energy-efficient than conventional networks on a modern accelerator while conceding 6-10% in defect classification scores.2
Validation at scale is becoming possible too. The insect study annotated 81,104 stereo frames containing 34,453 insect appearances, and then showed that its event-driven detector outperformed two established deep learning algorithms in both detection quality and computational speed.4
Automated visual inspection now draws on this line of work. Fraunhofer researchers assessed current processing algorithms for inspection tasks and proposed a method to identify the most informative time window within an event stream before a part is classified.5
Constraints and the road ahead
Event pixels record changes and omit absolute brightness, so any task that relies on texture, color, or exact gray levels still calls for a frame sensor working alongside it. Most event cameras discard color information, and their spatial resolution has trailed that of standard imagers.3
Manufacturing advances are closing those gaps. Back-illuminated pixel structures, wafer-stacking techniques, and industrial interfaces have reduced noise, increased resolution, and increased readout rates. It improves compatibility with vision systems already installed in factories and with edge deployments.1
High event rates create pressure of their own, with one reported bottleneck near 0.97 million events per second calling for optimized code and specialized processors. Hybrid rigs that pair an event sensor with a frame camera indicate how machine vision will absorb this technology over the coming years.2
References and Further Reading
- Chakravarthi, B. et al. (2024). Recent Event Camera Innovations: A Survey. Computer Vision – ECCV 2024 Workshops, Springer-Verlag. DOI:10.1007/978-3-031-92460-6_21. https://arxiv.org/html/2408.13627v2
- Akanbi, I., & Ayomoh, M. (2025). Event-Based Vision Application on Autonomous Unmanned Aerial Vehicle: A Systematic Review of Prospects and Challenges. Sensors, 26(1). DOI:10.3390/s26010081. https://www.mdpi.com/1424-8220/26/1/81
- Cuadrado, J. et al. (2023). Optical flow estimation from event-based cameras and spiking neural networks. Frontiers in Neuroscience, 17, 1160034. DOI:10.3389/fnins.2023.1160034. https://www.frontiersin.org/journals/neuroscience/articles/10.3389/fnins.2023.1160034/full
- Gebauer, E. et al. (2024). Towards a Dynamic Vision Sensor-based Insect Camera Trap. 2024 IEEE/CVF Winter Conference on Applications of Computer Vision (WACV). DOI:10.1109/WACV57701.2024.00700. https://ieeexplore.ieee.org/document/10483831/
- Beck, M. et al. (2021). An Extended Modular Processing Pipeline for Event-Based Vision in Automatic Visual Inspection. Sensors, 21(18). DOI:10.3390/s21186143. https://www.mdpi.com/1424-8220/21/18/6143
