*Important notice: This news reports on an unedited version of the paper which has been accepted. and is awaiting final editing. Scientific Reports sometimes publishes preliminary scientific reports that are not fully edited and, therefore, should not be regarded as conclusive or treated as established information.
Optimized laser cladding parameters enhance microstructure and corrosion resistance of Inconel coatings. This optics-driven process controls melt pool dynamics to produce defect-free, durable steel surfaces.

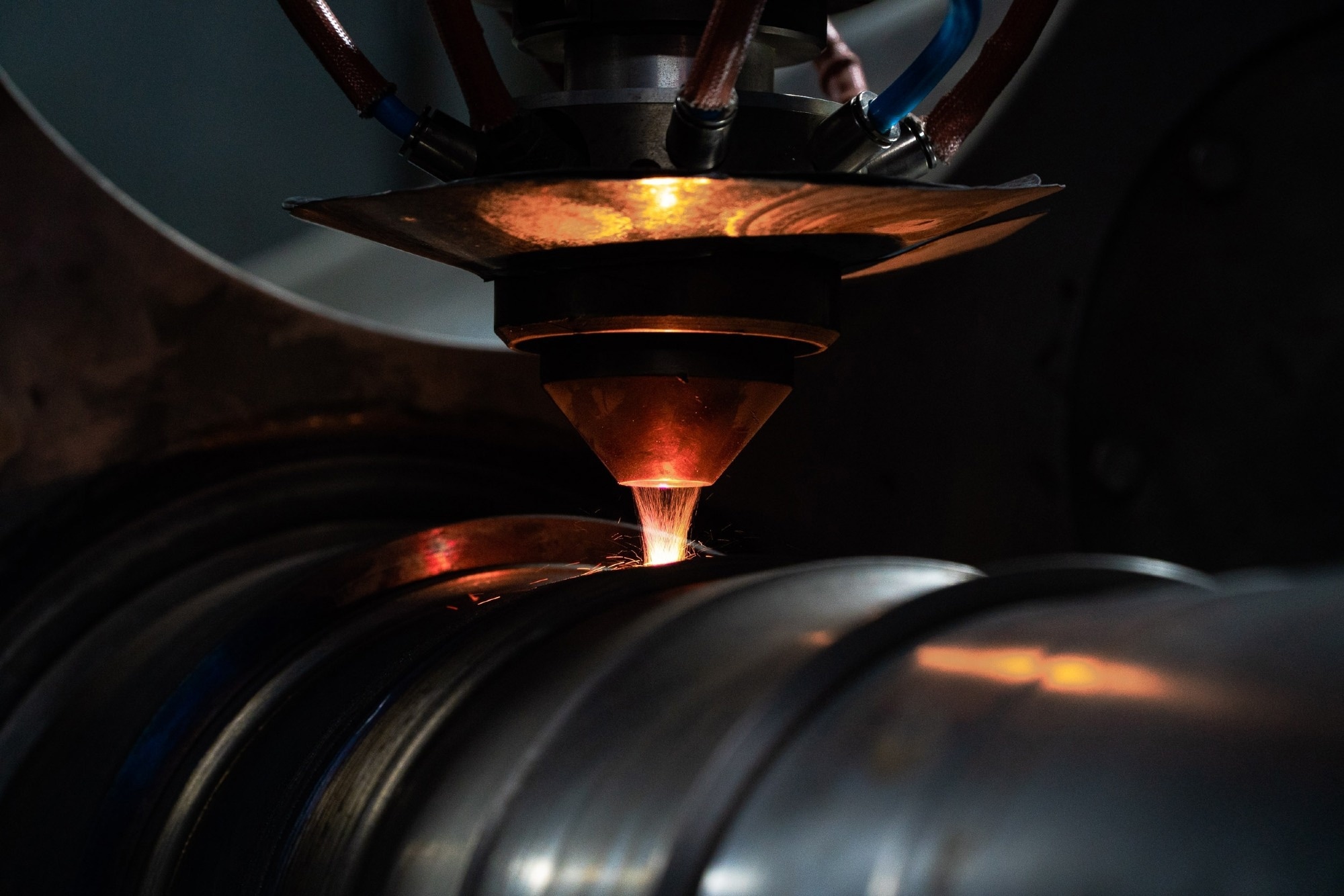

Study: Optimization of inconel 625 laser cladding on X65 steel via response surface methodology. Image Credit: Rodolfo Possato/Shutterstock
In a recent article published in the journal Scientific Reports, researchers systematically optimized the laser cladding process of Inconel 625 on API 5L X65 carbon steel using response surface methodology (RSM) to achieve precise control of cladding thickness and interfacial martensite layer, thereby enhancing corrosion resistance and mechanical reliability for marine pipeline applications.
Optical Focus of Laser Cladding Challenges
Inconel 625 is a nickel-based superalloy well-regarded for its corrosion resistance due to alloying elements like chromium and molybdenum. Laser cladding offers advantages over traditional surface treatments, such as tight control over composition and microstructure through precise laser energy input. The laser system used emits in the near-infrared range (1075–1085 nm), enabling deep penetration and efficient energy absorption by the metallic substrate.
Optical parameters, including laser power and beam diameter, dictate heat input and thereby affect melt-pool convection, solidification rates, and grain structures. Studies have shown that improper optical control can lead to defects such as cracks and porosity arising from uneven melt-pool dynamics and temperature gradients. This work addresses these challenges by integrating optics with statistical optimization to control the complex physical phenomena governing cladding quality.
Laser System Setup and Experimental Design
A laser cladding system equipped with a fiber laser emitting at 1075–1085 nm and capable of up to 3000 W of output power was used to deposit Inconel 625 powder onto API 5L X65 steel substrates. The laser spot size was maintained at 3 mm × 3 mm with a standoff distance of 7.5 mm between the cladding head and substrate surface.
A PF330 intelligent powder feeder delivered Inconel 625 powder, ranging in particle size from 53 to 150 μm, at controlled feeding rates. Shielding gas at 30 L/min and carrier gas at 2.6 L/min protected the melt pool. Before coating, the X65 steel pipes underwent precision alignment on a rotating platform to ensure uniform deposition thickness.
The study adopted the Box-Behnken response surface methodology to efficiently investigate the influence of three main process parameters: laser power (1600–2000 W), scanning speed (1100–1400 mm/min), and powder feeding rate (0.3–0.5 r/min). This design reduced experimental runs while capturing interaction effects.
Thickness measurements of the clad layers were performed using an electromagnetic induction-based DR6000 gauge, calibrated with zero and multi-point standards to distinguish between the magnetic steel substrate and the non-magnetic Inconel coating. Surface pretreatment included mechanical cleaning and ultrasonic oil removal to enhance metallurgical bonding.
Melt Pool and Microstructure
Response surface modeling revealed that laser power critically governs the melt pool temperature distribution and solidification kinetics. At lower laser power settings (e.g., 1600 W), insufficient energy yields a predominantly powder-feed-rate-controlled thickness with poor fluidity, leading to defects.
Increasing laser power to around 1800–1910 W optimizes the thermal field within the melt pool, enhancing Marangoni convection driven by surface tension gradients, which homogenizes temperature and composition. This optical effect fosters fine dendritic microstructures and controls the martensite layer thickness at the interface to an optimal 50–60 microns, preventing residual stress accumulation.
Three-dimensional response surface graphs illustrate the interplay between laser power and scanning speed, impacting cladding thickness and morphology. At high laser powers (near 2000 W), although heat input is abundant, excessive thermal gradients risk coarsening grains and thickening brittle interfacial layers that promote cracking. The precise adjustment of optical power distribution helped maintain a stable melt pool lifetime, balancing heat input and dissipation.
SEM images show a transition from planar solidification at the fusion line to cellular dendritic growth within the cladding zone. The high cooling rates afforded by optimized optical parameters promote fine microstructures associated with superior mechanical and corrosion resistance.
Additionally, the interplay of beam energy and scanning speed modulates the kinetics of element diffusion, critical for interface stability between the non-magnetic Inconel coating and magnetic X65 steel substrate. The controlled optical parameters prevented defects such as lack of fusion or porosity, confirming the viability of the process window defined by the optical optimization.
Optimized Optical Control
This study demonstrates that the optical characteristics of the laser beam, particularly power and focal control, are decisive factors in producing high-quality Inconel 625 claddings on X65 steel via laser cladding.
Download the PDF of this page here
The established parameter window (around 1910 W power, 1365 mm/min scanning speed) yields a 1 mm-thick cladding with a uniform microstructure, minimal defects, and consistent interface bonding. Integrating precise optical control with feedback from thickness and microstructural sensors enables fine regulation of melt-pool thermodynamics and solidification behavior.
This synergy suppresses cracking and porosity by stabilizing Marangoni convection and controlling heat transfer during solidification. Consequently, the study provides a robust framework for scalable, automated laser cladding processes for pipeline remanufacturing, where optical system tuning plays a pivotal role in performance and durability in severe service conditions.
Journal Reference
Zhang Z., Pan Y., et al. (2026). Optimization of inconel 625 laser cladding on X65 steel via response surface methodology. Scientific Reports. DOI: 10.1038/s41598-026-51405-1, https://www.nature.com/articles/s41598-026-51405-1
