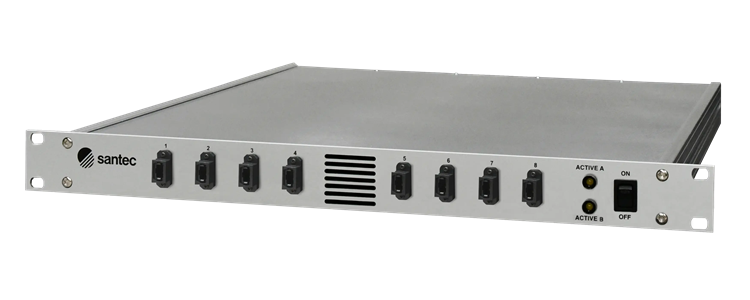

The MPA-200 is a rack-mountable, multi-channel Optical Power Monitor specifically engineered for high-density environments such as data centers, telecommunications facilities, and optical interconnect systems. Its compact 1U x 19-inch chassis provides a space-efficient solution for simultaneously tracking the optical power of up to 64 channels.
Equipped with MPO/MTP multi-fiber connectors, the MPA-200 can detect and analyze multiple optical signals. This capability makes it an essential tool for verifying and monitoring 40 GbE and 100 GbE optical transmission hardware and transceivers commonly deployed in modern data center architectures.
Image Credit: Santec Corporation
MPA-200
- Flexible configuration
- Simultaneous Optical Power Monitor for up to 64 channels
- Slim 1U size achieves space efficiency and high integration
- Wavelength range: 1260-1610 nm
- Optical power range: -85 dBm to +0 dBm
- Excellent cost performance
- USB interface and voltage output for easy data acquisition
- High-speed optical connection using MPO adapter, multiple signal support
Multi-channel: Expandable up to 128 channels
Connector selection: LC/SC/MPO selectable
Overview
High-Precision, Wide-Range Light Measurement Capability
The device enables high-precision monitoring of optical signals in data centers and telecommunications infrastructure, with a broad optical input power range and exceptional linearity.
Multi-Channel Support
Multiple signal monitor (8, 16, 32, 64 channels)
Wide Wavelength Range
1260 to 1610 nm
Flexible Customization
The number of channels and the connector type can be customized
Applications
- Monitoring high-speed optical transmission devices in data centers
- Optical Power Monitor for optical communication equipment in data centers
- Optical interconnect signal power monitor
- Optical power measurement for telecommunications equipment and CATV networks
Specification
- Optical input power range: -85 to +0 dBm
- Wavelength range: 1260 to 1610 nm
- Multiple Signal Monitor: 8, 16, 32, and 64 channels
