Hamamatsu’s L11316 is a compact 5-W xenon flash lamp with a trigger socket and power supply. The arc size of the flash lamp is 1.5 mm, suitable for compact analyzers.
The lamp comes with a borosilicate glass window of 280–2000 nm, a UV glass window of 185–2000 nm, and a synthetic silica glass window of 160–2000 nm.
Type Number Guide
![](https://d36nqgmw98q4v5.cloudfront.net/image-handler/picture/2019/8/a-1.jpg)

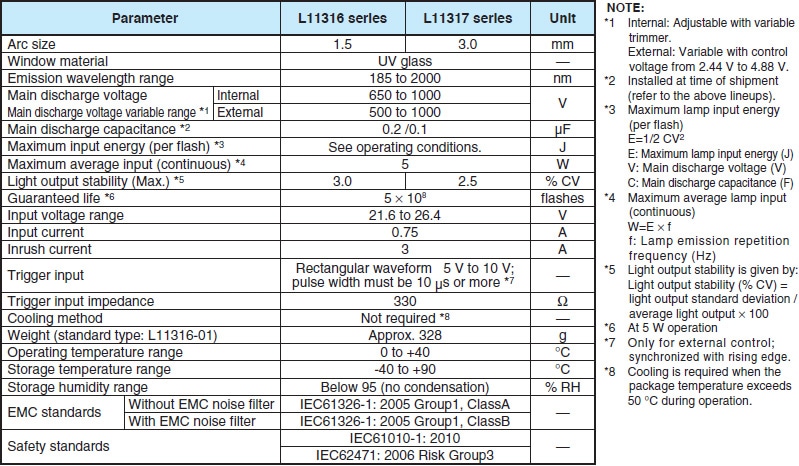

Specifications
![](https://d36nqgmw98q4v5.cloudfront.net/image-handler/picture/2019/8/b.jpg)

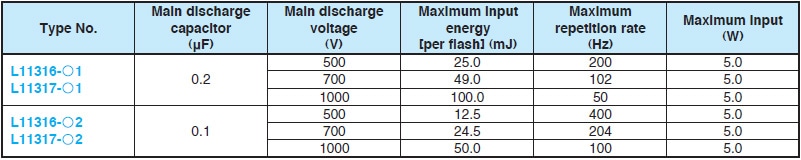

Operating Conditions
![](https://d36nqgmw98q4v5.cloudfront.net/image-handler/picture/2019/8/c.jpg)
