LAND, a business of AMETEK Inc. has developed a new non-contact infrared thermometer for precise measurement and control during deposition processes in optical fiber manufacturing.

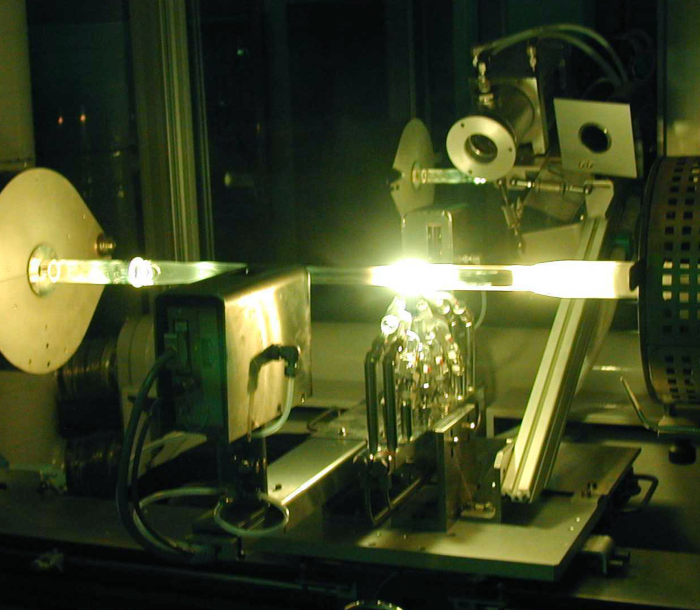

The VDT+ is a stand-alone thermometer for use in the burner zone where the deposition takes place. Image Credit: LAND
Updating the reputable LAND Vapour Deposition Thermometer, the VDT+ is a stand-alone thermometer for use in the burner zone where the deposition takes place. Precise control of the measurement here is critical to determine the ultimate fiber strength and quality. It uses a specific wavelength in the 5 µm region where glass is opaque and interferences from atmospheric gases and products of combustion are minimal.
A wide range of highly effective mounting accessories allows ease of installation and maintenance, enabling the operator to position the thermometer in the ideal location.
The VDT+ is fully focusable with through-the-lens sighting and a narrow 100:1 field of view for precise optical alignment. A rugged and modular design ensures the pyrometer withstands harsh environments, particularly important in this application.
Temperature measurements range from 1000 to 2500 °C / 1800 to 4500 °F, and accuracy and repeatability of <1 °C / <2 °F. The updated electronic design allows for fast, accurate, drift-free measurements to ensure a high yield. The flexible design has built-in signal processing, including signal averaging and a peak picker algorithm.
Derek Stuart, Global Product Manager, from LAND said: “The VDT+ builds on our long-established VDT thermometer to deliver a powerful tool for accurate and reliable temperature measurements in optical fiber preforms and other hot glass applications. It does not require an external processor and can easily be configured using the built-in web server.”
The VDT+ from LAND is the industry standard. A 4-20 mA output suits all process monitoring, recording and control systems. Individually calibrated thermometers are available with traceability to National Standards, and UKAS or NIST Calibration certificates are available.
