Toshiba Releases Small Photorelay with High Speed Turn-On Time that Helps Shorten Test Time for Semiconductor Testers

Toshiba Electronic Devices & Storage Corporation ("Toshiba") has launched "TLP3476S," a photorelay in the S-VSON4T package that cuts turn-on time to half that of Toshiba’s current product, TLP3475S. Volume shipments start today.

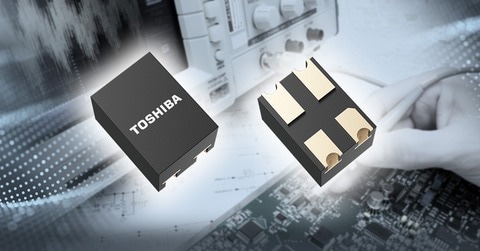

Toshiba: TLP3476S, a small photorelay that helps shorten test time for semiconductor testers. Image Credit: Business Wire

TLP3476S is faster and more compact than Toshiba's current TLP3475S. It realizes high efficiency optical coupling by improving the optical output of infrared LEDs and optimizing the design of photo detector devices (photodiode arrays). This improves operating speed and pushes turn-on time to a maximum of 0.25 ms -- 50% faster. It is also 20% slimmer, due to a smaller, low profile S-VSON4T package that is 1.4 mm at maximum. This helps to reduce the size of equipment that requires multiple boards.

TLP3476S is suitable for the pin electronics of semiconductor testers, which use a large number of relays that require a shorter switching time.

Applications

  • Semiconductor testers (high-speed memory testers, high-speed logic testers, etc.)
  • Probe cards
  • Measurement equipment

Features

  • Small S-VSON4T packages: 1.45 mm × 2.0 mm (typ.), t=1.4 mm (max)
  • High-speed turn-on time: tON=0.25 ms (max)

Main Specifications

(@Ta=25 °C)

Part number

TLP3476S

Package

Name

S-VSON4T

Size (mm)

1.45 × 2.0 (typ.), t=1.4 (max)

Absolute maximum ratings

OFF-state output terminal voltage VOFF (V)

60

ON-state current ION (A)

0.4

ON-state current (pulsed) IONP (A)

1.2

Operating temperature Topr (°C)

-40 to 110

Coupled electrical

characteristics

Trigger LED current IFT (mA)

max

3.0

ON-state resistance RON (Ω)

typ.

1.1

max

1.5

Electrical characteristics

Output capacitance COFF (pF)

max

20

Switching characteristics

Turn-on time tON (ms)

@RL=200 Ω,

VDD=20 V,

IF=5 mA

max

0.25

Turn-off time tOFF (ms)

0.2

Isolation characteristics

Isolation voltage BVS (Vrms)

min

500

Sample Check & Availability

Buy Online



Follow the link below for more on the new product. TLP3476S

Follow the link below for more on Toshiba’s Isolators/Solid State Relays. Isolators/Solid State Relays

To check availability of the new product at online distributors, visit: TLP3476S. Buy Online
