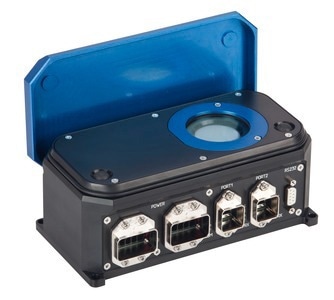

The Helios Pro detects the energy of a brief exposure to high-power industrial lasers up to 12 kW.
- No water cooling, up to 12,000 W
- Profinet/EtherNet/IP/EtherCAT and RS232 interface
- Remote actuated protective cover
- Dual wavelength range, NIR and visible spectrum
- Optional diffuser for small beam sizes
- Pulse characterization: pulse shape, power measurement independent of laser pulse rise time, pulse stability
Software
Helios Pro PC Application
Software: Helios Pro PC Application
Short exposure time is used to assess power.
Specifications
Source: MKS Ophir
| . |
. |
| Spectral Range |
450–550 nm, 900–1100 nm |
| Absorber Type |
LP2 |
| Aperture Size |
Ø50 mm |
| Minimum Power |
100 W |
| Maximum Average Power |
12 kW |
| Minimum Pulse Energy |
100 J |
| Maximum Pulse Energy |
5 kJ |
| Response Time |
Three seconds |
| Dimensions |
Open: 200 × 114 × 146 mm; Closed: 200 × 103 × 86 mm (L × W × D) |
| CE Compliance |
Yes |
| UKCA Compliance |
Yes |
| China RoHS Compliance |
Yes |
Features
Introducing: "Helios Pro" Industrial Laser Power Meter Family
Introducing: "Helios Pro" Industrial Laser Power Meter Family
Video Credit: MKS Ophir
Ophir's Helios Pro range is ideal for monitoring high-power lasers in industrial environments. These laser power meters are designed with factory automation in mind, featuring a rugged, industrial design for harsh environments and a variety of communication ports that make them easy to integrate into factory networks. They also optimize Li-ion battery welding and other high-power laser production applications.
