By measuring the energy of short exposure to power, the Ariel measures high-power industrial lasers up to 8 kW. The laser's pulse duration ranges from 0.05 to several seconds. The Ariel then determines the power by measuring the laser pulse's energy and duration.
- IP62 - Dustproof, splashproof
- Includes a detachable diffuser for high power density beams
- Wavelengths: 440–550 nm, 900–1100 nm, 2.94 μm, 10.6 μm
- Connectivity: Ariel: Bluetooth and USB; Ariel-USB: USB only
- Measures up to 8000 W
- Compact and self-contained with a built-in display
- Onboard logging
- No water cooling
Software
PC Software and Drivers
This section explains several software options and methods for interfacing the Ophir meter to the PC.
StarLab
When used in conjunction with an Ophir meter, the StarLab application transforms a PC or laptop into a complete laser power/energy meter. Most Ophir laser power/energy sensors are supported.
On a single PC, up to eight sensors can be displayed simultaneously. Users can operate the device from their own application by employing the Ophir COM Object.
Ariel, Centauri, StarBright, StarLite, Juno, Juno+, Juno-RS, Nova II, Vega, Pulsar-1/2/4, Quasar, EA-1, and Ariel devices are all supported.
StarViewer
With StarViewer, users can use their iOS or Android smartphone as a portable Ophir laser power/energy measurement device.
StarViewer’s iOS version is compatible with the Ariel sensor. Ariel, Juno, and Quasar interfaces are compatible with the Android version of StarViewer.
Specifications
Source: MKS Ophir
| . |
. |
| Product Name |
Ariel |
| Spectral Range |
440–550 nm, 900–1100 nm, 2.94 µm, 10.6 µm |
| Absorber Type |
LP2 |
| Aperture Size |
Ø32 mm |
| Minimum Power |
0.2 W |
| Maximum Average Power |
8 kW |
| Maximum Pulse Energy |
2.4 kJ |
| Backscattered Power |
LP2 absorber: 4% (<2200 nm), 10% (2940 nm), 25% (10.6 µm); With window: 5%; With diffuser: 25% |
| Response Time |
Three seconds |
| Dimensions |
70 × 70 × 80 mm (L × W × D) |
| CE Compliance |
Yes |
| UKCA Compliance |
Yes |
| China RoHS Compliance |
Yes |
Features

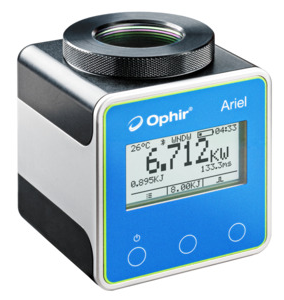

Ariel, Ultra-Compact “All-in-One” Sensor Overview
Ariel, Ultra-Compact "All in One" sensor for measuring high power industrial lasers up to 8KW.
Video Credit: MKS Ophir
The Ariel power meter is a sturdy, battery-operated device that does not need water or fan cooling and is small enough to fit in the palm of the hand. It is designed for OEM and end-user applications in restricted and confined environments, such as additive manufacturing, metal cutting, and welding.
The device monitors laser powers ranging from 200 mW to 8 kW across a variety of wavelengths, including green and blue lasers, which are becoming increasingly common in copper welding, with wavelengths between 440 and 550 nm.
Choosing a Thermal Sensor
Thermal Sensors for Measuring Low, Medium & High Laser Powers
Video Credit: MKS Ophir
The use and selection of thermal sensors for monitoring low, medium, and high laser powers are discussed in this brief “Basics” video.
Measuring Ultra High Power Laser Beams
Measuring Very High Power Laser Beams: Challenges and Solutions
Video Credit: MKS Ophir
In today’s industrial and research applications, laser beams with power levels in the many tens of kilowatts are becoming increasingly prevalent. The technical challenges in measuring such lasers will be covered in this video, along with a variety of safe and precise methods that Ophir now offers for measuring up to 100 kW.
How to Use the StarViewer Android App to Operate the Ariel
How to Use the StarViewer Android App to Operate the Ariel
Video Credit: MKS Ophir
This brief video explains how to operate the Ariel, Ophir’s new ultra-compact self-contained industrial power meter, using the “StarViewer” Android app.
Ariel All-in-One High Power Laser Sensor: How to Use
Ariel All-in-One High Power Laser Sensor: How to Use
Video Credit: MKS Ophir
Discover how to measure high-power industrial lasers up to 8 KW with Ophir’s new, very small “All-in-One” sensor, Ariel.
A Great Instrument is Now Even Better
Product Feature: Ariel – Great Instrument, Now Even Better
Video Credit: MKS Ophir
The Ophir Ariel, a palm-sized, durable laser power meter for high-power industrial applications, has just become better!
