Ultrasonic Imaging with Micro-Metalenses for Advanced Material Diagnostics

In an article recently published in Scientific Reports, researchers from the USA and India explored advancements in ultrasonic imaging, focusing on achieving micron-scale resolution using bulk ultrasonics. They addressed key challenges in non-destructive testing and material diagnostics, particularly in industries where detecting microscopic defects is essential.

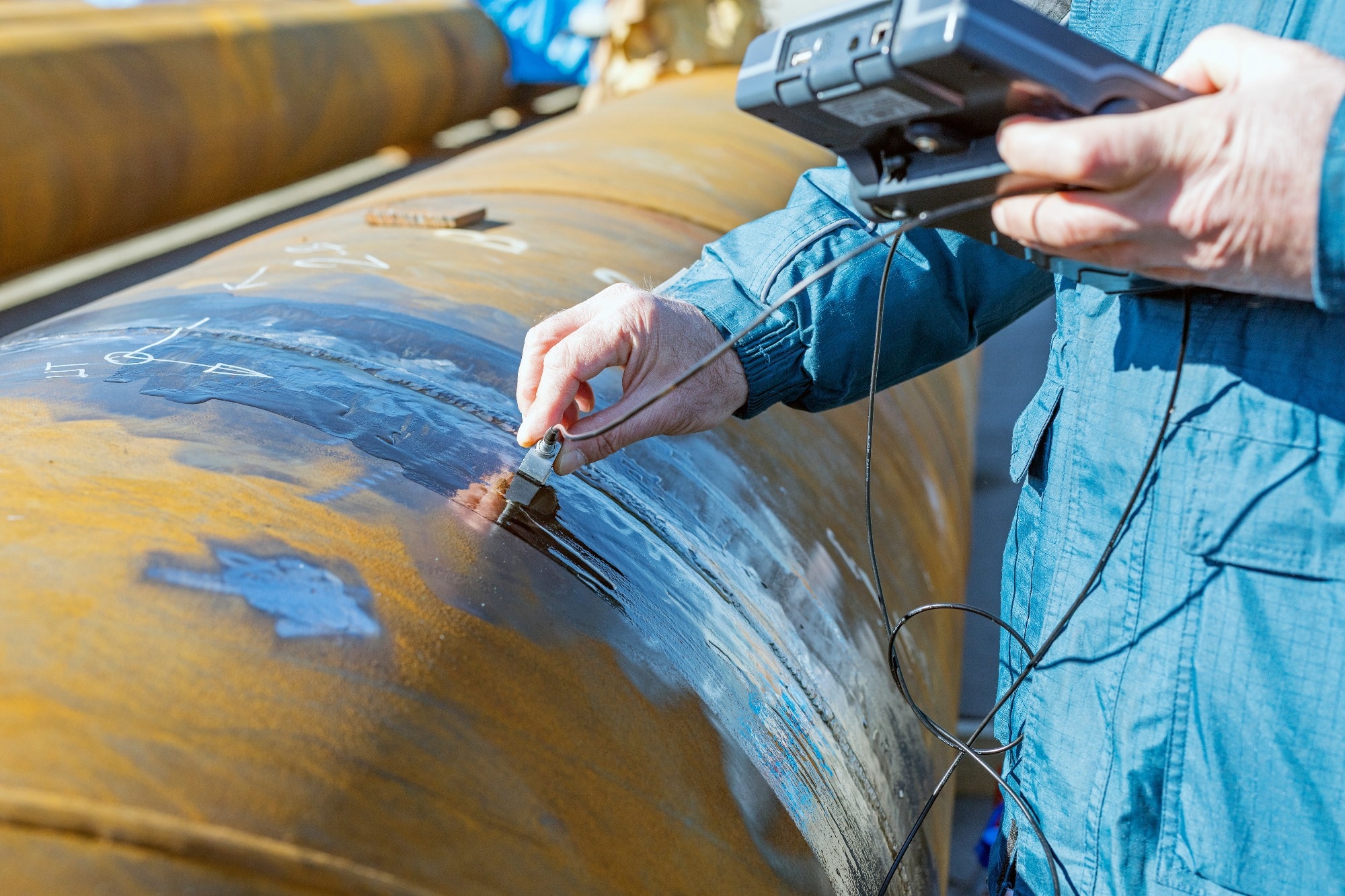

Ultrasonic Imaging with Micro-Metalenses for Advanced Material Diagnostics

Image Credit: Funtay/Shutterstock.com

Advancement is Material Evaluation

Evaluating materials at greater depths with high resolution is crucial in fields such as high-energy physics, quantum materials, nuclear power generation, biomedical diagnostics, and aviation. Traditional methods, like radiographic (X-ray) testing, provide high resolution but have limited penetration in solids and involve ionizing radiation, making them costly and less practical for widespread use.

In contrast, ultrasound can penetrate thicker samples, is cost-effective, and is non-ionizing, making it ideal for rapid, large-scale diagnostics. However, conventional bulk ultrasound struggles with imaging microscopic defects due to longer wavelengths.

Techniques like scanning acoustic microscopy (SAM) offer higher resolution but are limited to surface imaging. Thus, achieving high-resolution imaging with low-frequency bulk ultrasonics could significantly improve deeper material diagnostics inside solids.

Developing Micro-Metalenses for Ultrasonic Imaging

The authors aimed to overcome the diffraction limit that restricts imaging resolution to half of the operating wavelength. They developed silicon-based, micro-fabricated metamaterial lenses with arrays of 10-micron square holes.

To enhance wave detection, a custom micro-focal laser with a sub-micron spot size was created, allowing for precise measurements. This setup combined laser technology with advanced signal processing to achieve micron-scale resolution of defects, focusing on identifying synthetic slit-type defects in silicon samples.

The experimental setup included an ultrasonic transmitter connected to a computer-controlled scanning stage, which held a tank with the samples and metalens. The transmitter was powered by a pulser, while a laser receiver detected displacements from the sample, converting these into ultrasonic signals for sub-wavelength imaging.

Micron-scale square holes were fabricated in silicon using Deep Reactive Ion Etching (DRIE), and a thin gold layer was added to enhance reflectivity for non-contact, laser-based detection. The metalens channels were also oxidized to make them hydrophilic, ensuring consistent water levels within the channels.

Key Findings and Insights

The study achieved a resolution of 50 microns using micro-fabricated metalenses. Line scans were conducted on silicon samples with synthetic slit defects, both with and without the micro-metalenses. The results confirmed that the hydrophilic properties of the metalens allowed ultrasonic waves to propagate and interact with the defects, which were detected by the micro-focal Laser Doppler Vibrometer (LDV).

Post-processing of the experimental data validated sub-wavelength resolution at the micron scale. A-scan data for ultrasonic inspection of slits spaced 50 microns apart showed defect separation down to this resolution in the bulk ultrasonic regime.

Additionally, a quantitative evaluation of the B-scan profile using metrics such as Peak-to-Side Lobe Ratio (PSLR), Signal-to-Noise Ratio (SNR), and Contrast Ratio (CR) revealed moderate contrast and clear defect visibility, indicating that while the main peak is stronger, the presence of side lobes remains notable.

Finite element (FE) simulations were performed to estimate the resolution limit of the micrometamaterial, confirming that resolution below the periodicity of the metalens was not achievable.

Practical Implications

Advancements in low-frequency ultrasound, combined with micro-fabricated holey metamaterials, show potential for fine imaging. This method is beneficial for detailed in situ analysis of electronic materials and devices, such as integrated circuits (ICs) and microelectromechanical systems (MEMS).

The research also has applications in Non-Destructive Evaluation (NDE) and biomedical imaging, where high-resolution imaging of complex structures is essential. Achieving high-resolution imaging at greater depths can improve diagnostics in various fields, including quantum materials, high-energy physics, nuclear power generation, aviation, and biomedical diagnostics.

Additionally, the non-ionizing and cost-effective nature of ultrasonic techniques makes them ideal for large-scale inspections, potentially replacing more expensive and hazardous electromagnetic methods.

Conclusion and Future Directions

In summary, micro-fabricated metalenses proved effective in achieving resolution with a 2.25 MHz commercially available bulk ultrasonic transducer. Their development offers a promising alternative to traditional imaging techniques, enabling high-resolution inspections at greater depths.

Future work should optimize the micro-metalens parameters and experimental setups, particularly in maintaining water levels within the channels and improving scanning speed. This research paves the way for advanced material diagnostics and imaging across multiple scientific and industrial fields.

Journal Reference

Chandran, L., et al. (2024). Micron-scale imaging using bulk ultrasonics. Sci Rep. DOI: 10.1038/s41598-024-72634-2, https://www.nature.com/articles/s41598-024-72634-2
