Metamaterials are artificially engineered materials with unique properties, designed to interact with electromagnetic waves in ways that differ from traditional materials. One of the most promising applications of metamaterials is in the manipulation of light, offering unprecedented control over its behavior. This article explores the design and fabrication of metamaterials for manipulating light, delving into the underlying principles, recent advancements, and potential applications.

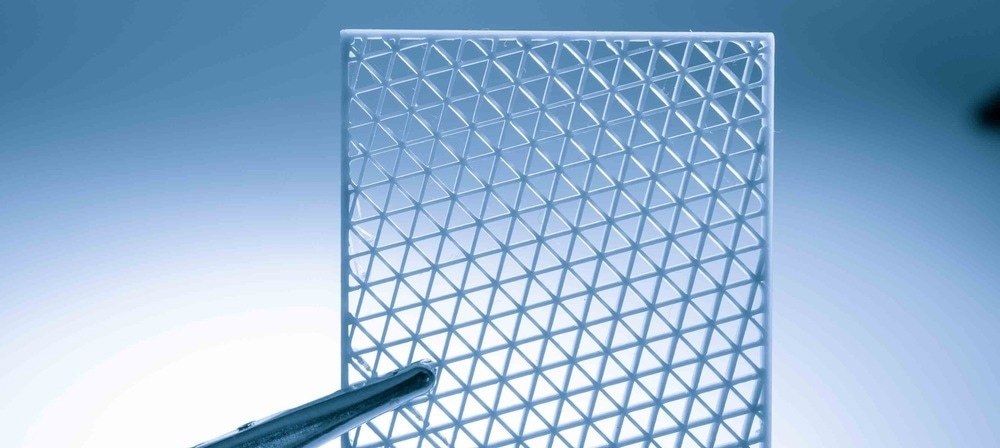

Image Credit: luchschenF/Shutterstock.com
What are Metamaterials?
Traditional materials interact with light based on their inherent properties like refractive index and absorption, whereas metamaterials derive their optical characteristics from their subwavelength structural arrangements that are carefully designed to exhibit unique electromagnetic responses, allowing precise control over the manipulation of light at the nanoscale.
The Design Process
The geometry, arrangement, and composition of their subwavelength structures determine the properties of metamaterials, and to model and predict the behavior of these materials, researchers employ advanced simulation techniques, like finite element analysis (FEA) and computational electromagnetics. For instance, one key aspect of metamaterial design is achieving a negative refractive index that allows light manipulation in a direction opposite to what occurs in traditional materials, leading to novel optical phenomena like superlensing and invisibility. Achieving a negative refractive index requires precise engineering of metamaterial structures, often involving unit cells with unique shapes and orientations.
The successful translation of metamaterial designs from theoretical concepts to tangible structures relies on advanced fabrication techniques. Several methods have been developed to manufacture metamaterials, each with its own set of advantages and limitations. For instance, photolithography has been adapted for the metamaterial fabrication process involving using light to transfer a pattern from a mask to a light-sensitive chemical photoresist on a substrate, creating intricate patterns of subwavelength structures with high precision.
Similarly, electron beam lithography offers even higher resolution than photolithography, enabling the fabrication of extremely fine features by focusing an electron beam to selectively expose a resist material, creating complex and detailed metamaterial structures. However, it is a slower process than photolithography and is typically reserved for small-scale production. Another relatively newer and cost-effective technique for large-scale production of metamaterials is nanoimprint lithography, which involves pressing a mold with the desired pattern into a polymer material, which is then cured to create the final structure.
Applications of Metamaterials in Light Manipulation
The ability to control and manipulate light at the nanoscale opens up many applications for metamaterials across various fields. For example, metamaterials have the potential to render objects invisible by bending light around them. This concept, known as optical cloaking, has captivated researchers and has applications in the military, surveillance, and even medical fields.
Negative refractive index metamaterials enable the creation of superlenses that can surpass the diffraction limit of conventional optics, allowing for imaging details that are finer than what is possible with traditional lenses, with implications for advancements in microscopy and medical imaging. Similarly, metamaterials can be designed to focus and steer light with high precision, which has applications in beam shaping, telecommunications, and advanced optical components.
The unique optical properties of metamaterials also make them excellent candidates for enhancing sensing and detection technologies. Metamaterial-based sensors can detect and identify substances at extremely low concentrations, making them valuable in environmental monitoring and healthcare.
Advancements in Hyperbolic Metamaterials
In a recent study, researchers have explored advancements in optical metamaterials, specifically focusing on hyperbolic metamaterials (HMMs) for manipulating light. Hyperbolic metamaterials exhibit an extremely high anisotropy with a hyperbolic dispersion relation, allowing them to support high-k modes and display unique properties. Recent developments include the investigation of two-dimensional hyperbolic metasurfaces (HMSs) to overcome propagation loss limitations in bulk HMMs. These HMSs, composed of natural 2D hyperbolic materials or artificially structured structures, show promise as planar optical devices with reduced sensitivity to losses.
The study emphasizes the progress in applications such as high-resolution optical imaging, negative refraction, and emission control. Challenges in bulk HMMs, such as propagation losses, are actively addressed through innovative approaches, showcasing the ongoing efforts to harness the potential of hyperbolic metamaterials in various optical applications.
Metamaterials in Optical Computing
In another 2022 study, researchers have made significant strides in developing all-optical computing platforms utilizing metamaterials for manipulating light. The study explores the implementation of basic optical calculations, such as differentiation and integration, using metamaterials, paving the way for the realization of all-optical artificial neural networks.
Metamaterials in static configurations, such as single and multilayers, have been explored for all-optical computations, showcasing promising results for image processing and data manipulation. Furthermore, the study delves into recent advancements in metasurfaces and other photonic devices, emphasizing the potential applications in on-chip solid-state LiDAR, bioimaging, and big data preprocessing. Despite challenges, the research marks substantial progress in developing all-optical computing using metamaterials, focusing on achieving fully integrated photonic brains.
Challenges and Future Directions
Despite the remarkable progress in the field of metamaterials, several challenges persist; for instance, integrating metamaterials into practical devices and systems requires addressing compatibility issues with existing technologies. The future directions of metamaterial research include the exploration of active and dynamic metamaterials that can adapt their optical properties in real-time, leading to the development of reconfigurable devices with novel communication, imaging, and signal processing applications.
More from AZoOptics: High-Precision Optical Metrology Techniques and Their Principles
References and Further Reading
Badloe, T., Lee, S., & Rho, J. (2022). Computation at the speed of light: Metamaterials for all-optical calculations and neural networks. Advanced Photonics. https://doi.org/10.1117/1.AP.4.6.064002
Cai, W., Chettiar, U. K., Kildishev, A. V., & Shalaev, V. M. (2007). Optical cloaking with metamaterials. Nature photonics. https://doi.org/10.1038/nphoton.2007.28
Khan, S. A., Khan, N. Z., Xie, Y., Abbas, M. T., Rauf, M., Mehmood, I., ... & Zhu, J. (2022). Optical sensing by metamaterials and metasurfaces: from physics to biomolecule detection. Advanced Optical Materials. https://doi.org/10.1002/adom.202200500
Lee, D., So, S., Hu, G., Kim, M., Badloe, T., Cho, H., ... & Rho, J. (2022). Hyperbolic metamaterials: fusing artificial structures to natural 2D materials. ELight. https://doi.org/10.1186/s43593-021-00008-6
Zeng, J., Wang, X., Sun, J., Pandey, A., Cartwright, A. N., & Litchinitser, N. M. (2013). Manipulating complex light with metamaterials. Scientific reports. https://doi.org/10.1038/srep02826
