How to Read Raman Spectroscopy Results: A Beginner’s Guide

By Owais AliReviewed by Louis CastelJul 22 2025

Raman spectroscopy is a non-destructive analytical technique that identifies molecular structures and chemical compositions by measuring the inelastic scattering of monochromatic laser light interacting with molecular vibrations.

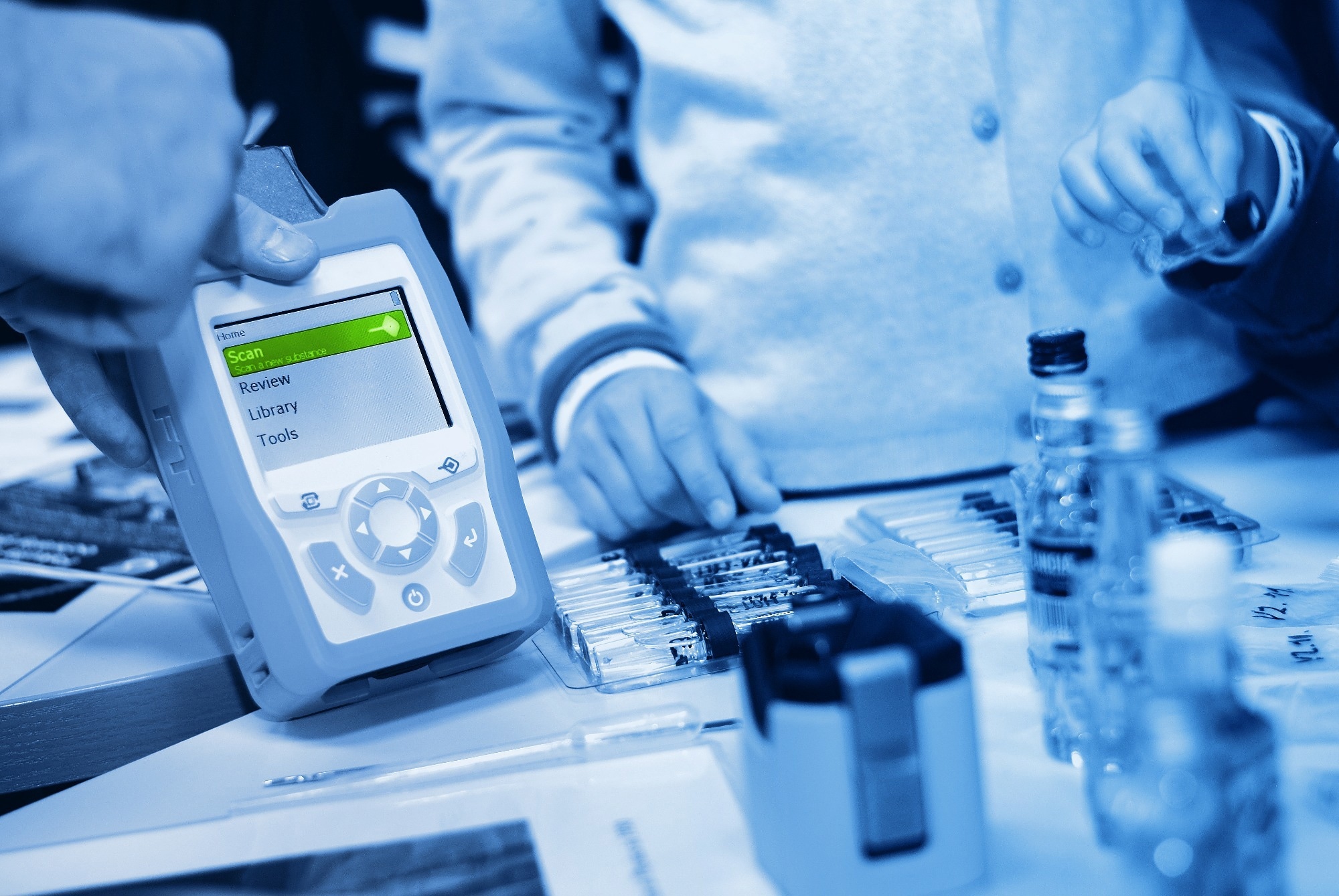

Image Credit: Forance/Shutterstock.com

The resulting spectra reveal vibrational, rotational, and low-frequency molecular modes, making Raman spectroscopy an invaluable tool for material characterization, chemical analysis, and structural identification across various scientific fields.¹

This article offers a beginner-friendly guide to interpreting Raman spectra and understanding their essential features.

Understanding the Raman Spectrum

X-axis (Raman Shift, cm⁻¹)

The x-axis represents the Raman shift, measured in wavenumbers (cm⁻¹). It indicates the energy difference between the incident laser light and the scattered photons, corresponding to specific molecular vibrations within the sample.

Raman shifts are independent of the excitation wavelength, making spectra comparable across different instruments and lasers.

Y-axis (Intensity)

The y-axis shows the intensity of the scattered light at each Raman shift. This intensity reflects the strength of each vibrational mode's interaction with the incident radiation, providing information about the molecular structure and concentration.

The intensity of Raman peaks depends on changes in polarizability, concentration, and instrument settings, making it useful for both identification and semi-quantitative analysis.

Peaks and Vibrational Modes

The peaks in a Raman spectrum correspond to specific molecular vibrations excited by the incident laser radiation.

Each peak represents a distinct vibrational mode, such as bond stretching, bending, or ring breathing, with its position determined by the vibrational frequency and intensity reflecting the mode’s Raman activity.²

Download your PDF copy now!

Key Features of a Raman Spectrum

Fingerprint Region

The fingerprint region contains the most structurally informative part of a Raman spectrum, encompassing vibrational modes such as C–C stretching, C=C stretching, and C–H, N–H, and O–H bending. These vibrations produce highly specific spectral patterns unique to each molecule, enabling compound identification through comparison with reference spectra.

Due to its complexity and molecular specificity, this region is particularly effective for distinguishing structurally similar compounds and identifying functional groups within complex matrices.

Peak positions and intensities in this region provide detailed insights into bonding environments and molecular symmetry.

High-Frequency Region

The high-frequency region features stretching vibrations involving light atoms bonded to heavier atoms, including C–H (2800–3100 cm⁻¹), O–H (3200–3600 cm⁻¹), and N–H (3300–3500 cm⁻¹) stretches. These modes appear as distinct peaks and are useful for detecting specific functional groups and confirming molecular composition.

The position and shape of peaks in this region provide information about hydrogen bonding, molecular environment, and the nature of chemical bonds, with sharp peaks indicating isolated groups and broad peaks suggesting hydrogen bonding or other intermolecular interactions.

Peak Position, Intensity, and Width

Peak position corresponds to the specific vibrational frequency of a chemical bond or functional group and is determined by bond strength, atomic masses, and molecular environment. Shifts in peak position can indicate changes in molecular structure, bonding, or phase transitions.

Peak intensity indicates the strength of the Raman scattering for a given vibrational mode. It depends on the change in molecular polarizability that occurs during vibration. High intensity suggests strong, symmetric bonds or higher concentrations of the scattering species, while low intensity may result from weak polarizability changes or low sample concentration.

Peak width reflects the molecular environment and structural order. For example, narrow peaks are associated with well-ordered, crystalline materials, whereas broad peaks suggest amorphous phases, structural disorder, or heterogeneous environments.³

How to Interpret Raman Spectra

Step 1: Peak Identification and Database Matching

The interpretation process begins by identifying significant spectral peaks and comparing their positions with reference data. Primary peaks with high intensity are recorded first, followed by secondary peaks that provide additional structural insight.

Spectral databases such as the RRUFF project, NIST Chemistry WebBook, and commercial libraries are used to correlate observed peak positions with known compounds. While matching, it is necessary to account for slight shifts due to experimental conditions such as sample preparation, laser wavelength, or temperature.

Step 2: Functional Group Assignment

Once peak positions are established, each observed peak is examined for correspondence with known vibrational frequencies of chemical bonds.

Functional groups such as carbonyls, nitriles, and aromatic rings are identified based on their characteristic Raman shifts. For instance, the C=O stretch is typically observed between 1700 and 1730 cm⁻¹, and the C≡N stretch appears near 2230 cm⁻¹. The exact location of these bands may vary depending on the molecular environment, necessitating careful consideration of neighboring groups and chemical context for precise identification.

Step 3: Evaluation of Bond Strength and Atomic Mass Effects

The position of Raman peaks is directly influenced by the strength of chemical bonds and the masses of the atoms involved. Stronger bonds and lighter atoms produce higher vibrational frequencies, resulting in peaks at higher Raman shifts, while weaker bonds and heavier atoms lead to lower-frequency vibrations.

For example, C–H stretching vibrations typically appear around 3000 cm⁻¹, whereas C–C stretching modes are found near 800 cm⁻¹. This predictable relationship facilitates the distinction between different types of bonds and the interpretation of the sample's structural features.

Step 4: Analyzing Intensity Ratios

Analyzing intensity ratios between Raman peaks enables assessment of structural differences, molecular orientation, and phase composition within a sample. These ratios offer comparative information, particularly useful for identifying polymorphs, monitoring crystallinity, or evaluating relative concentrations in mixtures.

Changes in intensity ratios can reveal subtle variations that may not be apparent from peak positions alone, supporting more detailed structural interpretation. This approach is crucial in applications that require precise material differentiation or quality evaluation.

Step 5: Material-Specific Interpretation and Software Validation

Different material classes require tailored interpretation strategies.

Organic compounds are characterized primarily through functional group and fingerprint patterns, whereas inorganic materials are often characterized by lattice vibrations below 400 cm⁻¹. Polymeric and biological samples require consideration of chain conformations, hydration states, and secondary structural elements.

To enhance reliability, spectral interpretation is validated using software tools that compare measured spectra with reference databases, providing quantitative matching scores such as the Hit Quality Index (HQI) for compound identification.^4,5

Common Mistakes & Troubleshooting

Fluorescence Interference

Fluorescence, a common issue in Raman spectroscopy, produces a broad, intense background that can obscure Raman peaks, particularly when the sample contains fluorophores excited by the laser wavelength. This interference overwhelms the weaker Raman signals, complicating spectral analysis.

To reduce fluorescence, the excitation wavelength can be shifted to avoid electronic absorption, or near-infrared lasers (e.g., 785 nm, 1064 nm) can be used. Additionally, sample pretreatments such as photobleaching may also help by lowering fluorophore concentration before measurement.

Cosmic Spike Misidentification

A common mistake in Raman spectroscopy is overlooking or improperly correcting cosmic spikes, artifacts generated by high-energy particles striking CCD or CMOS detectors. These spikes manifest as sharp, intense peaks at random wavenumbers and are not reproducible across measurements.

This problem can be addressed by detecting these spikes through comparison of multiple successive spectra and replacing the affected data points with interpolated values or corresponding intensities from adjacent scans, while ensuring consistency in fluorescence background and signal intensity.

Baseline Correction

Improper baseline correction occurs when the broad fluorescence background is not effectively separated from the Raman signal, typically due to the incorrect selection of method or parameter settings. This results in distorted peak intensities and shapes, leading to inaccurate spectral interpretation and the potential for misidentifying compounds.

This issue can be resolved by selecting suitable baseline correction methods (such as SNIP, asymmetric least squares smoothing, or polynomial fitting) with appropriate parameter settings and validating the results to ensure accurate fluorescence removal without distorting Raman peaks.

Sample Damage and Heating

High-intensity laser radiation can cause sample heating, decomposition, or structural changes that alter the Raman spectrum. The damage can be minimized by lowering laser power, defocusing the beam, moving the sample during measurement, or using time-gated detection to reduce exposure time while preserving signal quality.

Signal-to-Noise Ratio Issues

A low signal-to-noise ratio (SNR) hampers the detection of weak Raman peaks and may lead to confusion between noise and real signals. This is common with dilute samples, poor optical setup, or insufficient integration time.

Improving SNR requires optimizing laser focus, increasing signal accumulation, and verifying reproducibility through repeated measurements.⁶

Overall, effective Raman spectral interpretation requires an understanding of key features and a systematic comparison with reference data. Addressing common challenges ensures accurate and reliable analysis across a wide range of applications.
