Toshiba Corporationfs Semiconductor & Storage Products Company today announced the launch of optical coupled isolation amplifiers with a delta-sigma AD converter that can detect infinitesimal electric current and voltage fluctuation with high-precision, for use in industrial equipment applications.
The new products will be in available in analog output and digital output types, and can be provided in either a low height 2.3mm(max) SO8L thin package or a conventional DIP8 package. Shipment of the new products starts today.

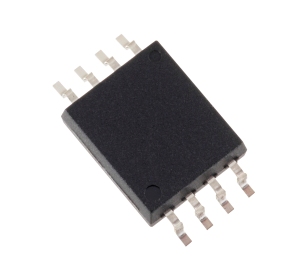

Toshiba: Optical coupled isolation amplifier equipped with a delta-sigma AD converter (Photo: Business Wire)
Monitoring the phase current of motors and BUS voltage fluctuations for accurate feedback to the microcontroller is essential to realizing the high-precision operation required in recent industrial equipment, including inverters and servo amplifiers. In order to meet these requirements, the new optical coupled isolation amplifiers are equipped with a high-precision delta-sigma AD converter on the input side and achieve the industryfs highest level of linearity[1], a performance of 0.02%(typ.)@NL200 for the analog output products and 3LSB(typ.)@INL for the digital output products. The isolation amplifiers also secure a CMTI (Common-Mode Transient Immunity) value of 20kV/µs(typ.), enabling stable operation in motor control applications which usually generate high levels of noise. Furthermore, the 5000V(min.) isolation voltage makes them suitable for use in various industrial equipment applications.
Applications:
- Industrial equipment including inverters, servo amplifiers, robots, CNCs and power supplies
- Wind turbine and photovoltaic inverters, battery management
- UPS, power supplies for servers, battery management and air-conditioners for office and residential use
Line-up and Key Specifications:
|
Digital output products
|
| Part Number |
|
TLP7830 |
|
TLP7930 |
| Package |
|
SO8L |
|
DIP8 |
| Output Type |
|
1bit digital / CLK Output |
| Operation Temperature |
|
-40 to 105 degrees Celsius
|
| Input Voltage Range |
|
±200mV/±320‚V(FSR) |
|
Integral Non-linearity
(INL200)
|
|
3LSB(typ.)
|
|
Gain Error (Ta = 25 degrees Celsius)
|
|
±1%(min/max)
|
| Supply Current (Input) |
|
8.5mA(typ.)
|
|
Common Mode Transient
Immunity
|
|
20kV/µs(typ.)@VCM=1kV,Ta = 25 degrees Celsius
|
| Isolation Voltage |
|
5000Vrms |
Notes
[1] As of September 11, 2015. Toshiba survey.
