New High Speed Ø5 mm Photodiode - SXUV20HS1 from Opto Diode

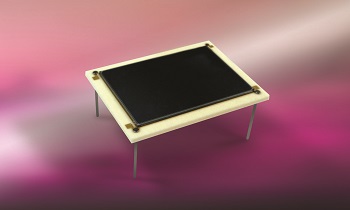

Opto Diode, a division of ITW, announces the SXUV20HS1, a high-speed photodiode with a Ø 5 mm circular active area,. The new detector is ideal for extreme ultraviolet (EUV) detection covering 1 to 200 nm.  It is designed to dissipate the optical energy of high-powered UV lasers without the typical measurement degradation that occurs with prolonged exposure to UV.  Optimized to provide stable responsivity for consistent, repeatable measurements, it is ideal for any high-speed laser power monitoring applications.

Highly stable, the SXUV20HS1 sensitive area is 19.7 mm2, grid lines are at 5 microns with the pitch at 100 microns.  Shunt resistance is 5 MOhms and capacitance is typically 200 pF to a maximum of 800 pF. The high-speed device parameters include reverse breakdown voltage at 160 V (minimum), dark current of 100 nA (under test conditions of 150 V), and a rise time of 2 nanoseconds (maximum).

RoHS and REACH compliant, Opto Diode’s new photodiode is well-suited for applications such as photolithography, where tight control of the laser’s output, a     fast response, and measurement stability are critical.

For more information about Opto Diode’s high speed SXUV20HS1 Ø 5 mm photodiode, go to:  http://optodiode.com/pdf/SXUV20HS1.pdf.  For the photon responsivity graph, please see page two of the data sheet pdf.
