Exploring Novel Solutions for Refractive Index Challenges in Microscopy

Accurate imaging is crucial in microscopy for detailed observation and analysis of microscopic structures and phenomena. However, refractive index mismatching (RIM) presents significant challenges, leading to image distortion and compromised data quality. This article overviews RIM and explores innovative solutions to overcome these challenges.

Exploring Novel Solutions for Refractive Index Challenges in Microscopy

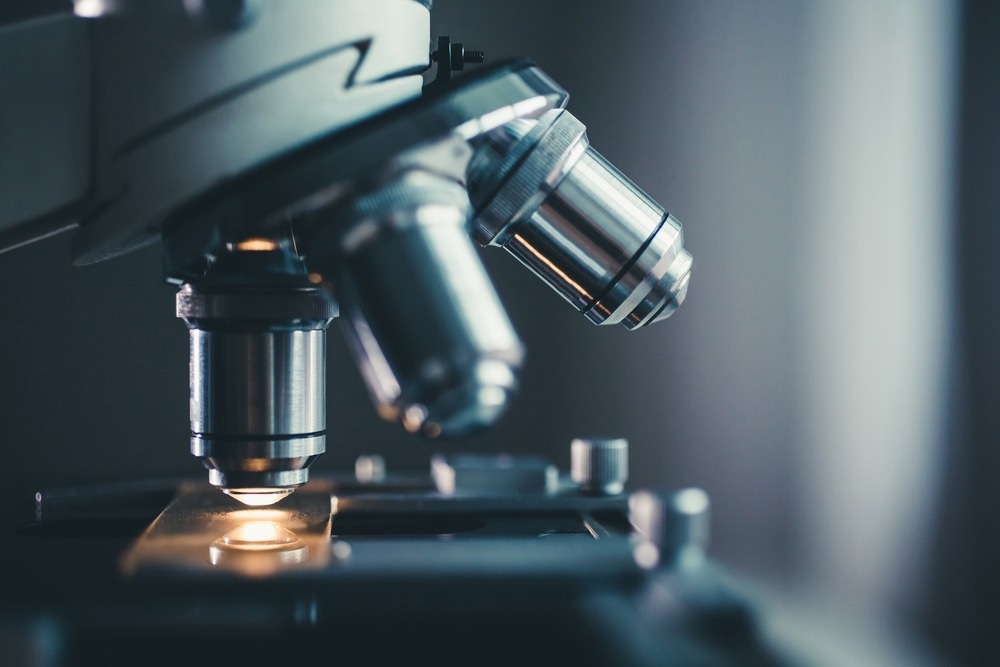

Image Credit: Konstantin Kolosov/Shutterstock.com

Understanding Refractive Index Mismatches

RIM occurs when the refractive indices of different materials within the light path differ. This discrepancy leads to deviations from the ideal straight-line propagation of light, causing significant problems in microscopy. For example, spherical aberrations, which misalign optical paths and distort microscopic images, reduce image clarity and accuracy.

The impact of RIM becomes more pronounced with increasing sample thickness and complexity, which complicates the acquisition of high-quality images from deep tissue layers. In confocal microscopy, RIM can result in a loss of axial resolution and distort the image along the z-axis, leading to significant scaling errors.

Therefore, understanding and mitigating refractive index mismatches are crucial for improving the quality and accuracy of microscopy imaging.1,2

Depth-Dependent Scaling Solutions

Analytical methods provide a cost-effective and precise way to correct refractive index challenges in microscopy, enhancing image clarity and depth without additional hardware.

Traditionally, these methods used a constant depth-independent scaling factor based on simple ratios of refractive indices between the immersion medium and the specimen to adjust axial distances across the entire image.

While this approach simplifies the calculations, it ignores the variations in optical path length and complex light behavior at varying depths, particularly at high numerical apertures. This can result in significant errors in high-resolution microscopy, where precise depth management is crucial due to narrow depth of field and notable refractive index differences.

A recent study published in Optica introduced a depth-dependent, non-linear scaling solution, offering a more precise correction for axial deformations caused by RIM.

The researchers achieved more accurate optical corrections by employing scaling factors that dynamically adjusted with numerical aperture, media refractive indices, and the wavelength of light.

This approach aligned better with theoretical expectations, allowing for more accurate volumetric measurements and better image quality in depth-sensitive microscopy applications.3

Technological Integration and Tools

These novel depth-dependent analytical techniques are validated through rigorous computational and experimental approaches.

Computational models, specifically wave-optics simulations, intricately model light propagation through diverse media, enabling accurate predictions of scaling factor adjustments with depth and refractive indices. The close alignment between these simulations and the new analytical theories provides a robust theoretical foundation for the depth-dependent scaling factors.

Experimental validation of these methods involves systematic imaging of known structures under various RIM conditions. Comparison of measured data with theoretical predictions confirms the accuracy of depth-dependent scaling factors, supporting both theoretical predictions and practical utility.

Practical tools like an online web applet have been developed to help microscopists utilize these complex theoretical models. The applet allows interactive visualization of how alterations in numerical aperture and refractive indices influence axial scaling factors, serving as a valuable educational and practical tool for researchers to apply the new scaling theories in real-time.

Specialized software has also been introduced to streamline the incorporation of these scaling factors into microscopy data processing. This software automatically adjusts axial dimensions in imaging data, seamlessly applying depth-dependent scaling factors to enhance 3D reconstruction accuracy.

Overall, these tools improve the usability of complex models in laboratory routines, bridging the divide between theoretical optics and practical microscopy.3

Additional Solutions to Address Refractive Index Challenges

While the depth-dependent scaling solutions represent a significant step forward, researchers have also explored complementary approaches to address the challenges posed by RIM.

Non-Toxic Tuners for Live Specimen Imaging

One promising solution involves using Iodixanol, a non-toxic supplement, to tune the refractive index of water-based live imaging media.

A recent study published in Elife highlights Iodixanol's effectiveness in enhancing image quality across various live specimens, such as zebrafish embryos, cell cultures, and regenerating planarian flatworms.

By adjusting the refractive index of the mounting medium without altering the specimens' internal refractive indices, Iodixanol significantly reduced spherical aberrations, enabling better imaging depth and spatial resolution.1

Using Specialized Mounting Media

Another approach involves using specialized mounting media like CFM3, which has a refractive index closely matching the glass-oil immersion system used in high numerical aperture oil-immersion lenses.

A study published in PLOS One demonstrated that CFM3 significantly improves axial resolution and imaging depth in fixed mouse brain tissue, rendering intricate structures like brain tissues more transparent and maintaining consistent resolution across various depths.2

AI-Assisted Computational Correction

Deep learning techniques, such as artificial neural networks, have been employed to correct RI mismatch-induced aberrations in fluorescence microscopy with radially polarized illumination.

This computational strategy outperforms traditional methods and offers a promising alternative to expensive adaptive optics hardware, potentially enhancing high-resolution imaging deep within live multicellular specimens.4

Future Outlook in Optical Microscopy

As the field of microscopy continues to evolve, further advancements in refractive index correction are anticipated. Integrating these novel solutions into existing and emerging microscopy technologies will be crucial for pushing the boundaries of imaging capabilities.

The impact of these advancements will extend across various disciplines, from biology and medicine to materials science and nanotechnology. For instance, improved imaging precision and accuracy will enable researchers to gain deeper insights into the microscopic world, driving scientific discoveries and innovations in disease diagnosis, drug development, and engineering advanced materials.

As demand for high-quality, high-resolution imaging rises, developing innovative refractive index solutions will remain crucial for unlocking the understanding of complex microscopic structures and processes.
