What is 3D Imaging?

Three-dimensional (3D) imaging is an advanced technology that generates 3D representations by capturing the shape, depth, and visual characteristics of objects. Unlike traditional 2D imaging, which only captures height and width, 3D imaging includes depth, providing a more comprehensive view. This technology is crucial in various fields, including medical imaging, entertainment, and engineering.

What is 3D Imaging?

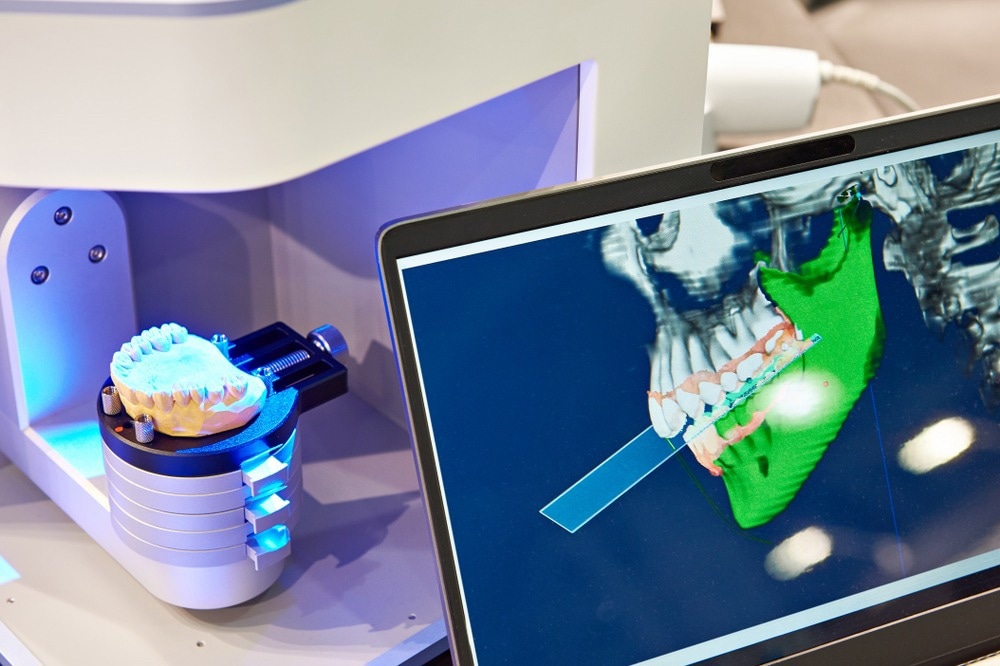

Image Credit: Sergey Ryzhov/Shutterstock.com

3D imaging offers a richer depiction of spatial relationships and structures, enhancing the understanding and interaction with physical and digital environments. This capability is revolutionizing industries by enabling precise diagnostics, immersive experiences, and innovative design processes.

This article delves into the evolution and principles of 3D imaging and discusses its diverse applications, current challenges, and promising advancements, offering a holistic view of this transformative technology.

From Stereoscopic Vision to Digital Realism

The evolution of 3D imaging spans over a century, beginning with the rudimentary stereoscopic imaging of the 19th century and advancing to today's sophisticated digital techniques. The journey started with stereoscopy, invented by Sir Charles Wheatstone in 1838.

This early method used two photographs, taken from slightly different angles, to create a single 3D image. Viewers used a stereoscope to combine these images, producing the illusion of depth. The 20th century saw the advent of digital computing, significantly advancing 3D imaging.1

The development of computer graphics in the 1960s and 1970s laid the groundwork for 3D modeling and rendering. Early medical imaging techniques, such as computed tomography (CT) and magnetic resonance imaging (MRI), began using 3D reconstructions to provide detailed internal views of the human body.1

In the 21st century, 3D imaging has grown exponentially due to advancements in sensor technology, computing power, and software algorithms. Techniques such as light detection and ranging (LiDAR), photogrammetry, and laser scanning have become more accessible and precise. The rise of artificial intelligence has further enhanced 3D imaging, enabling real-time processing and interpretation of complex datasets.1

Core Concepts and Techniques

The principles of 3D imaging involve capturing multiple perspectives of an object and reconstructing these views into a cohesive 3D model.2

Stereoscopic imaging replicates human binocular vision by capturing two images from slightly different angles, creating a perception of depth. This method is widely used in 3D movies and virtual reality applications.

Laser scanning uses laser beams to measure distances to surfaces, generating precise 3D models. A laser scanner emits a laser pulse, which reflects off the object and returns to the scanner. The time it takes for the pulse to return is used to calculate the distance, creating a detailed 3D map of the object's surface.

Photogrammetry involves capturing multiple 2D images from different angles and stitching them together to reconstruct a 3D model. Advanced software algorithms identify common points in the images and align them to create a detailed and accurate 3D representation.

LiDAR is a remote sensing method that uses pulsed laser light to measure variable distances. This data is then utilized to create precise, 3D information about the shape of the Earth and its surface characteristics.

Revolutionizing Medical Diagnostics

3D imaging has revolutionized the field of medical diagnostics and treatment. Advanced techniques such as 3D ultrasound, MRI, and CT scans provide detailed images of internal body structures, facilitating precise diagnosis and surgical planning.

A recent study published in The British Journal of Radiology highlighted the efficacy of 3D mammography (tomosynthesis) in detecting breast cancer more accurately than traditional 2D mammograms. The ability to view tissue layers in 3D reduces the chances of false positives and negatives, leading to better patient care.3

3D imaging is also crucial in minimally invasive surgeries, allowing surgeons to navigate complex anatomical structures with enhanced precision. This leads to reduced recovery times and improved patient outcomes. Recent advancements include the integration of 3D imaging with augmented reality (AR), enabling surgeons to visualize internal organs superimposed on the patient's body during procedures.4

Transforming Design and Production

In the industrial sector, 3D imaging serves various purposes, such as quality control, reverse engineering, and product design. Techniques like laser scanning and structured light scanning capture intricate geometries of components, aiding in defect detection and ensuring adherence to product specifications. The automotive and aerospace industries extensively use 3D imaging for designing and inspecting critical parts.5

3D imaging also plays a crucial role in construction and architecture. Building information modeling (BIM) utilizes 3D imaging to create detailed digital representations of construction projects. This enhances collaboration among architects, engineers, and contractors, leading to more efficient project management and reduced costs.6

Preserving Cultural Heritage and Archaeology

Preserving cultural heritage and archaeological sites has benefited immensely from 3D imaging technologies. The use of high-resolution 3D scans of artifacts, monuments, and excavation sites has allowed researchers to analyze and share detailed models without harming the original objects.7

3D imaging has led to the development of virtual museums and exhibitions, allowing for the widespread accessibility of cultural heritage to a global audience. These digital archives ensure that even if physical artifacts are lost or damaged, their detailed replicas can be preserved indefinitely.

Immersive Entertainment Experiences

The entertainment industry has adopted 3D imaging to heighten the realism and immersive quality of visual content. In film and video game production, 3D imaging is employed to craft true-to-life characters and environments. Motion capture technology, which records actors' movements and translates them into digital models, facilitates the creation of lifelike animations.

Virtual reality (VR) and AR rely heavily on 3D imaging to create immersive experiences. 3D imaging has significantly improved the fidelity of VR environments, enhancing user engagement and interaction. These technologies are also being explored for educational purposes, providing interactive learning experiences in medicine, engineering, and history.8

Consumer Electronics and Mobile Applications

3D imaging has become a part of consumer electronics, especially smartphones. Devices with depth sensors and multi-lens cameras can capture 3D images, enabling features like facial recognition, AR applications, and improved photography. The introduction of LiDAR technology in smartphones has expanded the capabilities of mobile 3D imaging, allowing for more accurate depth mapping and object detection.9

In retail, applications such as virtual fitting rooms and augmented product visualization are becoming more common, enhancing the consumer shopping experience. A recent IEEE report highlighted the growing use of 3D imaging in e-commerce, where customers can visualize products in their environment before purchasing.10

Environmental 3D Insights

In environmental science and geology, 3D imaging is critical in monitoring and studying natural phenomena. Technologies such as remote sensing and 3D laser scanning allow scientists to map terrain, study geological formations, and track environmental changes over time.2

Challenges and Considerations

Despite its vast potential, 3D imaging faces several challenges that must be addressed to maximize its effectiveness and accessibility. One notable challenge is the high cost associated with 3D imaging equipment and software, which can be a barrier, especially for small businesses and institutions. Although prices are gradually decreasing, the initial investment remains a substantial obstacle.2

Another challenge is data management. The data generated by 3D imaging systems is often vast and complex, requiring robust storage, processing, and management solutions. Efficiently handling these large datasets can be challenging, particularly in real-time applications.2

Technical complexity also poses a challenge, requiring specialized knowledge and training for operation and interpretation. This complexity can hinder the adoption of 3D imaging technologies, especially in fields with limited access to skilled professionals.2 Additionally, the lack of standardization in 3D imaging technologies and protocols results in compatibility issues, as well as data quality and interpretation inconsistencies. Establishing industry standards will facilitate broader adoption and interoperability.

Overcoming these challenges requires collaborative efforts from industry stakeholders, researchers, and policymakers to develop cost-effective solutions, enhance data management practices, and establish standardized protocols.

Future Prospects and Conclusion

The field of 3D imaging will continue to advance, driven by continuous progress in sensor technology, artificial intelligence, and computing power. These advancements are expected to enhance the precision and applications of 3D imaging. Emerging fields such as 4D imaging, which adds the temporal dimension to 3D models, are expected to provide even deeper insights and more dynamic visualizations.1

The ongoing integration of AI and machine learning will further augment the capabilities of 3D imaging, making it an indispensable tool in scientific research, industrial applications, and everyday life.

More from AZoOptics: Applications of Raman Spectroscopy in Neuroscience

References and Further Reading

  1. Gilbreath, G. C. (2012). From Wheatstone to Cameron and beyond: overview in 3-D and 4-D imaging technology. Optical Engineering51(2), 021102. https://doi.org/10.1117/1.oe.51.2.021102
  2. Liu, Y., Pears, N., Rosin, P. L., & Huber, P. (Eds.). (2020). 3D Imaging, Analysis and Applications. Springer International Publishing. https://doi.org/10.1007/978-3-030-44070-1
  3. Sudhir, R. et al. (2020). Diagnostic accuracy of contrast-enhanced digital mammography in breast cancer detection in comparison to tomosynthesis, synthetic 2D mammography and tomosynthesis combined with ultrasound in women with dense breast. The British Journal of Radiology, 20201046. https://doi.org/10.1259/bjr.20201046
  4. Sadeghi, A. H., Bakhuis, W., Van Schaagen, F., Oei, F. B. S., Bekkers, J. A., Maat, A. P. W. M., Mahtab, E. A. F., Bogers, A. J. J. C., & Taverne, Y. J. H. J. (2020). Immersive 3D virtual reality imaging in planning minimally invasive and complex adult cardiac surgery. European Heart Journal - Digital Health1(1), 62–70. https://doi.org/10.1093/ehjdh/ztaa011
  5. Javaid, M., Haleem, A., Pratap Singh, R., & Suman, R. (2021). Industrial Perspectives of 3D scanning: Features, Roles and it's Analytical Applications. Sensors International, 100114. https://doi.org/10.1016/j.sintl.2021.100114
  6. Jin, Y., Seo, J., Lee, J. G., Ahn, S., & Han, S. (2020). BIM-Based Spatial Augmented Reality (SAR) for Architectural Design Collaboration: A Proof of Concept. Applied Sciences10(17), 5915. https://doi.org/10.3390/app10175915
  7. Simou , S., Baba , K., & Nounah , A. (2022). The integration of 3D technology for the conservation and restoration of ruined archaeological artifacts. History of Science and Technology12(1), 150-168. https://doi.org/10.32703/2415-7422-2022-12-1-150-168
  8. Alzahrani, N. M. (2020). Augmented Reality: A Systematic Review of Its Benefits and Challenges in E-learning Contexts. Applied Sciences10(16), 5660. https://doi.org/10.3390/app10165660
  9. Wang, C.-W., & Peng, C.-C. (2021). 3D Face Point Cloud Reconstruction and Recognition Using Depth Sensor. Sensors21(8), 2587. https://doi.org/10.3390/s21082587
  10. D. Ram, B. Roy and V. Soni. (2022). A Review on Virtual Reality for 3D Virtual Trial Room.  IEEE World Conference on Applied Intelligence and Computing (AIC). pp. 247-251, https:/doi.org/10.1109/AIC55036.2022.9848914
