Wide Field of View with the New Covert Surveillance Lens by Resolve Optics Ltd.

Designed for use with 7mm (1/4-inch) diameter remote head cameras, the Model 230 Covert Surveillance Lens from Resolve Optics is very small yet produces a broadcast quality image.

The unique design of the Model 230 enables it to be inserted in a small hole for easy concealment. The f/5.6 lens achieves a wide field of view with minimal distortion by utilising micro elements in an innovative optical design.

With a diameter of just 4.5 to 7.2 mm and measuring 41 mm from the tip of the lens to the camera mount the Model 230 lens can be used in a wide variety of covert situations. The conical shape of the lens makes installation easy. The small size and high performance of the Model 230 means that it can also be placed in a keyhole or positioned behind a 1mm pinhole and still give excellent results.

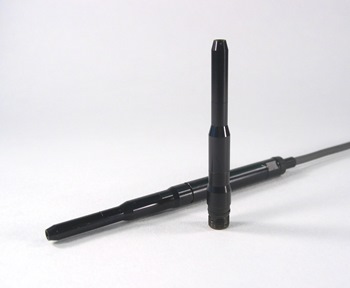

Model 230 Covert Surveillance Lens from Resolve Optics.

Providing high throughput across the spectral waveband 400-700 nm the covert surveillance lens produces clear sharp images (400 TV lines) with very little distortion over its 94-degree field of view. The camera mount on the covert surveillance lens is an M6.25 x 0.5 thread that will fit a ¼ inch (7mm diameter) CCD remote camera head. Mount adapters can be provided for customer specified cameras.

For further information on the Model 230 covert surveillance lens please visit http://www.resolveoptics.com/230-000.htm or contact Resolve Optics Ltd. on telephone +44-1494-777100/email [email protected].

Over the last 20 years - Resolve Optics Ltd. has established a strong international reputation for its ability to reliably design and supply lenses and lens systems that generate high quality images from even the most demanding applications. Drawing upon an experienced team of optical designers, Resolve Optics Ltd. has developed the rare capability to produce quantities of high performance, mounted lenses with the look, feel and quality equivalent to the best professional photographic lenses.
