Editorial Feature

Ultrafast Nonlinear Optics for Laser Pulse Compression

In the past 50 years, the pursuit of shorter laser pulses has been the driving force in advancing ultrafast science, with laser pulse compression techniques now enabling the generation of single-digit femtoseconds and even attosecond pulse durations. Ultrafast nonlinear optics plays a pivotal role in these advancements, enabling us to manipulate and measure these ultrashort pulses and unlocking new frontiers in our understanding of ultrafast phenomena.

Laser Pulse Compression, Nonlinear Optics, Ultrafast Nonlinear Optics

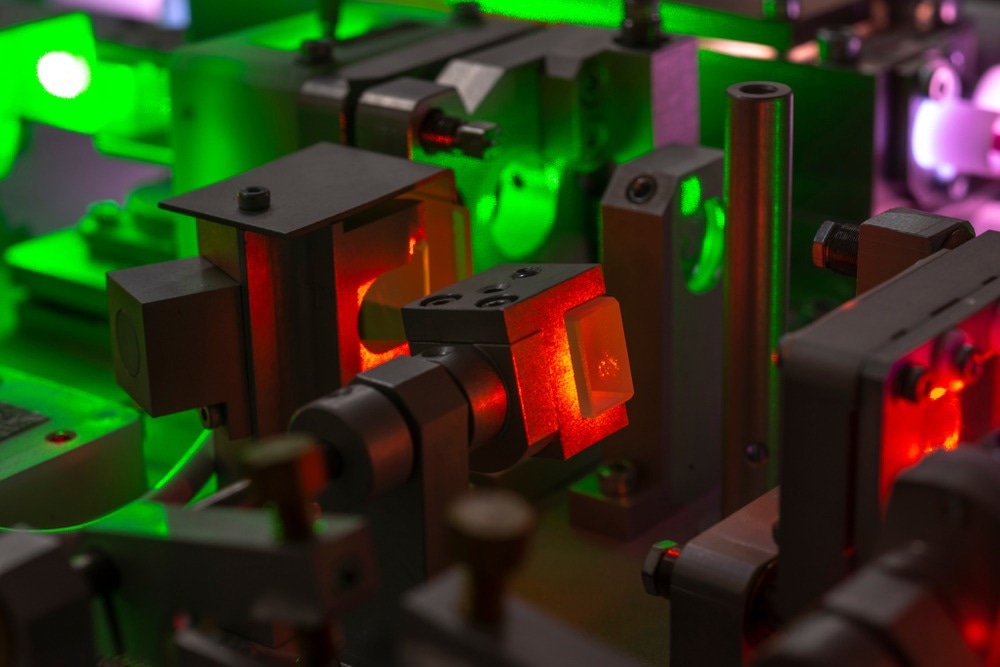

Image Credit: Yury Zap/Shutterstock.com

Laser Pulse Compression: An Overview

Laser pulse compression operates on the principle of delaying specific frequency components within the pulse spectrum to achieve overall temporal recompression.

Laser pulse compression can be achieved through linear and nonlinear methods. Linear laser pulse compression relies on dispersive components, such as prisms or gratings, to act as temporal delay lines for individual frequency components, facilitating pulse duration control.

Nonlinear laser pulse compression involves passing the pulse through a nonlinear medium to broaden the spectrum, typically through self-phase modulation. The chirped, spectrally broadened pulse is then temporally compressed using linear laser pulse compression techniques.

Why Shorter Laser Pulses Are Better?

The pursuit of shorter pulse durations is motivated by the enhancements in both peak intensity and temporal resolution provided by ultrashort pulses. Compressing the pulse in time increases its peak power exponentially for a given pulse energy. Focusing these high peak power pulses enhances nonlinear optical effects, which scale with intensity raised to a power >1.

For example, two-photon fluorescence (TPEF) and second harmonic generation (SHG) have quadratic dependence on intensity. As a result, reducing the pulse duration by 10x can increase TPEF emission by 100x. This enables greater imaging depth and contrast for nonlinear microscopy.

Beyond microscopy, ultrafast phenomena in molecules, semiconductors, and chemical reactions often occur on femtosecond timescales, necessitating pulse durations shorter than the timescale of interest. Thus, there is a continual demand for advancement to even shorter pulses to resolve faster processes.

Ultrafast Nonlinear Methods for Laser Pulse Compression

Ultrafast nonlinear optics deals with extremely short laser pulses, typically in the femtosecond (10-15 seconds) or attosecond (10-18 seconds) range, generated by mode-locked lasers. Researchers can further compress and enhance these pulses by leveraging nonlinear optical effects, achieving remarkable intensity and brevity.

Ultrafast nonlinear laser pulse compression can be achieved through various methods, and one common approach involves employing hollow-core fibers (HCFs). HCFs are optical fibers characterized by a central hollow core enveloped by a thin cladding typically made from a material exhibiting a high nonlinear refractive index, such as silica or sapphire.

When a laser pulse travels through an HCF, it interacts with the cladding, leading to self-phase modulation (SPM) broadening the pulse's spectrum. This expanded spectrum can be subsequently recompressed with the aid of dispersive elements.

Another ultrafast nonlinear laser pulse compression strategy involves multipass cells, devices designed to bounce a laser pulse repeatedly back and forth through a nonlinear material. This extended interaction path between light and material enhances the efficiency of SPM.

Multipass cells are particularly advantageous for compressing high-energy laser pulses, as they have demonstrated the capability to compress laser pulses to femtosecond durations with energies exceeding 100 joules.

Recent Research and Developments in Nonlinear Ultrafast Laser Pulse Compression

Simple and Cost Effective Soliton-Driven Ultrafast Laser Pulse Compression and Supercontinuum Generation

Yb-based ultrafast lasers have gained popularity due to their thermal efficiency, affordability, and flexibility in adjusting repetition rates and pulse energies. However, their pulse durations are typically not shorter than 100 fs, requiring external laser pulse compression for certain applications. Existing laser pulse compression and supercontinuum generation (SCG) techniques are often inefficient and complex, limiting widespread adoption.

A study published in Light: Science & Applications proposed a cost-effective solution for SCG and laser pulse compression. They demonstrated that optical solitons can form during the propagation of strong ultrafast laser pulses in periodic layered Kerr media (PLKM). This soliton formation results from the balance between linear diffraction and nonlinear Kerr self-focusing, enhancing SCG efficiency and supporting long-distance nonlinear light-matter interaction.

Confining beam propagation in these solitons enables spatio-spectral homogeneity and high spatial quality, with over 85% compression efficiency. These compressed pulses drive high harmonic generation, producing coherent extreme ultraviolet and soft X-ray light from a gas target.

The advantages of this method include its simplicity, cost-effectiveness (no need for vacuum systems or complex stabilization setups), flexibility for use with various laser energies and powers, high efficiency (up to 85%), and stability. It can be widely adopted in labs using ultrafast lasers, even for researchers without specialized knowledge in constructing broadband laser systems.

Nonlinear Laser Pulse Compression of High-Energy Ultrafast Thin-Disk Amplifier

In a study published in Optics Express, researchers have developed a high-energy laser pulse compression system using a Yb-based ultrafast thin-disk amplifier and nonlinear compression. This system can produce high-energy pulses of up to 200 millijoules at a 5 kHz repetition rate, making it valuable for ultrafast science applications.

The researchers achieved pulse durations below 500 femtoseconds by implementing nonlinear broadening in a gas-filled Herriott-type multipass cell. This approach enabled high pulse energies and maintained excellent optical efficiencies.

The researchers demonstrated the scalability of this method by broadening 64 mJ pulses with argon, achieving compression of 32 fs, and subsequently increasing the pulse energy to 200 mJ using helium, all while keeping compressibility below 50 fs.

The significance of this study lies in creating high-energy laser pulses with sub-50 fs durations, which have substantial potential for applications such as THz generation, laser plasma X-ray sources, high harmonic generation, and laser-plasma electron acceleration. These shorter, high-energy pulses can significantly enhance the performance of these applications, particularly in laser-driven X-ray generation.

Future Outlooks

Ultrafast nonlinear optics enables precise laser pulse compression, advancing our understanding of ultrafast processes in various fields. Modern pulse shapers and optimization algorithms facilitate user-friendly pulse compression systems with the potential to achieve intense attosecond pulses for groundbreaking research in attochemistry and lightwave electronics.

More from AZoOptics: Nonlinear Optical Phenomena in Photonic Crystals

References and Further Reading

Pfaff, Y., Barbiero, G., Rampp, M., Klingebiel, S., Brons, J., Teisset, C. Y., ... & Metzger, T. (2023). Nonlinear pulse compression of a 200 mJ and 1 kW ultrafast thin-disk amplifier. Optics Express, 31(14), 22740-22756. https://doi.org/10.1364/OE.494359

Schulte, J., Sartorius, T., Weitenberg, J., Vernaleken, A., & Russbueldt, P. (2016). Nonlinear pulse compression in a multi-pass cell. Optics Letters, 41(19), 4511-4514. https://doi.org/10.1364/OL.41.004511

Thomson, R., Leburn, C., & Reid, D. (Eds.). (2013). Ultrafast nonlinear optics (pp. 323-350). New York: Springer. https://link.springer.com/book/10.1007/978-3-319-00017-6

Zhang, S., Fu, Z., Zhu, B., Fan, G., Chen, Y., Wang, S., ... & Tao, Z. (2021). Solitary beam propagation in periodic layered Kerr media enables high-efficiency pulse compression and mode self-cleaning. Light: Science & Applications10(1), 53. https://doi.org/10.1038/s41377-021-00495-9

Dr. Rüdiger Paschotta. (2023). Pulse Compression [Online]. Available at: https://www.rp-photonics.com/pulse_compression.html

Biophotonic Solutions. (2015). Pulse Compression for Ultrafast Nonlinear Microscopy - White Paper. [Online]. Available at: https://www.ipgphotonics.com/en/560/Widget/Pulse+Compression+for+Ultrafast+Nonlinear+Microscopy+%28White+Paper%29.pdf

Karam, T. (2020). Ultrafast multipass cells for pulse compression. [Online]. Available at: https://www.laserfocusworld.com/optics/article/14185242/ultrafast-multipass-cells-for-pulse-compression
