Understanding Snell’s Law in Light Refraction

Snell's Law, or the law of refraction, describes the behavior of light rays as they cross the boundary between two transparent media. Specifically, it predicts the degree of bending light undergoes when moving from one medium to another. This understanding is essential for applications in materials science, physics, and optics.1,2

Understanding Snell’s Law in Light Refraction

Image Credit: BlackFarm/Shutterstock.com

Definition and Principles of Snell's Law

Snell's Law relates the sines of the angles of incidence and transmission to the refractive indices of each medium at the boundary. It applies to all materials across all phases of matter, with angles measured from the normal line at the interface.2,3

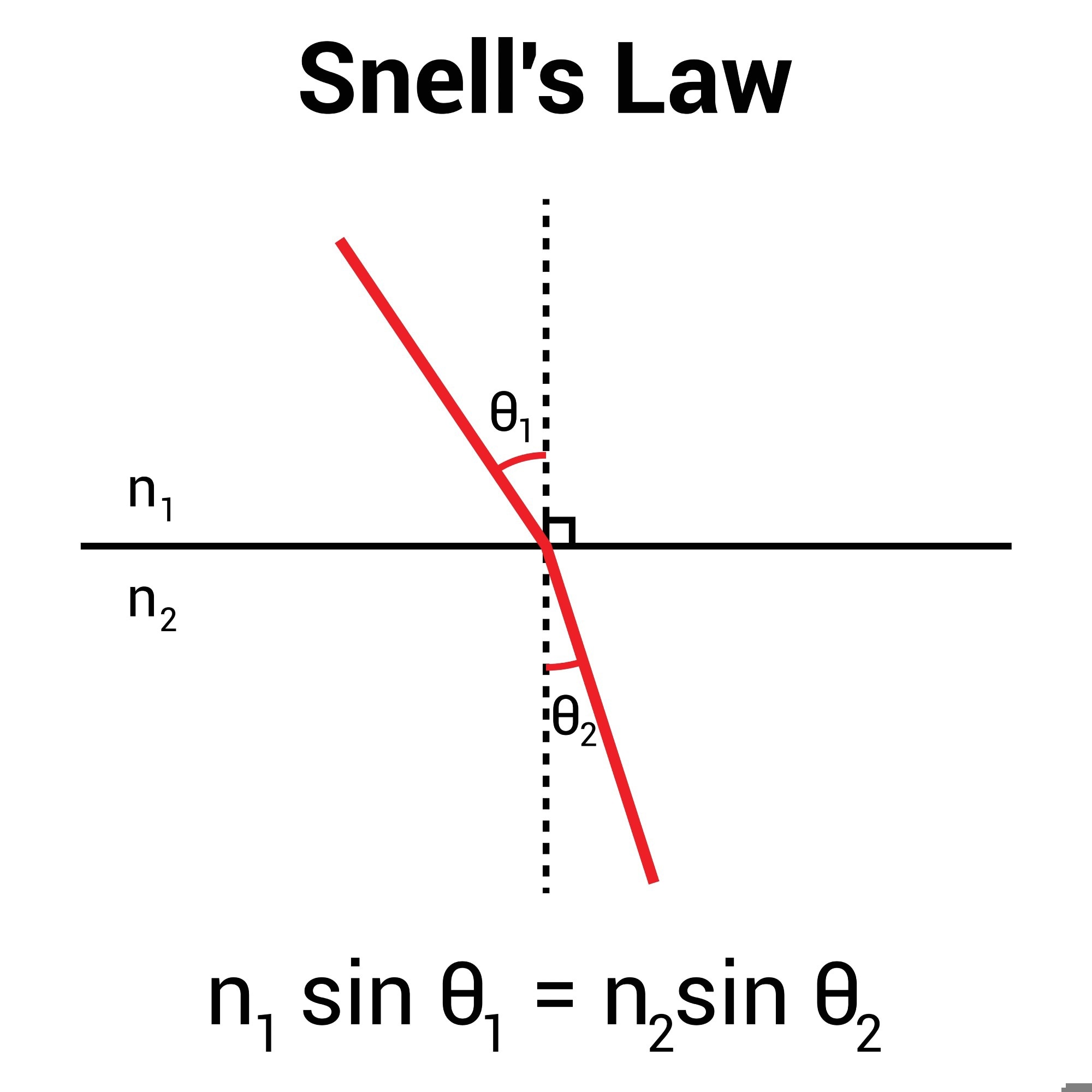

The law states that the incident ray, refracted ray, and the normal to the interface all lie in the same plane. It is expressed mathematically as n1 sin θ1 = n2 sin θ2, where θ1 and θ2 are the angles between the incident ray and the normal and between the refracted ray and the normal, respectively.2,3 Here, n1 and n2 represent the refractive indices of media 1 and 2, respectively.

The law predicts that a light ray bends toward the normal in the medium with a higher refractive index (optically denser medium).2,3 This principle also holds for non-planar interfaces, considering the normal at the point of incidence as perpendicular to the tangent plane. Snell's Law can be derived from the principle that light speed in a dielectric medium is inversely proportional to the medium's refractive index.2,3

Snell’s Law in Light Refraction

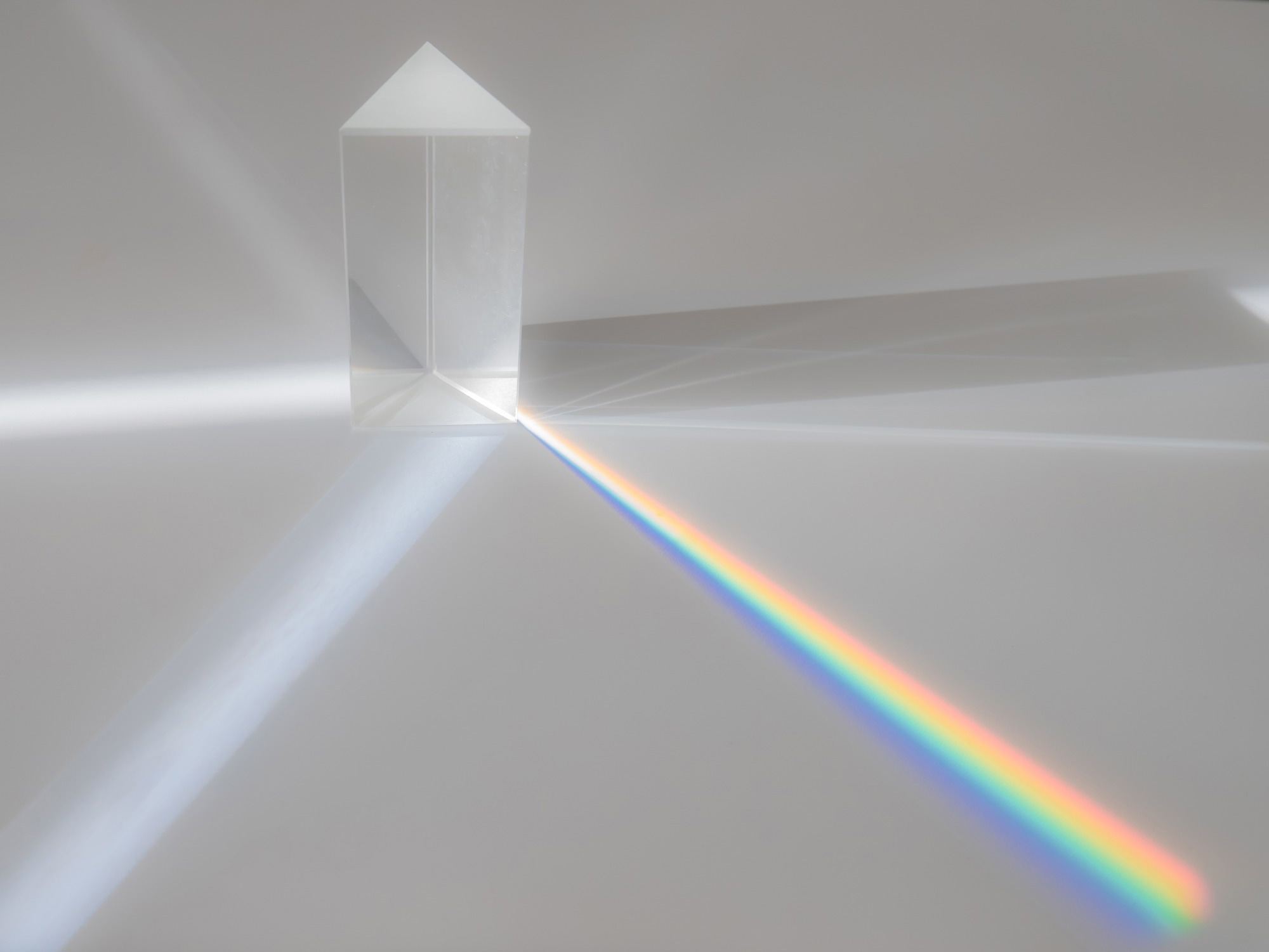

Image Credit: zizou7/Shutterstock.com

Mechanism of Light Refraction

Light can be understood as a ray, wave, or particle (photon). Snell's Law arises from the wave nature of light, which effectively describes its interaction with materials. Energy conservation is fundamental to understanding light’s behavior at an interface: the energy of light in the first medium must remain the same as in the second.3

This energy of light is described as E = hf, where h is Planck’s constant and f  is the wave frequency. In a vacuum, this can be further expressed as E = hc/λ, where c is the speed of light in a vacuum, and λ is the wavelength of light in a vacuum. When light enters a material medium, its speed decreases to v = c/n, where n is the refractive index of the medium, and its wavelength correspondingly changes to λ′ = λ/n. However, the frequency f remains constant across media to conserve energy, as the boundary cannot create or destroy waves.3

The wave speed change in a material medium, which depends on the refractive index, is caused by interactions between the light and the electrons within the material. These electrons, which may be loosely or tightly bound to atomic nuclei, interact with the light, causing it to slow down and refract as it enters the new medium.3

An extension of Snell’s Law involves total internal reflection (TIR) and the critical angle. The critical angle, defined as the angle of incidence at which the angle of refraction is 90 °, can be calculated using θc = sin−1 [n1/n2].

When the incident angle exceeds this critical angle, light is entirely reflected back into the first medium. TIR occurs when light moves from a medium with a higher refractive index (slower speed) to one with a lower refractive index (faster speed).3,4

Snell's Law of Refraction

Applications of Snell’s Law

Fiber optics: A key application of Snell's Law is fiber optics, which are utilized for diverse applications, including data transmission in high-speed servers and telecommunications.

Optical fibers are cylindrical waveguides that transmit light along the fiber axis.3,4 Each fiber consists of an inner core surrounded by a cladding layer with a lower refractive index. This difference in refractive index allows light pulses to stay confined within the inner core through TIR.3,4

Optical Devices: Lenses are transparent materials with curved surfaces that use refraction to direct light paths.

A converging (convex) lens is thicker at the center, causing light rays to converge at a focal point, a principle applied in devices like cameras, glasses, microscopes, and certain types of telescopes for magnification.4 In contrast, a diverging (concave) lens is thinner at the center, causing light rays to refract outward and spread apart as they pass through.

Both types are used in corrective eyewear to address specific vision issues.4

Lens Design: The refractive index determines how much light bends as it passes through different materials. A light beam entering a material with a higher refractive index, such as glass, bends more than one entering a lower-index material like water. This bending occurs upon both entry and exit from the higher-index material.

While the exit angle equals the entry angle, the light beam is laterally shifted. This refraction effect is crucial in lens design for precisely controlling the focal point of imaging light rays.5

Imaging Technologies: Emerging applications of Snell’s Law involve the evaluation and design of photonic materials, such as nanostructured materials, photonic crystals, and photonic metamaterials. These materials enable specific photonic properties that are not achievable with natural materials. They are used in creating holographic augmented reality displays and "perfect lenses."6

Innovations and Future Directions

In computational optics, Snell’s Law enables the precise design and simulation of complex optical systems. Bulk three-dimensional (3D) metallic/dielectric metamaterials (MTMs) exhibit negative refractive indices. MTMs are artificial structures with customizable electromagnetic (EM) properties, such as permeability, refractive index, and permittivity.7,8

The concept of metasurfaces (MSs), the two-dimensional (2D) version of MTMs, applies generalized Snell’s law of reflection and refraction and includes cascaded transmit-array MSs and Huygens MSs. Both 2D MSs and 3D MTMs are used at microwave frequencies for beamforming and lensing applications.8

In macro augmented reality head-mounted display (AR-HMD) optical combiner systems, Snell’s Law is fundamental to light bending and reflection in free-form prism techniques, standard visual approaches, and geometric optical waveguides.9

A study published in Earthquake Research Advances proposed the application of Snell’s law in reflection ray tracing using the multistage fast marching method (MFMM). This approach used linear interpolation to compute incident travel times at interface points, then applied Snell’s Law to calculate reflection travel times at grid points just above the interface.10

Conclusion

Snell’s Law is fundamental to understanding light refraction and is essential in applications ranging from fiber optics to lens design and emerging photonic technologies. As computational optics advances, Snell’s Law remains crucial for developing innovative imaging technologies and augmented reality systems, supporting diverse scientific and technological applications in light manipulation.
