Hollow Motorized Rotary Actuators

ServoBelt Rotary Stage offers an economical solution for a variety of light and medium-duty rotary motion applications.


It features large clear aperture of 150 mm and provides arc-second resolution when driven from a micro-stepping or brush-less servomotor controller.

The low profile design is made possible by the use of compact precision bearing. The rotating carriage of the stage provides unlimited motorized rotation angle of the load up to 50 kg and has large clear aperture to allow the passage of the optical path or cables directly through the stage.

The main body of the stage is made from lightweight anodized aluminum and can attach directly to an optical table or moving linear or XY actuators and can be mounted at any orientation.

ServoBelt stage uses belt drive to achieve high rotating speed.

Lightweight design makes it easy to incorporate this rotary stage into high dynamics XY-Theta multi-axes systems.


  • Large center aperture 150 mm
  • Low profile 39 mm
  • Brushless servo motor/encoder driven
  • Unlimited rotation
  • High speed 300 RPM
  • Home switch
  • Top/bottom motor mount option

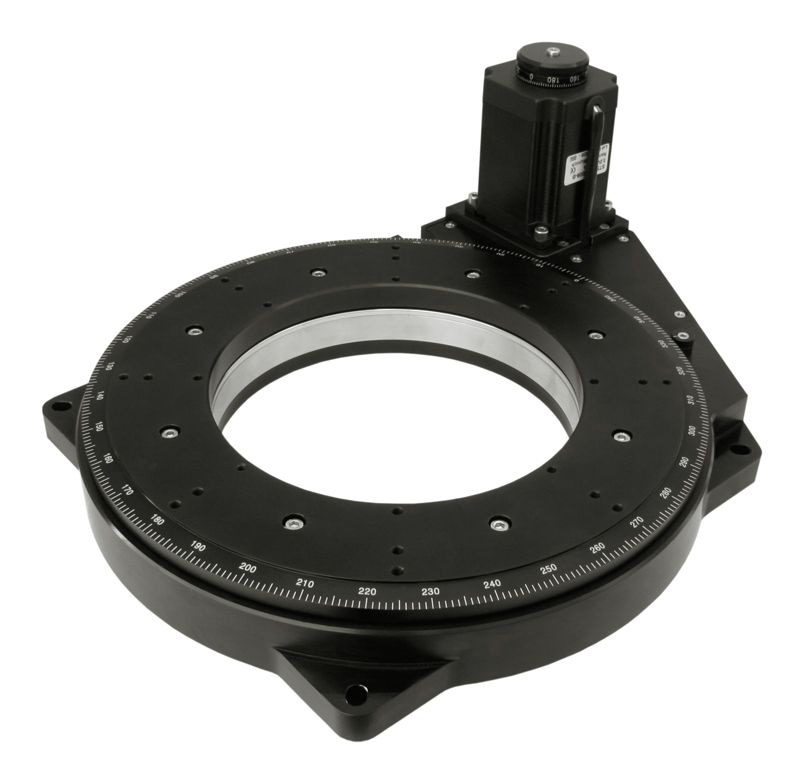

Large Aperture 150 mm ServoBelt-150 rotary table

Source: http://www.intellidrives.com/
