Optical cubes are considered the quiet directors of fluorescence systems, leading excitation and emission light through a formal arrangement of filters and mirrors. Following an efficient assembly procedure allows users to achieve accurate spectral performance, a great signal-to-noise ratio, and dependable imaging results.

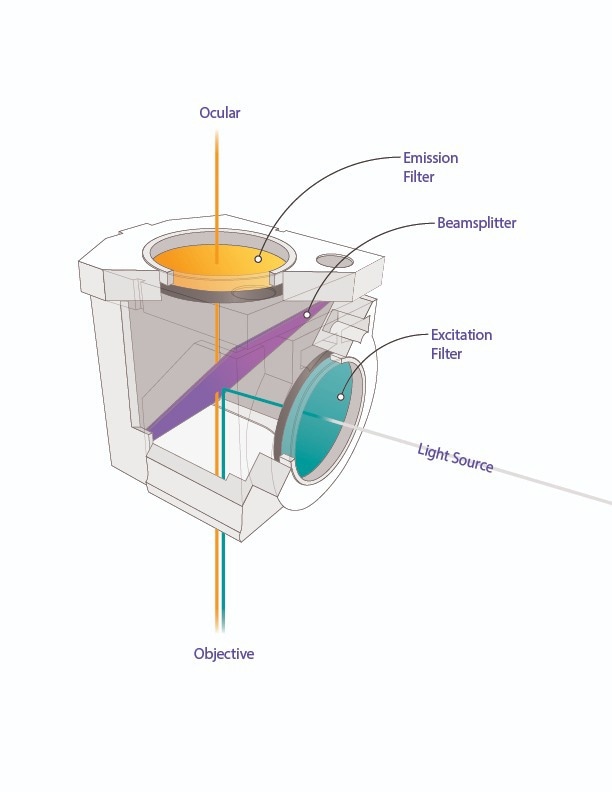

Filter cubes are generally made up of three core elements:
- Excitation filter
- Dichroic mirror
- Emission filter
Assembly Principles
- Cleanliness: Ensure the assembly environment is free of contamination to guarantee ideal optical performance.
- Proper orientation: Each filter should be positioned according to the defined specifications to supply precise light management.
- Secure, gentle mounting: Non-stressful mounting forces should be applied in a controlled manner to ensure stability while protecting components.
- System compatibility: All elements should be verifiably aligned with the system’s optical and mechanical requirements to guarantee reliable, high-quality operation.
Cube Assembly Instructions
Looking for a Different Size?
Chroma recognizes that its standard offerings may not always align with a client’s specific needs. If additional mounting options or measurements are required, Chroma’s team is on hand to assist with all optical filter requirements.
