What are Photonic Integrated Circuits? Uses and Applications

In our daily lives, the core technologies behind smartphones, computers, and medical diagnostic tools hinge on integrated circuits (ICs). Traditional electronic ICs, however, encounter limitations in bandwidth, speed, and energy efficiency because they rely on the movement of electrons.

To address these challenges and propel performance to new heights, researchers and engineers are increasingly exploring Photonic Integrated Circuits (PICs). These circuits harness the superior speed and efficiency of photons over electrons, marking a significant advancement in the evolution of modern technology.

Understanding Photonic Integrated Circuits

  • Transitioning from Electronics to Photonics: Unlike conventional ICs that transmit data using electrons, Photonic Integrated Circuits (PICs) leverage photons for data processing, which is both faster and more efficient. By capitalizing on the inherent benefits of light, such as reduced interference and high-speed transmission, PICs signify a transformative shift in the technology of integrated circuits.
  • Components and Functionality: A typical optical IC consists of laser diodes, filters, waveguides, and gain media integrated on a flat substrate, often a silicon wafer. Waveguides, which function as the optical counterpart of metallic cables, modify light using concepts such as total internal reflection. This arrangement allows for high-speed transmission with minimum energy loss, making PICs extremely powerful and efficient.
  • Challenges and Progress: Despite their enormous potential, PICs are still in the developmental stage, with greater costs and restricted availability compared to conventional ICs. In addition, PICs have bigger physical footprints, although still on a micron scale. However, continuous advancements and the incorporation of micro-optics are driving the miniaturization of Photonic Integrated Circuits (PICs), paving the way for more compact and lightweight systems. This progress is enhancing their accessibility and broadening their potential applications.

Applications of Optical ICs

  • Communication: PICs are essential in optical communications, providing higher reliability and transmission capacity than standard ICs, particularly in fiber and free-space optical communication systems.
  • Optical Metrology: PICs can improve precision and sensitivity in optical metrology fields such as LIDAR and fiber-optical sensors, leading to breakthroughs in measurement and detection technologies.
  • Quantum Computing: The unique features of PICs make them potential candidates for quantum computing and cryptography, providing breakthroughs in secure communication and computational power.
  • Biosensing: Photonic-integrated chip biosensors can transform medical diagnostics by allowing for quick, label-free testing with remarkable sensitivity. These sensors, based on silicon nitride substrates, detect minute changes in refractive index, delivering real-time and dependable results critical for healthcare applications.

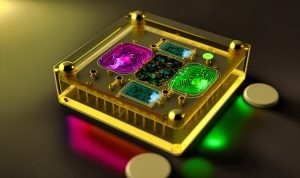

Optical IC-based lab-on-a-chip biosensors deliver crucial real-time and reliable results essential for medical diagnostics.

Optical IC-based lab-on-a-chip biosensors deliver crucial real-time and reliable results essential for medical diagnostics. Image Credit: Shanghai Optics

As research and development in the field of photonic integrated circuits is progressing, the revolutionary potential of these technologies is becoming increasingly evident.

From revolutionizing telecommunications to allowing cutting-edge biosensing applications, PICs represent a cornerstone of future innovation, set to change different industries and improve the way we interact with technology.

This information has been sourced, reviewed and adapted from materials provided by Shanghai Optics.

For more information on this source, please visit Shanghai Optics.
