Exploring Total Internal Reflection (TIR): Principles and Real-World Applications

Total Internal Reflection (TIR) is a fascinating physics phenomenon in which light transitions from a denser to a less dense medium and then reflects into the denser medium at a precise angle known as the critical angle.

This article looks into the physics of TIR and its numerous practical applications in optics, which influence technological progress.

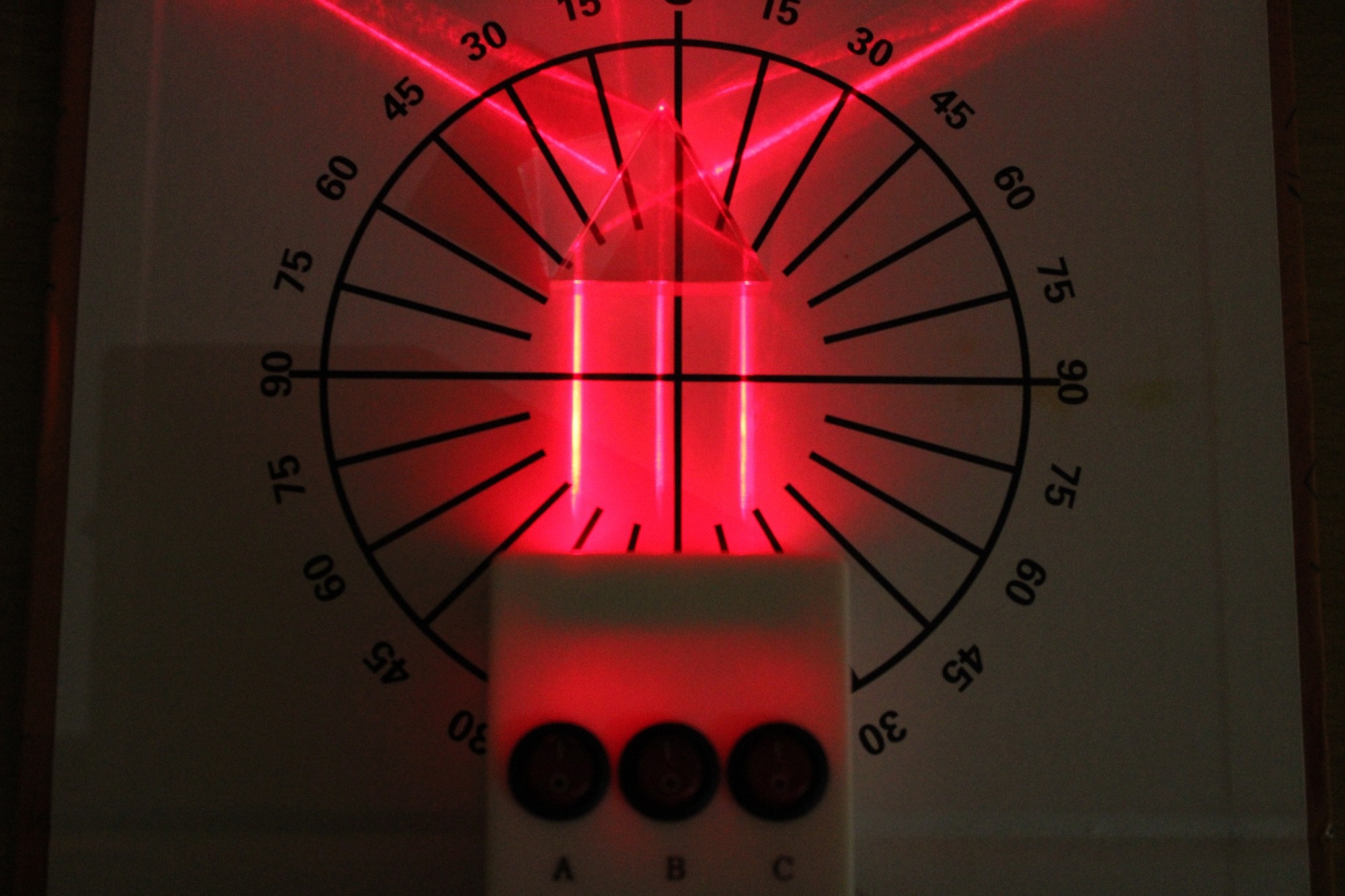

Optical box experiment showing behavior of laser beam light through a glass prism. Total internal reflection.

Image Credit: Kennedy Kariuki/Shutterstock.com

Understanding Total Internal Reflection

Total Internal Reflection happens when the angle of incidence exceeds the critical angle, causing total reflection instead of refraction. This often occurs at the interface of two transparent media, with the incident light beam moving from a medium with a higher refractive index to one with a lower refractive index.

Remarkably, the critical angle changes depending on the specific media involved and may fluctuate slightly with wavelength and color due to the influence of refractive indices.

Applications of Total Internal Reflection: Mirage

Total Internal Reflection plays an important role in the formation of mirages, which are mesmerizing optical illusions seen often during hot weather. The temperature difference between the ground and the air above creates conditions favorable to TIR.

As a result, light from distant objects undergoes TIR when it moves from cooler, denser air into warmer, less dense air, resulting in an inverted image that observers perceive.

Diamond Cutting

The fascination with diamonds is greatly attributed to the precision art of diamond cutting, which utilizes TIR to magnify their brilliance. Through expert shaping, craftsmen harness TIR to create multiple internal reflections, intensifying the sparkle and luminosity of gemstones. The natural refractive index of diamonds is crucial in this process, significantly enhancing their visual allure.


Prisms are versatile optical manipulation tools that use TIR for a variety of applications. When light enters a prism at a given angle, it experiences TIR at 90° or 180°, allowing for processes such as dispersion and image rotation without changing the object’s dimensions.

Prisms are critical components of optical systems, contributing to advancements in imaging and light manipulation.

Optical Fibers

The field of optical communication greatly benefits from the effectiveness of TIR in optical fibers. Made from materials such as glass or quartz, these fibers utilize TIR to ensure efficient data transmission.

By featuring a core with a higher refractive index surrounded by cladding with a lower refractive index, optical fibers minimize signal loss as light signals are repeatedly reflected internally. This design renders optical fibers essential for high-speed data, signal, and video transmission, maintaining robust performance even under bending or twisting.

TIR is a captivating interplay of physics and practicality that provides insights into light manipulation while also permitting a wide range of technological advancements. From creating captivating mirages to transforming data transmission through optical fibers, TIR continues to enlighten different aspects of our modern world.

This information has been sourced, reviewed and adapted from materials provided by Shanghai Optics.

For more information on this source, please visit Shanghai Optics.
