Bench Top Vibration Isolation Platform

At the compact size of just 12 inches deep and wide and only 4.6 inches tall, the BM-10 bench top device can be expected to achieve results that are 10-100 times better than a full size air table. In addition to this, the device does not need electricity or air!

This device offers revolutionary technology that is slim, ecological, convenient, and user-friendly while remaining proficient in performing at the highest levels of standard.

The BM-10 is simple to use whilst delivering the highest results. Like all of our devices, the isolator can work with our well known 0.5 Hz vertical natural frequency, as well as a 1.5Hz horizontal natural frequency. We offer just these two options. This device is ideal for new generations of small SPM's that demand the best results in extremely compact technology. As well as customizable features to suit different applications, such as cleanroom and vacuum friendly.

See the transmissibility curves below for the expected results of the BM-10 device.

**For International Orders, A Handling Fee of 5% is Added.

. .
Weight: Approximately 35 lb (16 kg)
Dimensions: 12.2” W x 12.2” D x 4.6” H
(310 mm W x 310 mm D x 117 mm H)
Approximate payload weight range:
Model Payload Range* Price**
10BM-10 0 - 10 lb
(0 - 4.5 kg)
$2,655.00
25BM-10 10 - 30 lb
(4.5 - 14 kg)
$2,715.00
50BM-10 30 - 55 lb
(14 - 25 kg)
$2,775.00
75BM-10 50 - 80 lb
(22.5 - 36 kg)
$2,830.00
100BM-10 75 - 110 lb
(34 - 50 kg)
$2,890.00

Performance

  • Vertical frequency is tunable to 0.5 Hz throughout the payload range.
  • Horizontal frequency of 1.5 Hz is achieved at the upper limit of the payload range.
  • At the lower limits of the payload range the horizontal frequency is approximately 2.5 Hz.
  • Horizontal frequencies are weight dependent.

Simple Set-Up and Adjustment

*Customizable payload ranges available, please contact.

Performance Curves

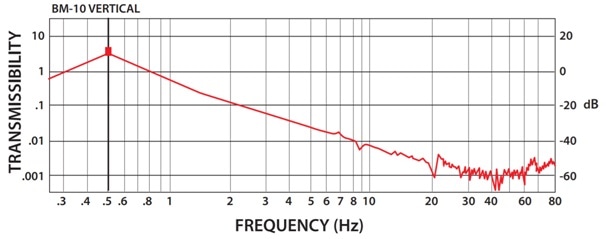

The vertical curve below illustrates the vertical 1/2 Hz result that can be expected from the BM-10 device.

BM-10 device Performance Curve

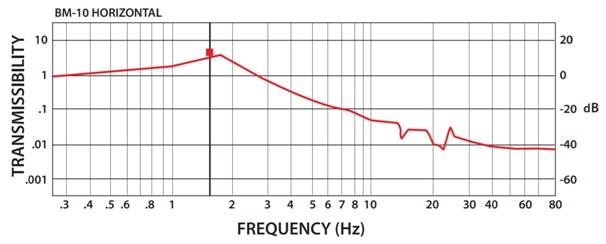

Horizontal curve below, shows the performance that can be expected at natural frequencies as low as 1.5 Hz from the BM-10 device. A result that is considerably better than a standard air table.

BM-10 device Performance Curve

Minus K BM-10 Small Low Height Vibration Isolator-Isolation
