Ellipsoidal Mirrors for X-Ray Diffraction

Optical Surfaces Ltd. is offering high-precision ellipsoidal mirrors that offer unmatched pinpoint focusing for high resolution spectroscopy in the soft and hard X-ray regions.

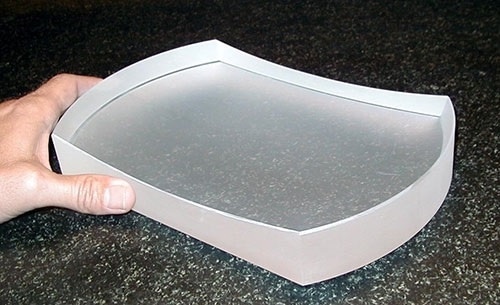

Ellipsoidal mirror for an XRD application (courtesy: Optical Surfaces Ltd.)

Drawing upon skilled craftsmen working in a uniquely stable production environment, Optical Surfaces is able to produce ultra-smooth ellipsoidal mirrors able to deliver an X-Ray Diffraction (XRD) spot that exactly matches your spectrometer detector resolution. As a consequence, the resolution and angular range of XRD measurements can simultaneously be improved. In addition, the pinpoint focusing provided by the ellipsoidal mirrors increases X-ray flux density, resulting in better contrast.

With workshops and test facilities deep underground where temperatures remain constant and vibration is practically non-existent, Optical Surfaces routinely produces ellipsoidal mirrors in a range of materials (Zerodur, BK7, fused silica) with typical surface accuracy of better than lambda/10 (dependent on size and radius) and surface quality of 20:10 scratch dig.

Optical Surfaces can produce ellipsoidal mirrors in a range of shapes (largest dimension up to 400mm) that offer high performance and durable optical coatings that provide excellent image quality.

For further information on high precision ellipsoidal mirrors for X-Ray Diffraction please visit https://www.optisurf.com/index.php/products/conic-sections/ellipsoids/ or contact Optical Surfaces Ltd. on +44-208-668-6126 / [email protected]
