The Ritchey Chrétien (RC) telescope is a highly specialized version of the Cassegrain reflector telescope that offers higher optical precision and clarity. Its innovative design reduces optical distortions, making it an ideal choice for space and ground-based astronomy. With its ability to handle cutting-edge imaging and spectroscopy, the RC telescope has become an indispensable tool for studying the universe.

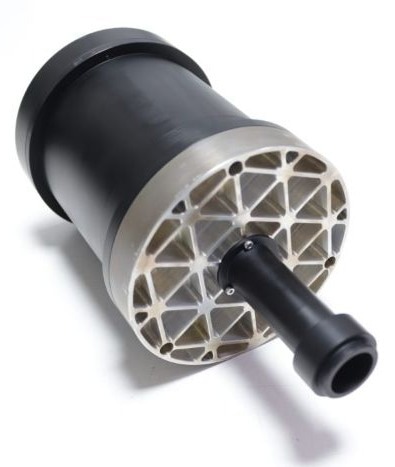

Ritchey Chrétien (RC) Telescope. Image Credit: Avantier Inc.
1. Optical Design
The RC telescope uses two hyperbolic mirrors.
- Primary Mirror: The primary mirror is a concave hyperboloid that collects and focuses incoming light toward the secondary mirror.
- Secondary Mirror: The secondary mirror is a convex hyperboloid that reflects light back through a central hole in the primary mirror to the focal plane.
Technical Features of the Design:
- Hyperbolic Surfaces: The design features hyperbolic surfaces that decrease coma, correct spherical aberration, and reduce astigmatism, resulting in excellent focus across a wide field of view.
- Optical Axis and Field of View: The design maximizes performance alongside the optical axis and allows for vast fields of vision, making it excellent for obtaining high-quality photographs of astronomical objects.
- Focal Plane Location: The focal plane is often situated near the back of the telescope, allowing for direct attachment of devices such as cameras and spectrometers.
- Focal Ratio (f/#): RC telescopes often use high focal ratios (f/8 to f/16) to balance magnification with light-gathering efficiency. The greater focus ratio also minimizes field curvature, which is essential for producing the flat-field imaging required by modern scientific instruments.
2. Optical Performance
RC telescopes are specifically designed to solve a variety of aberrations and performance needs.
- Aberration Correction:
- Coma: Hyperbolic mirrors reduce coma, resulting in point-like stars even at field margins.
- Spherical Aberration: The primary and secondary mirrors have exact geometries that correct spherical aberration throughout the optical system.
- Astigmatism and Field Curvature: Flat-field imaging sensors reduce residual astigmatism and curvature.
- Diffraction Limit: RC telescopes function near the theoretical diffraction limit, relying on light wavelength and aperture size for resolution rather than optical defects.
3. Mechanical Design for Space Applications
Space-based radio telescopes have unique challenges, which are solved through novel design features:
- Lightweight Mirrors: Mirrors such as beryllium in the James Webb Space Telescope and ultra-low-expansion glass in the Hubble Space Telescope help minimize weight and stability in space.
- Structural Stability: The secondary mirror is installed on a lightweight truss or spider assembly to prevent thermal distortions and mechanical vibrations during launch and operation.
- Active Optics: Space RC telescopes often use active optics systems that alter mirrors in real-time to ensure alignment and image quality.
4. Instrumentation and Integration
RC telescopes are designed to accept a wide range of research instruments:
- Cameras: Cameras use CCDs and infrared detectors positioned at the focus plane to capture high-resolution images.
- Spectrographs: Spectrographs analyze distant objects by splitting incoming light into spectral components.
- Adaptive Instruments: Adaptive instruments, such as coronagraphs for planetary imaging and polarimeters for measuring polarized light, are routinely combined.
- Cryogenic Cooling: Infrared-optimized RC telescopes, such as the JWST, require cryogenic cooling to minimize noise and improve sensitivity.
5. Space-Specific Advantages
The RC architecture has several significant benefits for space-based applications:
- Aberration-Free Wide Fields: The RC design provides a corrected field of many arcminutes, making it excellent for studying huge astronomical objects such as galaxies and star clusters.
- Scalability: The design scales to large apertures without increasing aberrations. For example, the Hubble Space Telescope has a 2.4-meter aperture, whereas the James Webb Space Telescope has a 6.5-meter segmented aperture.
- Multi-Wavelength Adaptability: RC telescopes are specialized for UV, optical, and infrared wavelengths with custom coatings and instrumentation.
6. Examples of Advanced Space RC Telescopes
- Hubble Space Telescope (HST):
- Aperture: 2.4 m.
- Focal ratio is f/24.
- Applications include high-resolution optical and UV imaging, spectroscopy of distant galaxies, and exoplanets.
- James Webb Space Telescope (JWST):
- The aperture measures 6.5 meters.
- Focal ratio is f/20.
- Features include segmented beryllium-coated mirrors with active alignment and infrared optimization for studying the early cosmos and planetary atmospheres.
- Chandra X-ray Observatory: Although not an RC design, it uses grazing-incidence optics for X-ray astronomy, using similar alignment and performance concepts.
7. Mathematical Framework
The performance of RC telescopes can be mathematically defined using wavefront error correction, which minimizes wavefront errors for improved performance.
Overall, the Ritchey-Chrtien telescope marks a significant improvement in optical design, allowing astronomers to see and study celestial objects with remarkable clarity and detail.
This information has been sourced, reviewed and adapted from materials provided by Avantier Inc.
For more information on this source, please visit Avantier Inc.
