In the continuous evolution of optical technology, stress-free objective lenses have emerged as a prominent solution, notably for advanced polarized light microscopy.
These lenses are designed to eliminate stress-induced signal distortion during lens assembly, providing distinct advantages for high-quality images.
This article dives into the properties, principles, manufacturing processes, and uses of stress-free objective lenses, with a particular emphasis on their role in improving polarized microscopy.
Features of Stress-Free Objective Lenses
The most notable feature of stress-free objective lenses is their high imaging stability and precision. These lenses effectively prevent imaging distortion and ensure correct image restoration by minimizing internal tension.
The design focuses on matching the materials' thermal expansion coefficients, eliminating image errors caused by temperature fluctuations, and improving the lens' adaptability to different conditions.
In advanced polarized light microscopy, stress-free objectives are crucial for preventing distortion of polarized light interference signals generated by lens material tension.
Frequently induced during lens assembly and curing, this stress can interfere with the precision of detecting crystallographic axes in crystal samples using a Boernet microscope.
Manufacturers use stress-free lenses to maintain optical performance and preserve measurement precision. While stress-free optics are required for high-end polarizing microscopes, they are limited in other areas where ordinary lenses are sufficient.
The Concept of Stress-Free Objective Lenses
The design premise of stress-free objective lenses is to eliminate internal stress caused during manufacturing and assembly.
This stress can be caused by inhomogeneous lens materials, adhesive curing pressure, or mechanical assembly.
Stress-free lenses function without external force influences by refining material choices, enhancing bonding procedures, and using precision assembly equipment. This allows for accurate imaging in a stress-free environment.
The Manufacturing Method of Stress-Free Objective Lenses
The production procedure for stress-free objective lenses is complicated and sensitive. Every stage of the process must be carefully monitored, from material selection to assembly and inspection.
Advanced automated technology and precise measuring instruments are required for lens bonding and assembly to ensure the lens is stress-free and functions well. Annealing is another important step in removing internal tension.
- Lens material selection: When selecting lens materials, pick unstressed, birefringent materials.
- Lens Structure: As shown in the figure below, the lens is attached to the holder using unstressed glue. The holder should be shaped like a "worker" to prevent extrusion stress from being passed on to the lens during assembly.
Image Credit: Avantier Inc.
Assembly Without Stress
When the lens is constructed, carefully tighten the lens pressure ring and pressure cap, and then use low-stress adhesive to secure them to the mirror body. The image below shows an example of a typical microscope objective lens.

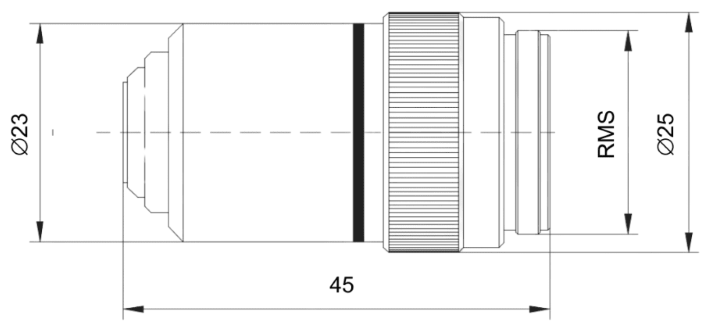

Assembled Microscope Objective lens using a stress-free objective lens. Image Credit: Avantier Inc.
Applications of Stress-Free Objective Lenses
These lenses are commonly used in areas that need high-precision imaging, such as scientific study, medical treatment, and industrial testing. Stress-free objective lenses offer scientists precise observation data.
In the medical field, they improve clarity for clinicians studying internal structures, which aids diagnosis and therapy. Stress-free lenses are recommended in industrial testing for identifying precise parts and materials because of their stability and accuracy.
Finally, stress-free objective lenses play an important part in modern optical technology, providing distinct advantages. As science and technology advance and application demands rise, stress-free objective lenses will likely play an increasingly important role in a variety of sectors.
Custom Stress-Free Objective Lenses by Avantier
Avantier’s stress-free lenses are a ground-breaking development in optical technology, providing unrivaled imaging precision and stability.
Their revolutionary design and precise production process eliminate internal stress, making them an ideal choice for high-demand research, medical, and industrial testing applications.
As the pursuit of enhanced imaging continues, stress-free objective lenses are poised to shape the future of optical systems. Are you ready to experience this innovation firsthand? Contact Avantier today to learn how its stress-free objective lens may improve your optical systems.
