Understanding Chief Ray Angle (CRA): Key Concepts and its Impact on Optical Design

The Lens Chief Ray Angle (CRA) is one of the underlying principles of optics and imaging systems, with this pivotal feature representing a key determinant in the quality of captured images.

In order to fully understand the relevance of this principle, it is important to delve deeper into the nature and implications of the CRA.

Fundamentally, the CRA defines the angular relationship between the optical axis and the chief ray of the lens within an optical system. To more comprehensively grasp this concept, it is advisable to break the CRA down into its constituent elements.

Elements of the CRA

Chief Ray

Understanding the chief ray is key to understanding the wider principles of the CRA. In this context, the chief ray is a specific ray of light that originates from an object point and passes through the optical system’s aperture stop.

The chief ray follows a path guided by the line connecting the center of the entrance pupil to the object point. This chief ray is the primary ray within an optical system and represents a foundational concept in the analysis of optical behavior.

Optical Axis

The optical axis represents the principal reference line within the optical system. This axis acts as the central axis around which all optical elements are arranged, including lenses and mirrors. The CRA is defined in relation to this optical axis.

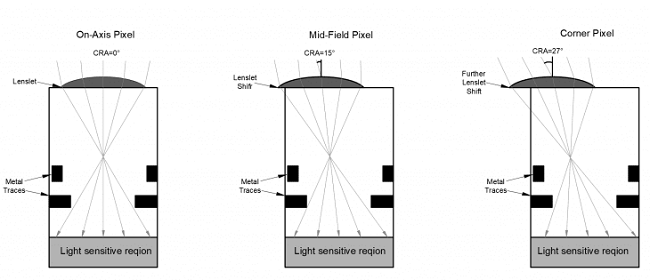

Correcting lens vignetting through lens shifting.

Correcting lens vignetting through lens shifting. Image Credit: Avantier Inc.

Importance of the CRA

The CRA is an important concept in optics and imaging systems for a number of reasons.

Image Quality in Various Media

The CRA’s importance is especially evident when considering the specific imaging medium used. For example, the CRA’s impact on image quality is comparatively limited in the context of traditional silver-halide film.

This limitation is a result of the film grain’s isotropic angular response, meaning that the direction of light incidence has an extremely limited impact on the final image. However, when transitioning to contemporary electronic imaging systems such as CCD or CMOS imagers, the importance of the CRA is amplified.

Modern Digital Imaging

Achieving the highest image quality in digital imaging applications requires scrupulous attention to the alignment between the lens CRA and the image sensor’s pixel acceptance angle.

This alignment is key to ensuring that light rays are efficiently captured by the sensor, resulting in sharper and more precise images. Misalignment, in this instance, can have an adverse effect on image quality.

Micro-Lens Shift and Application Diversity

A technique known as micro-lens shift is frequently employed in miniature-sized CMOS image sensors. This technique involves fine-tuning the position of micro-lenses on individual pixels, shifting these from the center of the image sensor to its periphery.

These shifts can be made in order to accommodate a range of applications, such as when working with wafer-level stack fabrication or thin lenses in mobile phones.

Medical Imaging Considerations

Image sensors from mobile phone technology are frequently adapted for use in medical imaging, particularly in applications such as endoscopes where there are space constraints.

In these applications, it is important that the CRA of the lens be considered in order to ensure full compatibility with the image sensor. Where CRAs are mismatched, this can lead to unwanted artifacts in images, for example, color mismatches or shadows.

Conclusion

The lens Chief Ray Angle is a central parameter in efficient, accurate optical design and digital imaging. Its precise alignment is essential for any application where it is necessary to acquire high-quality images and avoid artifacts.

The CRA is a critical consideration in a wide range of imaging systems and applications, ranging from medical diagnostics to consumer electronics.
