CRAIC Technologies presents the 2030PV PRO™ microspectrophotometer—its most powerful micro-analysis tool. Engineered to meet user requirements, this device incorporates cutting-edge advancements in electronics, software, spectroscopy, and optics, delivering unparalleled performance with exceptional speed and unique capabilities.
Leading the way in UV-visible-NIR microspectroscopy, this instrument maintains the user-friendly interface that has become synonymous with CRAIC instruments.
With the 2030PV PRO™ microspectrophotometer, users can measure microspectra™ in the UV-visible-NIR range, covering transmission, absorbance, reflectance, emission, and photoluminescence for sample areas smaller than a micron. This instrument, incorporating the latest technological advancements, enables precise determination of color space thickness and thin film measurements.
Users can also employ high-resolution digital imaging in the near-infrared, color, and deep ultraviolet to observe samples concurrently with the acquisition of microspectra™.
The 2030PV PRO™ system’s ease of use features, which range from software to automation to ergonomic instrument upgrades, increase its power.
The spectral data from the 2030PV PRO™ microspectrophotometer is unmatched, the measurements are non-destructive, and it is easy to use.
2030PV Microspectrophotometer Introduction
Video Credit: CRAIC Technologies
Features
Key Features
The 2030PV PRO™: superior UV-visible-NIR spectra and images of microscopic samples.
- Refractive index measurements of microscopic particles
- Spectral Range: 200 to 2500 nm
- Absorbance microspectroscopy
- Photoluminescence microspectroscopy
- Transmission imaging
- Reflectance microspectroscopy
- Polarization microscale imaging
- Reflectance imaging
- Fluorescence microspectroscopy
- Fluorescence micro-imaging
- Raman microspectroscopy
- Photoluminescence imaging
- Featuring Lightblades™ technology
- Polarization microspectroscopy
- Thin film thickness measurements
- Colorimetry of microscopic samples
- UV, color, and NIR digital imaging
- Manual or fully automated operation
- Scorpii™ Advanced Illumination System
- Precision temperature control of samples
- Calibrated, variable sample measurement areas on the micron scale
- From the experts in microspectroscopy
- Lambdafire™ spectroscopy and imaging control and analysis software
- Easy to use and maintain
- Specialized software modules including statistical analysis, spectra mapping, spectral databasing, image analysis, and more
UV- vis-NIR Microspectroscopy
Cutting Edge Microspectroscopy From the Leaders
A microspectrometer that is fully integrated with a spectral range that extends from near infrared to deep ultraviolet. Quick and precise measurements can be obtained by directly imaging the sample and the sampling aperture simultaneously. With the 2030PV PRO™, one can measure transmission, reflectance, Raman, polarization, fluorescence, and PL spectra of even sub-micron samples, thanks to its SampleSafe™, Lightblades™, and Scorpii™ technologies.
The only recognized source of NIST traceable microspectrometer standards is CRAIC Technologies.
Image Credit: CRAIC Technologies

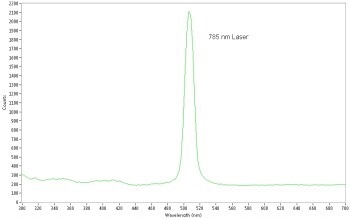

Raman Microspectroscopy
The Power of Raman Microspectroscopy
The 2030PV PRO™ can perform Raman spectroscopy on microscopic samples when equipped with the CRAIC Apollo™ Raman spectrometer module. To obtain high-quality Raman spectra of the samples, the system comes with an extensive selection of lasers, Lightblades™ Raman spectrometers, and interface optics.
Image Credit: CRAIC Technologies
Photoluminescence
High Sensitivity Emission Microspectroscopy and Imaging
The 2030PV PRO™ can be configured for luminescence and fluorescence spectra and images of microscopic samples. The 2030PV PRO™, equipped with Lightblades™ technology, is an effective instrument for microfluorometry in materials sciences, biology, geology, and more. With excitation ranges from the deep UV to the near infrared, it can measure the emission in the same range.
Image Credit: CRAIC Technologies
Polarization
Microspectroscopy and Imaging of UV-Visible-NIR Polarization
Even the smallest samples can have their polarization spectra and images captured by 2030PV PRO™. With its spectral range spanning from UV to NIR and Lightblades™ technology, the 2030PV PRO™ polarization microspectroscopy capabilities are unmatched. This advanced system makes it simple and quick to obtain the spectra and images of birefringent and other types of samples with polarization characteristics.

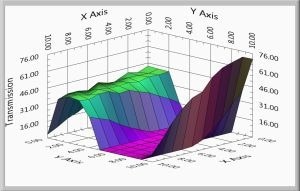

Spectral Surface Mapping
5D Spectral Surface Mapping™
Combines hardware and software to enable microscopic spatial resolution 5D mapping of samples and automated spectrum analysis. 5D maps of a sample's absorbance, transmission, reflectance, fluorescence, emission, time-resolved, and Raman spectra can be produced.
Image Credit: CRAIC Technologies
UV-vis-NIR Microimaging
Superior Image Quality From the UV to the NIR
A unique UV-visible-NIR microscope with research-grade optics is included with the 2030PV PRO™. The 2030PV PRO™ boasts advanced imaging software and high-resolution digital imaging for color, UV, and NIR regions. This enables the user to quickly and simply capture images and real-time data of samples using transmission, reflectance, polarization, and fluorescence microscopy.
Image Credit: CRAIC Technologies

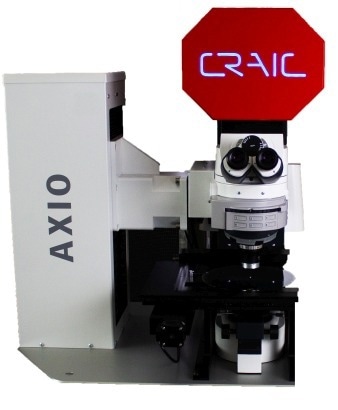

2030XL PRO™ for Large Samples
Spectra of Large Samples With Micro Spatial Resolution
With the 2030XL PRO™ microspectrophotometer, users can measure the film thickness, obtain images, and obtain spectra of small-scale sample characteristics. "XL" stands for "extra large," and this instrument was designed to handle these kinds of samples.
Image Credit: CRAIC Technologies
Applications
- Semiconductor Film Thickness
- Combinatorial Chemistry
- Drug Chemistry
- Surface Plasmon Resonance
- MEMS devices
- Nanotechnology
- Photonic Bandgap Crystals
- Questioned Documents
- Process Impurity Detection
- Protein Crystals
- Forensic Science
- OLED's
- Flat Panel Color Masks
