Active Isolation Renders Reflective Collimators Truly Portable

Optical Surfaces Ltd. has introduced a new option for its range of fully enclosed, pre-aligned reflective collimators.

For organisations looking for the flexibility of being able to use a reflective collimator on different experiments around their laboratory - Optical Surfaces has developed self-aligning isolating feet. The isolating feet allow a ±10mm height adjustment and enable easy relocation of the reflective collimator without any loss of performance.

The isolating feet clamp onto standard optical tables and operate in two modes. When the unit is static the isolating feet are set in “no floating mode”. However to ensure smooth and safe transfer from one place to another the isolating feet may be set in “floating mode”.

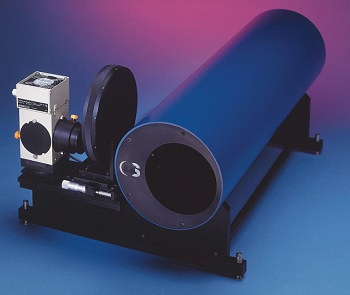

High stability and performance on Optical Surfaces reflective collimators is achieved using a zero expansion off-axis parabola, manufactured to better than lambda/10 p-v surface accuracy. The optics within each unit are secured by the use of stress-free mounts and come pre-aligned in our laboratories for optimum performance. The off-axis design of Optical Surfaces reflective collimators produces no central obscuration thereby ensuring highly efficient transmission is obtained.

The all-reflecting design of Optical Surfaces reflective collimators is achromatic and with aluminium / magnesium fluoride coatings can operate from the UV to the infrared without adjustment. Using zero expansion glass mirror substrates Optical Surfaces reflective collimators provide exceptional operational stability. Each unit has an output port datum plane giving a defined distance to the focus. All reflective collimators provide a 20mm field ensuring full compatibility with standard black bodies.

Standard models include exit apertures of 100mm, 120mm, 150mm, 200mm, 240mm and 300mm. Customised systems can be supplied with larger field sizes, different output interfaces and platforms. Other options include reticle holders, lamp houses and black bodies. Test interferogram and analysis, showing wavefront accuracy, focal length and working distance, are supplied with every reflective collimator supplied.

For further information please visit or contact Optical Surfaces Ltd. on +44-208-668-6126 / [email protected]

Optical Surfaces Ltd has established itself as one of the world's leading suppliers of reflective collimators to leading research institutes and organisations worldwide. The company’s ISO 9001-2008 approved manufacturing facility provides the flexible resources to supply from single specialist requirements to OEM quantities.
