Optical Materials Designed for Extreme Environments

Key Takeaways

• Durable optical materials are essential for reliable performance in severe conditions, allowing next-generation optical systems to tolerate radiation and thermal stress.
• Meta-optics and nanophotonic structures provide compact and robust alternatives for advanced optical functionalities in demanding applications.
• Innovative radiation-hardened coatings and thermally stable substrates, such as Zerodur and Silicon Carbide, maintain optical integrity in harsh conditions.
• These advanced materials require careful consideration for outgassing, bonding, manufacturability, and sustainability for long-term performance.

Durable Optical Materials for Harsh Environments

Increasingly, modern optical systems are being used in harsher conditions, whether that’s the vacuum of outer space, high-radiation zones, or locations with significant thermal volatility.

These turbulent conditions put extreme strain on optical components. For optical systems to be able to cope in these environments, ongoing innovation is needed in the development of robust optical materials, coating resilience, and overall optical design.

This article investigates the crucial role of long-lasting optical materials in ensuring consistent optical performance in such conditions, focusing on key technologies such as radiation-hardened coatings, thermally stable substrates, and revolutionary meta-optics.

Why Durable Optical Materials Are Essential

For optical systems to be successful in these harsh conditions, optical materials need to be developed to ensure consistent performance. These new materials will allow for high-performance, durable optics by withstanding ionizing radiation and preserving dimensional stability in the face of significant temperature changes.

Such materials, like radiation-hardened coatings, ultra-stable substrates like Zerodur and Silicon Carbide (SiC), and cutting-edge meta-optics, are enabling engineers to create systems that flourish in the harshest environments.

1. Thermally Stable Durable Optical Materials

Thermal fluctuations can significantly deform optical surfaces, resulting in misalignment and poor image quality. To minimize these effects, precision optics must be designed with thermally stable and enduring optical substrate materials. The aforementioned materials play a significant role in achieving this stability:

• Zerodur: A glass-ceramic developed by SCHOTT, Zerodur has near-zero thermal expansion and outstanding long-term stability. It is a prime example of a durable optical material and is frequently used in metrology systems and satellite optics.
• ULE (Ultra-Low Expansion glass): Corning's ULE (Ultra-Low Expansion glass) has a very low coefficient of thermal expansion (CTE). This property makes it a strong option for optical workbenches and space-borne devices.

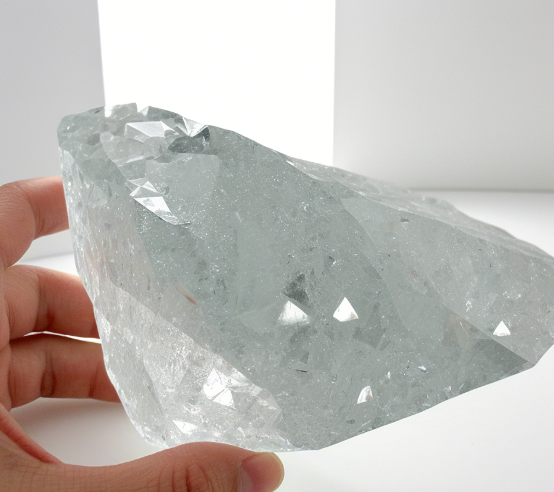

ULE (Ultra-Low Expansion Glass). Image Credit: Avantier Inc.

• Silicon Carbide (SiC): Known for its excellent stiffness-to-weight ratio, thermal conductivity, and mechanical strength, SiC is often used in lenses, which are widely used in high-speed scanning systems, infrared imaging systems, and aerospace applications.

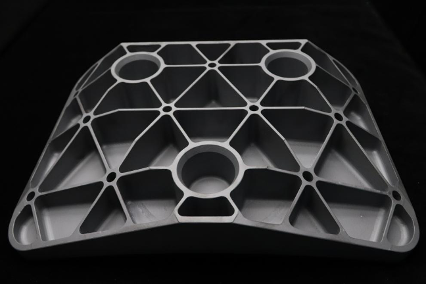

Silicon Carbide (SiC) Mirror. Image Credit: Avantier Inc.

These thermally stable materials are frequently used with techniques such as lightweighting, bonded constructions, and active thermal management systems to ensure constant performance under a variety of climatic circumstances.

Comparative Table: Thermally Stable Durable Optical Materials. Source: Avantier Inc.

2. Radiation Hardened Coatings for Enhanced Optical Durability

Radiation can drastically reduce the performance of optical components, resulting in transmission loss, coating delamination, and surface contamination.

This is a major concern for optical systems in space that are subjected to ionizing radiation. Radiation-hardened coatings, which are based on sophisticated materials technology, are designed to withstand damage from these high-energy particles.

They are often made with:

• Inorganic dielectric materials like hafnium oxide (HfO₂), aluminum oxide (Al₂O₃), and silica (SiO₂) are used because of their high damage thresholds and chemical stability.
• Ion-assisted deposition (IAD) and atomic layer deposition (ALD) techniques create dense, defect-free layers with strong adherence to substrates.
• Multi-layer topologies boost reflectivity, durability, and wavelength-specific performance.

Radiation-hardened coatings are useful for ensuring clarity, functionality, and endurance in optical systems like satellites, deep-space telescopes, fusion reactors, and particle accelerators.

3. Meta-Optics and Nanophotonic Structures: Compact and Durable Optical Solutions

As optical systems become smaller and more functional, traditional refractive and reflecting designs face size, weight, and adaptability constraints. Meta-optics and nanophotonic structures are a revolutionary alternative for influencing light at the subwavelength scale.

They represent a novel class of long-lasting optical materials and architectures that are overhauling optical design.

Meta-optics use finely manufactured nanostructures, often etched onto flat surfaces, that perform optical operations like focusing, filtering, and beam shaping. They show potential as a replacement for larger lenses and mirrors.

Key benefits include:

• Reduced size and weight, allowing for incorporation into smaller devices like satellite payloads, UAVs, and portable sensors that require durable and lightweight optics.
• Meta-surfaces can be manufactured with radiation-resistant materials for increased durability and environmental protection.
• Improved functionality with variable focal lengths, broadband performance, and multifunctional components merged onto a single layer.

Nanophotonics and meta-optics are rapidly expanding into fields such as defense, augmented reality, medicinal imaging, and space optics. Each of these applications requires compactness, exceptional performance, and improved, durable optical materials.

4. Additional Considerations for Durable Optical Materials in Harsh Environments

Aside from the specific material categories, several other aspects are critical for selecting lasting optical materials for hostile environments:

• Mechanical and Environmental Testing: Advanced materials require mechanical and environmental testing to survive radiation, temperature changes, mechanical stress, vibration, and pressure fluctuations. Validating optical components for aerospace and defense applications involves using testing techniques such as MIL-STD-810 and ESA ECSS standards. Thermal cycling, vibration, shock, and radiation exposure are typically used tests to verify mission reliability and material durability.
• Outgassing and Contamination Resistance: Vacuum settings can cause film deposition on optical surfaces, resulting in severe deterioration. Advanced materials with low outgassing qualities and chemical inertness, such as ULE and Zerodur, are used in space optics and cleanroom applications.
• Adhesive and Bonding Techniques: Structural adhesives and bonding agents are necessary for the stability of optical components. Low-outgassing epoxies, radiation-resistant glues, or optical contacting technologies are required in harsh environmental settings to assure bond longevity and prevent stress-induced failures and contamination.
• Manufacturability and Cost Trade-Offs: Advanced materials such as silicon carbide and nanophotonic meta-surfaces have exceptional performance but involve complicated fabrication techniques, limited supplier availability, and low production yields, resulting in higher costs overall. When choosing durable optical materials, design-for-manufacturing (DFM) considerations are required to balance performance needs with cost and scalability.

5. Future Directions in Durable Optical Materials

The field of durable optical materials is constantly changing to satisfy increasingly stringent mission requirements. Key areas for innovation include:

• Phase-change Meta-surfaces: Using materials with phase-change properties, such as GeSbTe (GST), provides dynamic and robust optics.
• Hybrid Nanostructures: Hybrid nanostructures combine meta-optics with traditional optical elements to increase bandwidth and range of vision while maintaining durability.
• Chalcogenide Glasses: Chalcogenide glasses provide sturdy IR optics for thermal imaging and severe industrial situations.
• AI-driven Inverse Design Tools: AI-driven inverse design tools enhance optical materials and structures for durability and efficiency.

Real-World Applications of Durable Optical Materials

Durable optical materials for harsh environments are changing the capabilities of optical systems in various industries, guaranteeing that they can operate reliably even in the most extreme situations.

These materials ensure system performance in environments subjected to high radiation, temperature fluctuations, mechanical strains, and other hostile circumstances. Below are some cases where they have been used with major success outside of the lab:

Mars Science Laboratory ChemCam Optical Fiber Assemblies: A Testament to Durable Optical Design

One of the most compelling examples of long-lasting optical materials successfully used in harsh settings is NASA's Mars Science Laboratory (MSL) ChemCam instrument, which is part of the Mars rover mission.

The optical fiber assemblies used in ChemCam had to survive harsh heat and radiation conditions on Mars, as well as mechanical forces during launch and operation - a genuine test of material endurance.

The challenges of using highly durable optical materials included:

• Operating in temperatures ranging from -143 °C to +110 °C, representing the temperature extremes on Mars and in spacecraft conditions.
• Enduring significant radiation exposure from both the Martian environment and space travel.
• Withstanding mechanical flexing and vibration during rover movements.

To tackle these problems, the team chose several durable optical materials, including AVIM connectors and W.L. Gore FLEXLITE cables, which have excellent thermal and mechanical qualities. These materials underwent intensive testing to ensure their dependability and longevity in Mars' severe circumstances.

The result was a strong optical system capable of giving reliable performance even under the most extreme conditions.¹

Other Real-World Applications Demonstrating the Need for Durable Optical Materials:

• DARPA’s EXTREME Program: DARPA's EXTREME Program investigates meta-optics, focusing on durable optical materials for small and multifunctional sensing in defense technology.
• ESA’s Sentinel-5P Satellite: The ESA Sentinel-5P satellite has Zerodur-based spectrometer optics, which are designed to withstand high temperature variations in Earth's orbit.
• James Webb Space Telescope: The James Webb Space Telescope uses robust optical materials such as beryllium mirrors and silicon carbide (SiC) to maintain stability in space.
• Mars Rover Optics (General): In addition to ChemCam, the rovers use radiation-hardened coatings and low-outgassing adhesives to maintain consistent optical performance.
• Nuclear Reactor Inspection: Uses SiC optics and radiation-resistant coatings to image in high-energy, high-temperature conditions.

Sustainability and Lifecycle Considerations for Durable Optical Materials

As the use of durable optical materials grows, examining their environmental impact and lifecycle becomes more important. Materials with excellent durability and long lifespans naturally decrease waste and mission risk.

Efforts are being made to increase recyclability and lessen the environmental impact of the substrates and coatings utilized in these long-lasting optical systems.

Key Recommendations for Choosing Durable Optical Materials:

• Select optical materials with proven performance in the intended environment, such as Zerodur or ULE for heat stability and SiC for mechanical strength.
• Use radiation-hardened coatings and low-outgassing adhesives to improve the longevity of optical systems for space and nuclear applications.
• Use meta-optics or nanophotonics for tiny and resilient optical components with multiple functions.
• When choosing durable optical materials, factor in manufacturability and supply chain early in the design process.
• Validate designs with thorough environmental and mechanical testing to ensure durable optical materials meet operational requirements.

Conclusion: The Indispensable Role of Durable Optical Materials in the Future of Optical Systems

Advances in robust optical materials for harsh environments are changing how optical systems are planned and implemented.

Radiation-hardened coatings, thermally stable substrates, and resilient meta-optics enable optical systems to operate reliably and effectively in extreme situations ranging from deep space to the harshest industrial environments.

As mission demands increase and environments become more hostile, the demand for these strong and long-lasting optical materials will continue to drive innovation in aerospace, defense, energy, and scientific research.

By selecting durable optical materials and design solutions, engineers can construct optical systems that function optimally under the most demanding conditions, enabling advances across a vast range of applications.

References

1. NASA. (2012). Mars Science Laboratory (MSL) ChemCam Optical Fiber Assemblies. Retrieved from: https://mars.jpl.nasa.gov/msl/
