Rugged 1064nm Laser for OEM Applications: forte

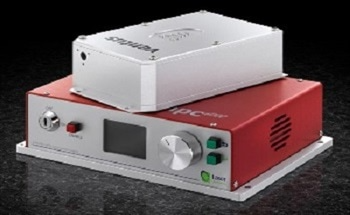

The ventus 1064 laser is a novel laser enabling a single transverse mode, near-diffraction-limited, CW beam with two power variants - 1.5W or 3W. This laser is mainly used in the scientific community and is the laser of choice for optical tweezer applications. It has a highly stable, low-noise beam and is supplied with the advanced mpc6000 power supply

Key Features

The key features of the ventus 1064 are:

  • Hermetically sealed
  • Single-phase mains driven
  • Diode >40,000h MTTF
  • Full RS232 control
  • Zero-stress cavity
  • Fiber delivery
  • 2 years/unlimited hours warranty
  • Compact design
  • Diffraction limited beam
  • Permanently aligned cavity (PAC)
  • Low noise
  • Stable output
  • Low M-Squared

Key Specification

The specifications of the ventus 1064 laser are:


Power 1.5W, 3W
Wavelength 1064nm
Beam Size 2.4±0.2mm
Spatial Mode TEM00
Bandwidth 80GHz
Divergence 0.6mrad
M-Squared <1.5
Power Stability <0.2% rms
Noise <0.2% rms
Noise Bandwidth 1Hz to 100MHz
Pointing Stability <5µrad/°C
Polarisation Ratio 100:1
Polarisation Direction Vertical
Coherence Length 4mm
Beam Angle 1mrad
Operating Temp 10 - 40ºC
Weight 1.3kg
Umbilical Length 1.5m
Warmup Time 10 minutes
Safety Class Class IV
