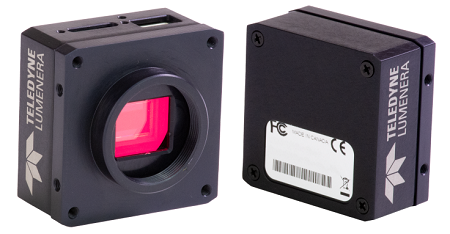

Lt-C1900: With a Back-Illuminated Rolling Shutter

The back-illuminated rolling shutter Sony® Starvis CMOS sensor in the Teledyne Lumenera Lt-C1900 camera offers high sensitivity. This facilitates imaging in settings with variable or uncontrolled lighting.

The Lt-C1900 camera captures images in low light conditions without losing crucial data instead of relying on additional lighting to ensure that images can be appropriately captured. This camera has a compact form factor for imaging systems with limited space.

Teledyne Lumenera Lt-C1900 Camera Highlights

  • Locking industrial micro-USB on the side for power and control
  • Region of Interest (ROI) option to provide higher frame rates
  • Selectable eight or 12-bit pixel data
  • Multiple data rates are supported, each optimized for the lowest noise performance.
  • Color Sony Starvis IMX327 rolling shutter CMOS sensor with 1/2.8” optical format
  • 2.1-megapixel camera with fast frame rates of 60 fps at full resolution (1944×1096)
  • High-Speed USB 3.1 Gen 1 interface for fast image delivery and simplified connectivity
  • Compact form factor measuring 45 mm×45 mm×36.1 mm

About Sony Starvis Rolling Shutter CMOS Camera Technology

Sony Starvis rolling shutter CMOS sensors provide high-sensitivity imaging performance. Sony’s back-illuminated sensor technology allows excellent color reproduction, a wide dynamic range, and little noise.

A more significant amount of light can reach the sensor by applying the photosensitive surface on top of the metal wiring as opposed to the conventional layout, where light is blocked around the photodiode. The camera is more sensitive since more light is available when imaging with this kind of system.

Ordering Options

  • Lt-C1900–2.1 MP Color USB3 Camera
  • La303ML–USB 3.1 Cable A-Male to Micro-B male Locking (3 m/9.75 ft)

Software Platform Options

  • USB3 Vision-compliant SDK
  • Teledyne Lumenera Camera SDK (Windows and LINUX)

Key Applications

  • Intelligent Traffic Systems (ITS)
  • Life sciences
  • Industrial inspection solutions
  • Aerial imaging
  • Precision agriculture
  • Portable/OEM Devices
  • Outdoor imaging

Technical Specifications

Camera Specifications. Source: Teledyne Lumenera

. .
Image Sensor Sony IMX327 CMOS available in color
Effective Pixels 1944 x 1096 pixels (2.1M)
Frame Rate 60 fps
Auto Exposure Manual and automatic control
White Balance Manual and automatic control
Dimensions 45 mm x 45 mm x 36.1 mm
Mass 88 g
Operating Temperature 0 to 50 ºC
Interface Connector USB 3.1 Gen 1, locking connector
Lens Mount C mount & CS mount
