Precision Medical Motors and Actuators - Fast Becoming the Choice of Medical Device Manufacturers

A significant improvement over conventional electromagnetic motors for the execution of precise movements with medical design equipment, the latest piezo motors and piezo actuators are more compact, require lower voltage, deliver higher torque, have shorter response time, generate less heat, and are nonmagnetic and vacuum compatible compared to EM motors. With fewer mechanical component parts to wear out and service, and the ability to provide more accurate positioning, it is no wonder why these little piezo devices are fast becoming the choice of medical device manufacturers. - by Jim McMahon & Stefan Vorndran

Introduction

Improvements in the design of medical equipment for better streamlined functionality and performance is influenced by a number of critical factors. The research, design, modeling, testing, prototyping, and FDA and EU approvals of new mechatronic devices, or the integration of changes to existing designs, usually represents a sizable capital investment of resources well before the equipment goes into serial production. Factored into the medical device’s product development are considerations such as size of the equipment, speed of operation, heat generation, portability, handling of static or kinetic loads, power sources, measuring systems, vacuum and nonmagnetic requirements, sensors, machine controls, component part wear and diagnostics.

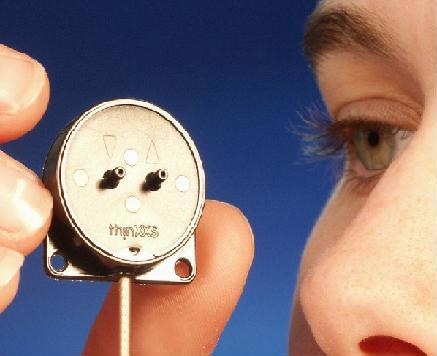

Custom piezo disk actuators precisely dose liquids and gases in the medical ThinXXS micropump.

Custom piezo disk actuators precisely dose liquids and gases in the medical ThinXXS micropump.

A key impetus for medical and bioresearch companies to engage upon these involved product development cycles is the opportunity to capitalize on advances in technology for the manufacture of better operating, lower cost and more efficient equipment and devices. A recent improvement in high-speed laser scanning, for example, has facilitated the release of Harvard Medical School’s latest optical imaging technique, Optical Frequency-Domain Imaging (OFDI), which is capable of providing unprecedented ultra-detailed 3D visualization of a patient’s coronary arteries. OFDI operates at several magnitudes improvement over its predecessor, Optical Coherence Tomography (OCT), which itself was enabled by earlier advances in laser scanning 15 years prior.

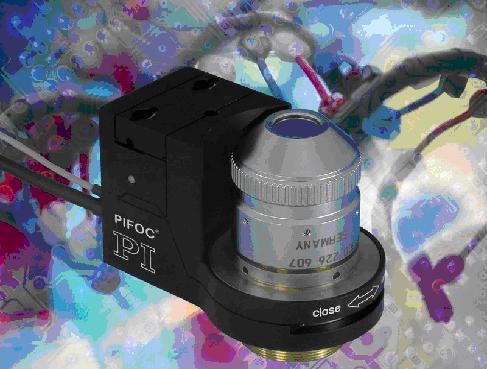

Piezoelectric High-Speed Microscope Objective Nanofocusing Device (Z-Motor) provides millisecond responsiveness nanometer resolution, essential for DNA research.

Piezoelectric High-Speed Microscope Objective Nanofocusing Device (Z-Motor) provides millisecond responsiveness nanometer resolution, essential for DNA research.

Piezoelectric Motors and Actuators vs. Conventional Electromagnetic Motors

Just as refinements in laser scanning technology have had widespread applications, no less influential are recent advances in motor technology, specifically piezoelectric motors and actuators. Medical device manufacturers are increasingly choosing to use piezoelectric motors and actuators in preference to conventional electromagnetic motors because they exhibit substantial inherent advantages in medical equipment design over conventional EM motor technology. Piezoelectric devices are being used successfully in a widening range of medical applications including ultrasonic emitters, artificial fertilization, medical nano-microliter pumps, micromonitoring, surgery devices, MRI compatible robots, microdose dispensing, cell penetration and cell imaging in cytopathology, medical material handling such as pick-n-place systems, drug delivery devices, 3D scanning and for laser beam steering in ophthalmology, dermatology and cosmetology.

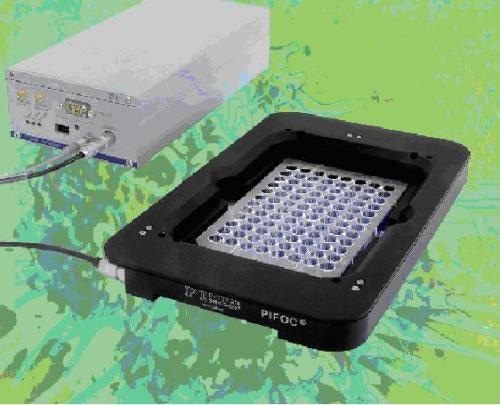

Piezoelectric Well Plate Scanner. These are used for fast autofocus in drug discovery.

Piezoelectric Well Plate Scanner. These are used for fast autofocus in drug discovery.

What is Piezoelectric Actuator

A piezoelectric actuator (piezo actuator) is a type of solid state actuator based upon the change in shape of a piezoelectric material when an electric field is applied. It uses a piezoelectric ceramic element to produce mechanical energy in response to electrical signals, and conversely, is capable of producing electrical signals in response to mechanical stimulus.

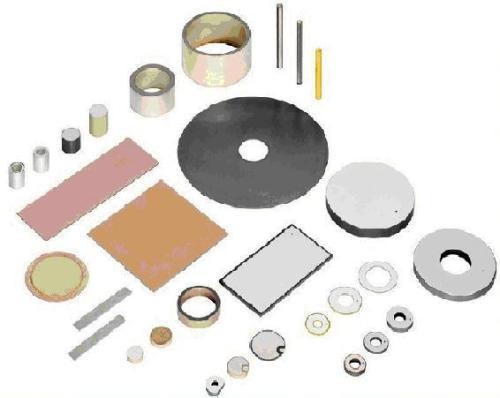

Variety of piezoceramic disks and tube actuators for applications such as medical micropumps and nebulizers.

Variety of piezoceramic disks and tube actuators for applications such as medical micropumps and nebulizers.

What are Piezoelectric Ceramics

The use of piezoelectric materials dates back to 1881 when Pierre and Jacques Curie observed that quartz crystals generated an electric field when stressed along a primary axis. The term piezoelectric derives from the Greek word ‘piezein’, meaning to squeeze or press, relating to the electricity that results from pressure applied to a quartz crystal.

Piezoelectric ceramics consist of ferroelectric materials and quartz. High-purity PZT (plumbum, zirconate, titanate) powders are processed, pressed to shape, fired, electroded and polarized. Polarization is achieved using high electric fields to align material domains along a primary axis. Piezoelectric actuators in their basic form provide very small displacement, but can generate huge forces. The minute size of the displacement is the basis for the high precision motion they can deliver.

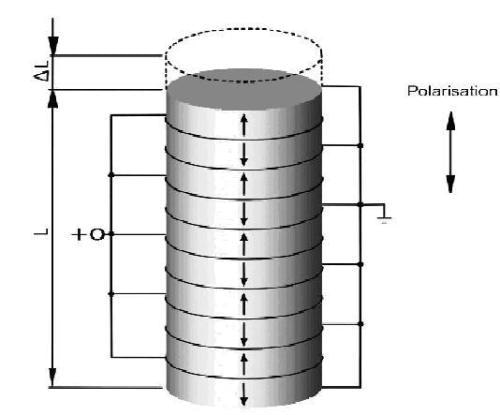

Basic principle of a piezo stack actuator.

Basic principle of a piezo stack actuator.

For long travel ranges, a clever arrangement of multiple actuators, or the operation of a single piezoelement at its resonance frequency have proven to be viable concepts. These types of piezo motion devices are called piezo motors.

Latest Designs of Piezo Motors

The latest designs of piezo motors have a number of advantages over electromagnetic motors when being considered for use in medical equipment and devices. Two types of piezo motors in particular have considerable attributes making them ideal for medical applications. Ultrasonic piezo linear motors (also called resonant motors), and piezo stepper motors. Both versions can basically provide unlimited travel (movement), yet they are very different in their design, specifications and performance.

Ultrasonic Piezoelectric Motors

In ultrasonic piezoelectric motors, the piezoelectric ceramic material produces high-frequency (inaudible to the human ear) acoustic vibrations on a nanometer scale to create a linear or rotary motion. For large travel ranges, especially when high speeds are also required, ultrasonic linear drives are used. With resolutions as good as 50 nm they become a better alternative to electromagnetic motor-spindle combinations. The ultrasonic drives are substantially smaller than conventional EM motors, and the drive train elements needed to convert rotary to linear motion are not required.

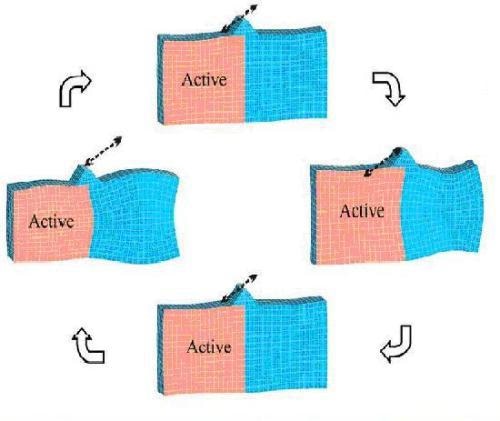

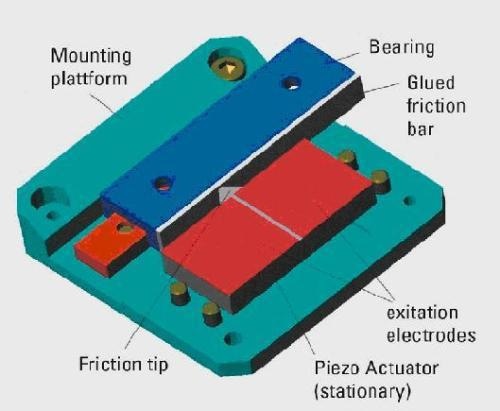

Dynamic phases in a stator plate of a piezo ultrasonic motor.

Dynamic phases in a stator plate of a piezo ultrasonic motor.

Ultrasonic piezoelectric linear motors employ a rectangular monolithic piezoceramic plate (the stator), segmented on one side by two electrodes. Depending on the desired direction of motion, one of the electrodes of the piezoceramic plate is excited to produce high-frequency eigenmode oscillations (one of the normal vibrational modes of an oscillating system) of tens to hundreds of kilohertz. An alumina friction tip (pusher) attached to the plate moves along an inclined linear path at the eigenmode frequency. Through its contact with the friction bar, it provides micro-impulses and drives the moving part of the mechanics (slider and turntable) forward or backwards. With each oscillatory cycle, the mechanics executes a step of a few nanometers. The macroscopic result is smooth motion with a virtually unlimited travel range.

New ultrasonic resonant motors, such as the PILine® model developed by Physik Instrumente – who has played a pioneering role in advancing development of piezo devices for medical applications – are characterized by very high speeds to 500 mm/s, in a very compact and simple design. Such motors can produce accelerations to 10 g. They are also very stiff, a prerequisite for their fast step-and-settle times (on the order of a few milliseconds) and provide resolution to 0.05 ìm.

Design of a compact ultrasonic piezo motor linear translation stage.

Design of a compact ultrasonic piezo motor linear translation stage.

Piezo Stepper Linear Motors

Piezo stepper linear motors usually consist of several individual piezo actuators and generate motion through a succession of coordinated clamp/unclamp and expand/contract cycles. Each extension cycle provides only a few microns of movement, but running at hundreds to thousands of Hertz, achieves continuous motion. Even though the steps are incremental, in the nanometer to micrometer range, they can move along at speeds in the 10mm per second range, taking thousands of steps per second.

Piezo stepper motors, such as PiezoWalk®, also developed by Physik Instrumente, can achieve much higher forces of up to 700 N (155 lb) and picometer (one trillionth of a meter) range resolution compared to ultrasonic piezo motors. Resolution of 50 picometers has been demonstrated. The motor is capable of performing extremely high-precision positioning over long travel ranges, and when the position has been reached then performing highly dynamic motions for tracking, scanning or active vibration suppression. Like the ultrasonic piezo motors, these motions can be conducted in the presence of strong magnetic fields or at very low temperatures.

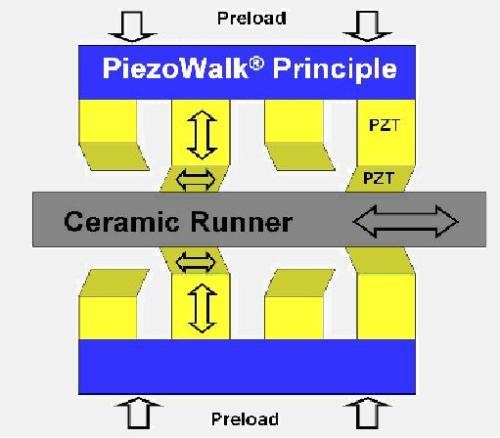

Operating principle of a PiezoWalk type piezo stepping linear motor.

Operating principle of a PiezoWalk type piezo stepping linear motor.

Basic Piezo Technology for Motion Control Applications

There are a number of different piezo actuators and motor types that are currently available. The most common ones are listed below.

“Simple” Piezo Actuator

It expands proportionally to voltage. The motion is basically proportional to the drive voltage. Sub-groups include:

  • Stacked actuator – most common type. High force, fast response, short travel.
  • Shear actuator – lateral motion, very fast, XY systems available. High force, very high frequency possible, travel typically limited to 20 ìm.
  • Tube actuator – mostly for micro-dispensing applications and AFM scanners.
  • Bender actuator – long travel (deflection) to several mm possible, but low force and low frequency

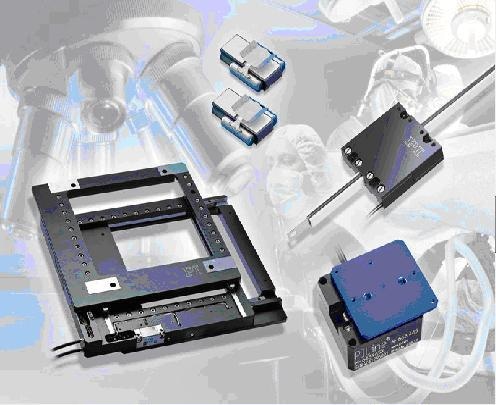

Variety of piezo-ceramic motion control devices for use in bio-medical applications: XY microscope stage, miniature stage, RodDrive pusher and sub-miniature slides.

Variety of piezo-ceramic motion control devices for use in bio-medical applications: XY microscope stage, miniature stage, RodDrive pusher and sub-miniature slides.

Flexure-Guided, Piezo Actuator

Frictionless flexures and motion amplifiers provide longer travel, and extremely straight motion. The motion is basically proportional to the drive voltage

  • Integrated Multi-Axis Systems Available.
  • Motion range up to 2 mm and above.
  • Frictionless, no wear and tear.

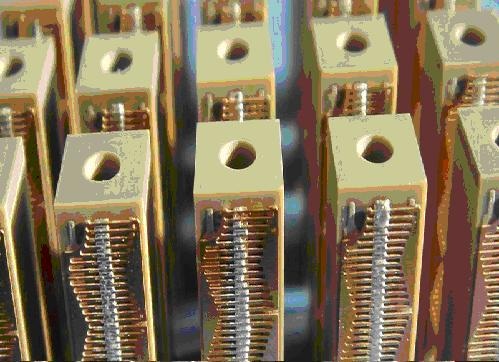

PICMA® Piezo ceramic stack actuators with thru-hole.

PICMA® Piezo ceramic stack actuators with thru-hole.

Ultrasonic Friction Motors

Some examples of ultrasonic friction motors are:

  • Based on high frequency oscillation of a piezo plate (stator).
  • Unlimited motion, high speed, fast response (10 to 10s of millisecs).
  • Oscillation is transferred to a slide or rotor via friction.
  • Due to friction, resolution is limited to typically 50 nm.

Piezo Stepping Motors

Some examples of piezo stepping motors are:

  • Basically unlimited motion range.
  • Based on accumulation of small controllable steps.
  • Picometer resolution dither mode (direct piezo actuation).
  • Compact and high force to 155 lbs. (for off the shelf units).
  • Fast response (less than 1 millisec). Very high stiffness.

Improving Medical Equipment Performance

Medical devices can be made smaller, more precise, lighter and easier to control by employing piezoelectric motors. Some examples are listed below.

Higher Force Generation Supports Miniaturization

Piezoelectric motors are better suited for miniaturization. They can easily be made smaller and more compact than electromagnetic motors, yet for their size they provide greater force. The efficiency of electromagnetic motors falls as their dimensions are reduced with more of the electrical power converted to heat, whereas with piezoelectric motors their efficiency stays virtually constant. Being the same volume and weight, the stored energy density of a piezo motor is ten times greater than that of an electromagnetic motor. The most advanced versions of piezo motors are configured into extremely compact, high-speed micro-positioning stages that are smaller than a matchbox – the smallest piezo motor-driven stages are currently being used in autofocus devices for cell phone cameras. Because piezo motors provide a higher force per motor size, this has allowed equipment and instrumentation (including medical devices) to be reduced in size, while maintaining or increasing performance.

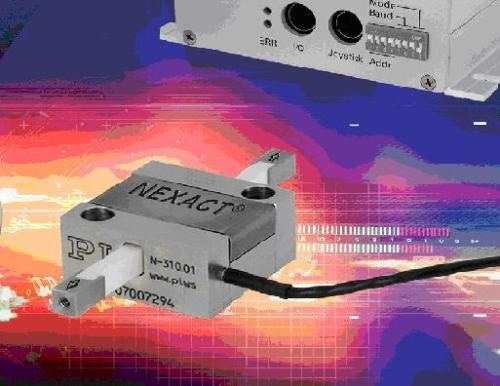

Compact, yet forceful nonmagnetic piezo linear motor with controller.

Compact, yet forceful nonmagnetic piezo linear motor with controller.

Improved Positioning Accuracy

The direct-drive principle of the piezo motor eliminates the need for a supplementary transmission or gear train found in conventional electromagnetic motors – this avoids the usual backlash effects that limit accurate tracing which creates a critical reduction in positioning accuracy in electromagnetic servo-motors. The mechanical coupling elements otherwise required to convert the rotary motion of classical motors to linear motion are not necessary. The intrinsic steady-state auto-locking capability of piezoelectric motors does away with servo dither inherent in electromagnetic motors. Piezo motors can be designed to hold their positions to nanometer accuracy, even when powered down.

Faster Acceleration

Piezo devices can react in a matter of microseconds. Acceleration rates of more than 10,000 g (response times of 0.01 milliseconds) can be obtained.

No Magnetic Fields

For medical and biotechnology applications, piezoelectric motors are ideal as they do not create electromagnetic interference, nor are they influenced by it, eliminating the need for magnetic shielding. This feature is particularly important for motors used within strong magnetic fields, such as with MRI equipment, where small piezo motors are used for MRI-monitored microsurgery and large piezo motors for rotating patients and equipment. Magnetic fields and metal components in conventional electronic motors make it impossible for motorized medical devices to function within MRI equipment.

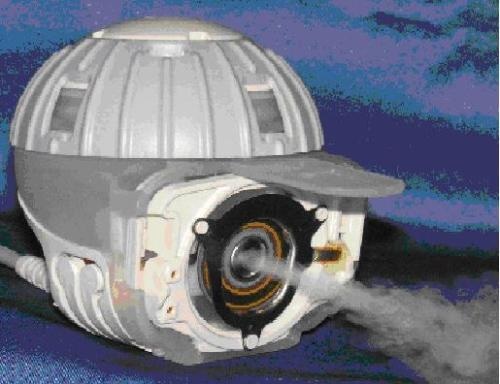

Medical piezo ultrasonic transducer application: The atomizer head of the eFlow® rapid Electronic Nebulizer.

Medical piezo ultrasonic transducer application: The atomizer head of the eFlow® rapid Electronic Nebulizer.

No Maintenance or Lubrication, Aseptic Enabled

Because the piezo motion depends on crystalline effects and involves no rotating parts like gears or bearings, they are maintenance free and do not require any lubrication. They can be sterilized at high temperatures, a significant advantage in medical applications.

Reduced Power Consumption

Static operation, even holding heavy loads for long periods, consumes virtually no power. Also, since the efficiency of piezoelectric motors is not reduced by miniaturization, they are effective in the power range lower than 30W. This makes piezo motors attractive for use in battery-operated, portable and wearable medical devices because they can extend the life of a battery as much as ten times longer.

No Heat Generation

When at rest, piezo motors generate no heat. Piezoelectric motors also eliminate servo dither and the accompanying heat generation, an undesirable feature of electromagnetic motors.

Vacuum-Compatible

Piezo motors are in principle vacuum-compatible, a requirement for many applications in the medical industry.

Operable at Cryogenic Temperatures

Piezoelectric motors continue to operate even at temperatures close to zero kelvin, making them suitable for operation in extremely cold environments, such as in medical laboratory storage facilities and in cryogenic research.

Inflammability

Piezo motors are inflammable and therefore safer in the event of an overload or short circuit at the output terminal, a considerable advantage for portable and wearable medical devices.

Power Generation

Piezo devices can be used to harvest energy. For example, using a person’s motion to power small medical or electrical devices such as pacemakers or health monitors.

Medical Equipment Manufacturers Switching to Piezoelectric Devices

In Optical Coherence Tomography, piezoelectric motors are used to impart rapid periodic motion to the unit’s reference mirror and imaging optics. To enable creation of two- and three-dimensional images from optical interference patterns, optical fibers must be moved both axially and laterally during the scan. Piezo motors have proven to provide more precise movements resulting in improved image resolution over conventional electromagnetic motors.

Point-of-care and medical test equipment engage piezo technology. Where extremely fine tuned positioning and measuring equipment is required, piezo motors fill the need, which can create motion with extreme precision, from inches to nanometers.Piezoelectric actuators are beginning to be used for transdermal drug delivery, such as with a needle-free insulin injection system. Monitoring of endoscope-gastroscope devices is also beginning to be employed using piezoelectric devices.

Biomedical micro-tools, such as tweezers, scissors and drills, have been adapted to a micro-robot base powered by piezo motors. Piezo motors are becoming more prevalent in micro- surgery and non-invasive surgery tools. 3D Cone Beam Imaging, used in orthodontics and for treating sleep Apnea patients to obtain an exact model of the oral cavity for fitting oral appliances, employs the use of piezoelectric actuators. Confocal microscopy used in ophthalmology for quality assurance of implants uses piezoelectric motors. Very precise motion of the optics is required to adjust the focal plane and for surface scanning. Piezoelectric positioning systems are integrated directly into the optics.

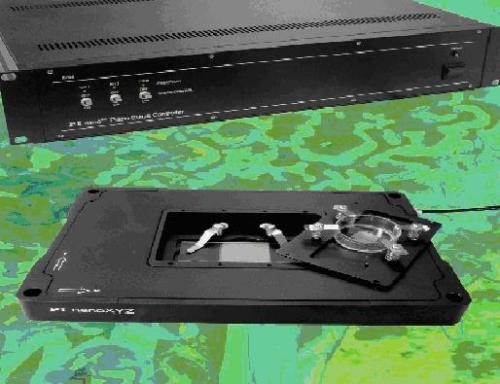

3D Piezoelectric Super Resolution Microscope Scanning Stage helps bio-researchers figure out the secrets of life.

3D Piezoelectric Super Resolution Microscope Scanning Stage helps bio-researchers figure out the secrets of life.

Electromagnetic devices dominate the drive mechanisms in medical equipment designs today. However, increasing accuracy requirements in the micron and nanometer ranges, along with an inclination to miniaturization, dynamics streamlining and interference immunity are pushing the physical limitations of electromagnetic drive systems. Piezoelectric motors are proving to be a viable alternative, finding their way into a growing number of medical device applications.


This information has been sourced, reviewed and adapted from materials provided by PI (Physik Instrumente) LP, Piezo Nano Positioning.
