Silicon carbide (SiC) mirrors are high-performance optical components known for their exceptional strength, thermal stability, and lightweight structure—making them ideal for demanding applications like large telescopes, high-speed scanning systems, and space missions.
In this article, we’ll explore the key properties of SiC mirrors, how they’re manufactured, and how Avantier supports custom SiC mirror production to meet specialized optical requirements.
High-Precision Silicon Carbide (SiC) Mirrors by Avantier | Advanced Optics for Space & Defense
Video Credit: Avantier Inc.
Properties of SiC Mirrors
SiC mirrors have a number of different advantages:
- High Strength and Stiffness: Exhibits excellent mechanical strength and stiffness, providing structural integrity even in demanding environments
- High Thermal Conductivity: Efficiently dissipates heat, making it ideal for maintaining optical performance in high-temperature settings
- Lightweight: With its low density, SiC is significantly lighter than traditional glass mirrors—a key advantage for space applications and large telescopes.
- Low Thermal Expansion: SiC’s low coefficient of thermal expansion helps maintain mirror accuracy across varying temperatures.
- Mechanical Strength: SiC is mechanically strong but can be brittle, so careful handling during manufacturing and integration is essential.
- Oxidation and Chemical Resistance: Resists oxidation and chemical degradation, ensuring long-term stability in harsh or reactive environments
- Thermal Shock Resistance: SiC mirrors can withstand rapid temperature changes, making them highly durable under thermal stress.
- Thermal Stability: Maintains performance in high-temperature environments, making it suitable for applications with significant temperature fluctuations
A Large SiC Mirror. Image Credit: Avantier Inc.

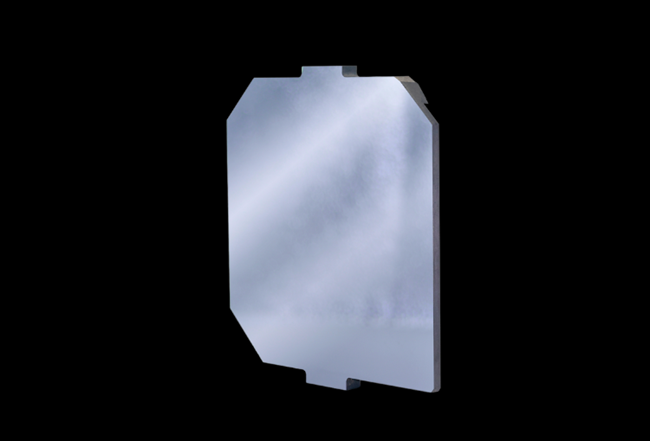

A Silicon Carbide Mirror (Front). Image Credit: Avantier Inc.

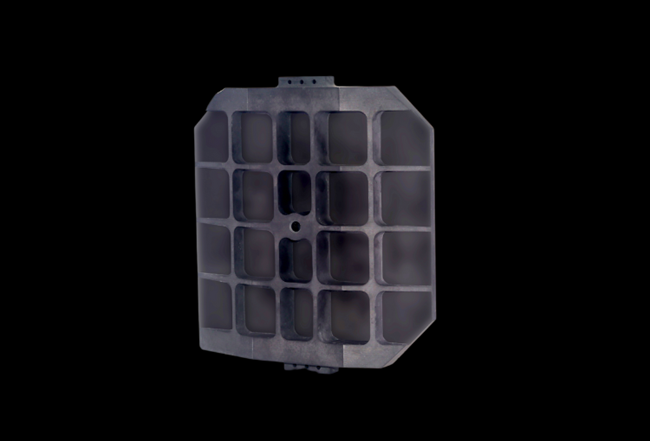

A Silicon Carbide Mirror (Back). Image Credit: Avantier Inc.
SiC Manufacture
There are three main methods employed to produce SiC for optical applications:
- Reaction Bonding: This technique involves casting a mixture of alpha SiC and carbon, followed by firing. Liquid silicon (Si) infiltrates the porous mixture, reacting with carbon to form dense SiC. Reaction-bonded SiC is cost-effective and suitable for lightweight optical designs.
- Sintering: SiC powder is sintered at high temperatures (greater than 2000 °C) with non-oxide sintering additives in an inert atmosphere and under high pressure. Sintered SiC produces a very hard ceramic appropriate for optical mirrors but necessitates extensive machining to achieve surface smoothness.
- Chemical Vapor Deposition (CVD): CVD is used to produce highly pure SiC in a face-centered cubic crystal structure. This form of SiC exhibits exceptionally high thermal conductivity but comes at a higher production cost.
The choice of the manufacturing method can influence the physical properties of the SiC, such as density and Young’s modulus.
Discover High Precision Optics: Silicon Carbide Mirror
Video Credit: Avantier Inc.
Discover High Precision Optics: Silicon Carbide (SiC) Mirror
Video Credit: Avantier Inc.
Manufacturing Challenges
Producing SiC mirrors comes with its share of challenges, but Avantier tackles them with proven strategies and technical expertise—ensuring each mirror meets the highest standards of quality and precision.
- Difficult Machinability: SiC's extreme hardness (approximately 9.5 on the Mohs scale) renders grinding and milling particularly challenging. Moreover, diamond cutting can be slow and costly.
- Achieving Ultra-Smooth Optical Surfaces: The grain structure and porosity of SiC may impede the attainment of ultra-smooth finishes, specifically those with less than 1 nm root mean square (RMS) roughness. To overcome this, Avantier utilizes advanced techniques such as chemical mechanical polishing (CMP).
- Thermal Stress and Coating Challenges: The disparity in thermal expansion between SiC and its coatings can result in stress and deformation.
- Cost and Scalability Issues: The cost of raw materials and processing SiC is higher than that of conventional materials, such as fused silica. Furthermore, the complexity of fabrication poses limitations on large-scale production.
Manufacturing Solutions
Advanced Fabrication Techniques
- Reaction Bonding: Si infiltrates a carbon preform to create a dense SiC structure.
- CVD SiC: This method produces high-purity SiC coatings with superior polishability.
- Hot Isostatic Pressing (HIP): This process enhances mechanical strength and improves surface finish.
Innovative Polishing Techniques
- Ion Beam Figuring (IBF): This technique enables nanometer-scale material removal, ensuring high precision.
- Magnetorheological Finishing (MRF): This non-contact polishing method attains sub-nanometer smoothness.
- Chemical Mechanical Polishing (CMP): This combines chemical etching with mechanical polishing for optimal results.
Thermal and Optical Coating Improvements
- Gradient Coatings: These coatings are designed to align with the thermal expansion properties of SiC, thereby reducing stress.
- Atomic Layer Deposition (ALD): This technique ensures that coatings are defect-free and uniform.
- Adhesion Layers: Intermediate layers, such as chromium (Cr) or Si, enhance the bonding of coatings.
Cost Reduction Strategies
- Hybrid Materials: By integrating SiC with carbon composites, Avantier can achieve lower costs.
- Additive Manufacturing (3D Printing): This method facilitates the cost-effective production of complex shapes.
By implementing these innovative approaches, Avantier aims to address the manufacturing challenges associated with SiC mirrors and deliver exceptional products.
Custom SiC Mirror Specifications
Source: Avantier Inc.
| . |
. |
| Size |
25 mm – 800 mm |
| Surface Shape |
Flat (typical), Sphere, Aspheric |
| Surface Flatness |
up to λ/100 RMS |
| Coatings |
Al, Ag, Au & High Laser Damage Threshold Dielectric Coatings as needed |
| Lightweight SiC Mirror Applications |
Telescopes, Laser Scanning Systems, Semiconductor and Lithography Systems, Defense and Military Applications, etc. |

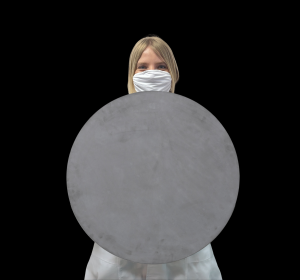

500 mm SiC Mirror (Front). Image Credit: Avantier Inc.

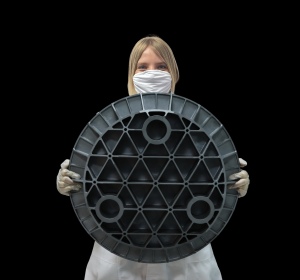

500 mm SiC Mirror (Back). Image Credit: Avantier Inc.
Custom Design Example 1
- Thickness: 100 mm
- Diameter: 500 mm
- Coating: 95 % reflectivity @ 400–12,000 nm

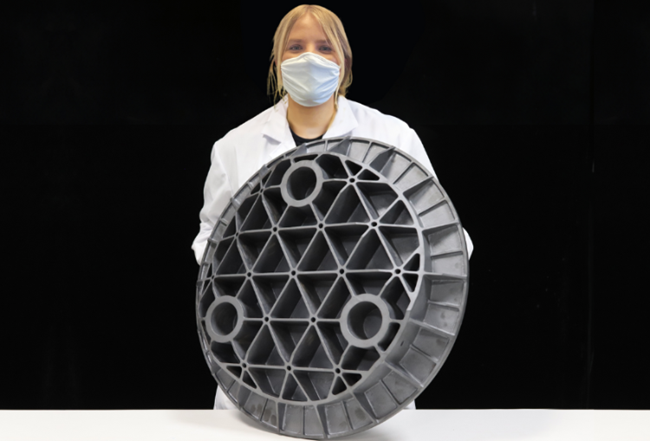

Silicon Carbide Mirror (Back). Image Credit: Avantier Inc.
Custom Design Example 2
- Length: 379 mm
- Width: 260 mm
- Thickness: 85 mm
- Dimension Tolerance: ±0.1 mm
- Surface Quality: 80-50
- Clear Aperture (CA): 90 %
- Surface Accuracy: RMSI < 16 nm
- Reflectance (Rabs): >95% @ 400-12,000 nm
- Angle of Incidence (AOI): 0-4.5°
- Coating: Protective gold
Custom SiC Mirrors at Avantier
SiC mirrors are essential components in high-performance optical systems, particularly in demanding environments such as space exploration, semiconductor lithography, and advanced defense applications.
At Avantier, the team specializes in custom SiC mirrors engineered to meet the precise specifications of each client—whether for large telescopes, high-speed scanning systems, or next-generation aerospace and photonics platforms.
While SiC mirror fabrication presents unique challenges, advancements in polishing techniques, hybrid mirror designs, and coating technologies have significantly expanded their capabilities.
Avantier combines precision machining with advanced metrology to deliver mirrors in a wide range of sizes, geometries, and optical coatings. As additive manufacturing and surface engineering continue to evolve, Avantier’s mirrors are ready to meet the needs of increasingly complex optical systems.
This information has been sourced, reviewed and adapted from materials provided by Avantier Inc.
For more information on this source, please visit Avantier Inc.
