Understanding Achromatic Lenses: Benefits, Drawbacks and When to Use Them

An achromatic lens - or achromat - is a highly specialized optical lens that can correct chromatic aberration; a type of image distortion that occurs when white light is refracted into different color wavelengths within the spectrum.

Chromatic aberration is a common issue in optical systems where white light passes through a single lens. As the light wavelengths traverse the lens material, these will undergo differential refraction due to their different optical properties.

These wavelengths will also converge at distinct focal points within the image plane, meaning it is impossible to focus all the colors simultaneously. This effect results in blurred color fringes between contrasting areas in an image, resulting in a prominent degradation of image quality.

Achromatic lenses are employed to address the challenges posed by chromatic aberrations. These optical components feature two or more strategically engineered lens elements, allowing them to align two specific wavelengths of light (generally red and blue) and allowing these to converge at a shared focal point.

This correction mechanism mitigates the unwanted effects of chromatic aberration, ensuring consistently enhanced color fidelity and image quality.

Achromatic Lenses

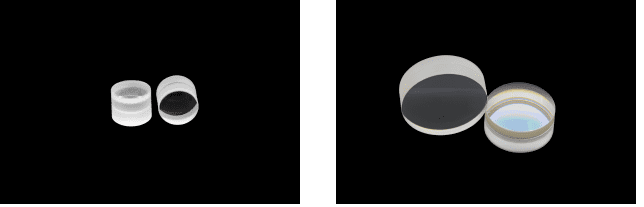

Achromatic Lenses. Image Credit: Avantier Inc.

Advantages of Achromatic Lenses

Achromatic lenses offer a number of distinct benefits.

Chromatic Aberration Correction

Achromatic lenses’ main role is the correction of chromatic aberration, a common optical issue that sees different colors of light focus at different points.

These lenses make use of two different lens elements - one with high dispersion and one with low dispersion – in order to sharpen images and improve their accuracy by minimizing chromatic aberration issues.

Improved Image Quality

A reduction in chromatic aberration is key to improving image quality in optical systems such as microscopes, telescopes, and camera lenses. This improvement is particularly prominent at high magnifications.

Wide Spectral Range

As achromatic lenses are effective over a broad spectral range, they can be employed in imaging applications across the visible spectrum, near-infrared and ultraviolet regions.

Versatility

Achromatic lenses are available in various shapes and sizes, with their versatility making them highly suited to a wide range of optical systems and applications. These lenses can be configured as doublets, triplets, or even aspheric lenses to meet specific application requirements.

Disadvantages of Achromatic Lenses

Achromatic lenses are also subject to some limitations, which should also be considered.

Limited Correction

Achromatic lenses are effective in reducing chromatic aberration, but it may not be possible to completely eliminate this. Residual chromatic aberration can still impact image quality, particularly when working with low-cost or less precise achromatic lenses.

Complex Manufacturing

The manufacture of achromatic lenses poses specific challenges because these lenses require the careful selection of materials with specific dispersion properties, precise alignment, and the proper cementing of lens elements. All of these requirements may lead to higher production costs.

Bulkiness

Achromatic lenses are typically comprised of multiple elements, potentially making them heavier and larger than simple lenses. This bulkiness may make achromatic lenses unsuitable for some applications.

When to Use Achromatic Lenses

Certain applications or use cases can benefit significantly from the use of achromatic lenses.

High-Quality Imaging

Achromatic lenses are an excellent option for applications that specifically require the capture of high-quality, color-corrected images. These lenses are frequently used in telescopes, microscopes, cameras, and other optical instruments where accurate color rendering is essential.

Reducing Color Distortion

Optical systems that exhibit noticeable color fringing or distortion can benefit from the use of achromatic lenses to help minimize these effects, resulting in clearer and more accurate images.

Broad Spectral Range

Applications such as spectroscopy or photography that are required to span a wide spectral range will typically employ achromatic lenses due to their ability to correct chromatic aberration across a wide range of wavelengths.

Precision Optical Systems

Applications such as scientific research, medical imaging, or aerospace that demand precise and controlled optical performance will often leverage the capabilities of achromatic lenses to ensure accurate results.

Cost Considerations

Achromatic lenses can be more costly than simple lenses, but these lenses still represent a cost-effective solution compared to complex corrective optics such as apochromatic lenses. Achromatic lenses remain the lens of choice in scenarios where cost is a consideration, but optical quality is still essential.

Conclusion

Achromatic lenses are valuable tools to correct chromatic aberration and improve image quality across a wide range of optical applications. These lenses are particularly advantageous where there is a need for color accuracy and performance across a broad spectral range.

As with any optical component, however, achromatic lenses’ suitability depends on the specific requirements and constraints of the optical system in question.

Acknowledgments

Produced from materials originally authored by Avantier Inc.

This information has been sourced, reviewed and adapted from materials provided by Avantier Inc.

For more information on this source, please visit Avantier Inc.
