Profilometers

A Profilometer is a measuring device used to measure relative surface roughness, peak to valley, in order to quantify its roughness.

Request a Quote for Profilometers

If you'd like us to help you source a Quotation for Profilometers please click here. Once submitted, we will try and place you in contact with a suitable Profilometers supplier within 48 hours.

Equipment

CCI Lite 3D Optical Profiler from Taylor Hobson

The Ultra Precision Benchtop 3D Optocal Profiler brings high performance optical measurements within the reach of both precision manufacturing and research companies. The Talysurf CCI Lite is an advanced type of measurement interferometer (a non contact 3D Profiler). It uses an innovative, patented correlation algorithm to find the coherence peak and phase position of an interference pattern produced by our precision optical scanning unit.

ContourGT-X8 Optical Profiler from Bruker

The ContourGT-X8 PSS provides highly repeatable, high-throughput, precision surface metrology of high-brightness light-emitting diode (HB-LED) patterned sapphire substrates (PSS).

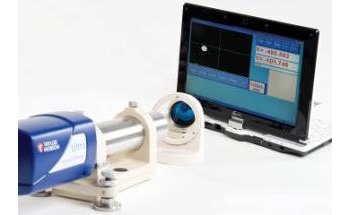

Ultra Dual Axis Digital Autocollimator from Taylor Hobson – For Straightness, Twist, Squareness, Parallelism, Flatness, Polygons and Indexing Tables

The new ultra dual axis autocollimator uses latest CCD technology and is a highly versatile instrument that offers high stability and accuracy over a broad application range. A tablet PC controls the digital autocollimator with a clear touch-screen software.

Veeco Wyko NT9100 Optical Profiler

The Wyko NT9100 Optical Profiling System provides cost-effective convenience and performance - including accurate surface topography with a small footprint -- for quality noncontact three-dimensional surface metrology. The Wyko NT9100 Optical Profile employs coherence scanning interferometry, also known as white-light interferometry, white-light confocal, or vertical scanning interferometry to produce high quality three-dimensional surface maps of the object under test.

Veeco Wyko HD9800 Optical Profiler for Data Storage

For low-cost, production-level non-contract process control monitoring, turn to the Wyko NT9100 Optical Profiling System. Automation for CCT and PTR delivers the throughput needed for advanced process control (APC), and improved illumination plus lower power consumption means greater cost-effectiveness.

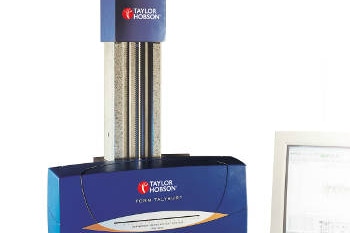

Form Talysurf PGI Optics - Premium Specification Measurement for Aspheric Optics from Taylor Hobson

The Form Talysurf PGI OpticsTaylor Hobson is a premium specification measurement system for the small to medium sized aspheric optics market. It has been developed for applications wherein optimum component quality and consistency cannot be compromised.

Form Talysurf PGI Dimension – Precision Optical Metrology from Taylor Hobson

The novel Talysurf PGI Dimension is a suitable dedicated metrology instrument that enables precision measurement of 3D form of steep and shallow aspherical lenses and moulds from less than 2mm and up to 200mm diameter.

Ambios Xi-100 Non-Contact Optical Profiler

The Xi-100 Non-Contact Optical Interferometer quickly and accurately measures the 3D topography of surfaces at the nanometer level. It is designed for the researcher who is interested in getting fast, repeatable date from an instrument that is not encumbered by unneeded levels of complication. Rapidly image areas in scale from microns to millimeters and the only instrument adjustments are sample position and focus.

Form Talysurf PGI 840 – High-Precision Metrology for Integration with Machining for Aspheric Optics from Taylor Hobson

Ultra-high precision processes such as single-point diamond turning enable aspheric lenses to be manufactured with small tolerances down to small fractions, reducing wave front aberrations to insignificant levels.

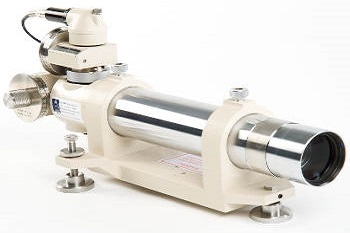

TA51 Visual Autocollimator from Taylor Hobson

The TA51 has a broad range and also maintains a high measurement accuracy. This system is popular in measurement and also in calibrating indexing heads and other angular devices such as polygons and clinometers.

Veeco Wyko SP9900 Optical Profiler

For superior measurement performance and capability on substrate panels, bumped substrates, flat panels, and circuit boards, the Wyko NT9100 Optical Profiling System is ideal. Cut measurement time in half, and use the Wyko SP9900 surface profile to improve profiling precision, speed, reliability, serviceability and manufacturing readiness for large-format applications.

Solarius LaserScan Surface Profilometer

The LaserScan is a surface profilometer for fast 3D laser measurement in quality assurance and process control. It represents a significant step to providing affordable non-contact surface profilometry without sacrificing accuracy. The key to the system design is the modularity of component selection.

CCI HD Ultra Precision 3D Optical Profiler from Taylor Hobson

The novel CCI HD precision 3D optical profiler combines excellent non-contact dimensional measurement capability with advanced thin and thick film technology. The optical profiler features easy and quick high resolution measurement.
