HiperScan GmbH, the
company for high performance scanning technologies is presenting their Scanning
Grating Spectrometers at PittCon Exhibition 2008, March 2-7 at New Orleans.
Scanning Grating Spectrometers (SGS) are compact and rugged near-infrared spectrometers
that are designed as versatile OEM spectrometers for high throughput in quality
control including incoming/outgoing inspection, routine inspection and process
control in all industry branches like food, forage, polymers, recycling, chemical
and pharmaceuticals.
<
 |

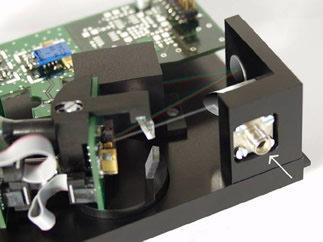

| NIR-Spectrometer SGS-1900 Scanning Grating Spectrometer System |
The new SGS2500 features a broad spectral range from 1,300 nm to 2,500 nm that
is
scanned with over 3,000 samples in 10 ms at 13 nm spectral resolution by a 2-stage
TE-cooled InGaAs-detector. The SGS1900 has been extended to the spectral range
from
1,000 nm to 1,900 nm. Especially at the upper end this includes the important
range
of first overtones of lots of substances that can then be identified or quantified
by means of multivariate analysis. The SGS1900 is thus superior to the common
devices with their limits at 1,700 nm.
Both, SGS2500 and SGS1900, have SMA fiber connectors, but direct coupling is
also
possible due to very good stray light suppression. Their compact size, ruggedness
and low power consumption recommend the use in mobile applications. The standard
data interface uses USB. Ethernet or RS232 can be provided on request. Software
includes SpectraCon for Windows, a myInstruments driver and a document DLL for
direct coupling to any software.
HiperScan is a spin-off company of the Fraunhofer IPMS, which is well known
for
advanced research and development services for spectroscopic and other sensing
systems and process automation.
HiperScan and Fraunhofer IPMS will show spectrometers and applications at PittCon
2008 (2-7 March 2008, in New Orleans, Stand 6927).
